Lower Arm: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

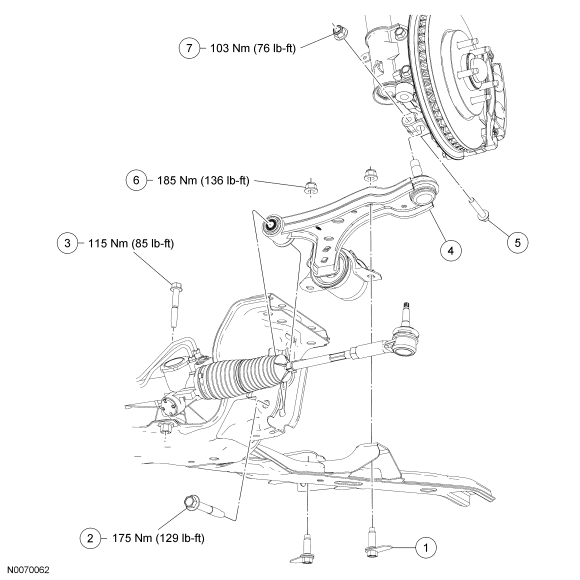

4.0L and 4.6L shown, 5.4L similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W710141 | Lower arm rearward flag bolt (2 required) |
| 2 | W709865 | Lower arm forward bolt |
| 3 | W710909 | Steering gear bolt (2 required) |
| 4 | 3079 LH/ 3078 RH | Lower arm |
| 5 | W711123 | Lower ball joint bolt |
| 6 | W520215 | Lower arm rearward nut (2 required) |
| 7 | W520214 | Lower ball joint nut |
