Stabilizer Bar: Notes

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

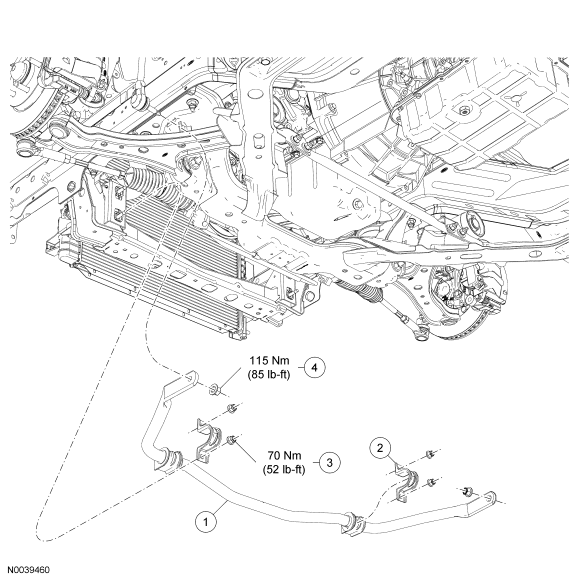

Fig 1: Exploded View Of Stabilizer Bar With Torque Specifications
GF0000727Courtesy of FORD MOTOR CO.
Item Part Number Description
1 5482 Stabilizer bar
2 5486 Stabilizer bar bracket (2 required)
3 W520213 Bracket nut (4 required)
4 W520214 Stabilizer bar link lower nut (2 required)
