Rear Lamp Assembly: Notes

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

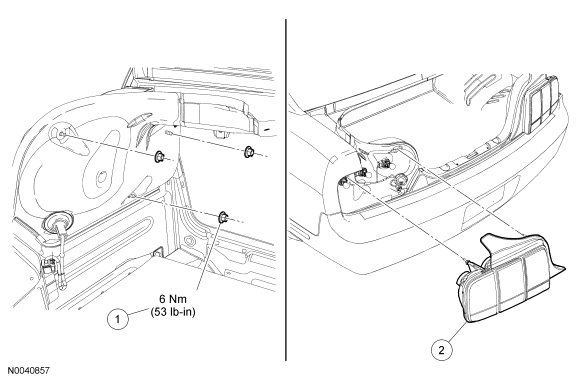

Fig 1: Exploded View Of Rear Lamp Assembly With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N621926-S424	Rear lamp mounting nuts (3 required)
2	13B404/13B405	Rear lamp assembly (RH/LH)
