Removal And Installation: Clockspring: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

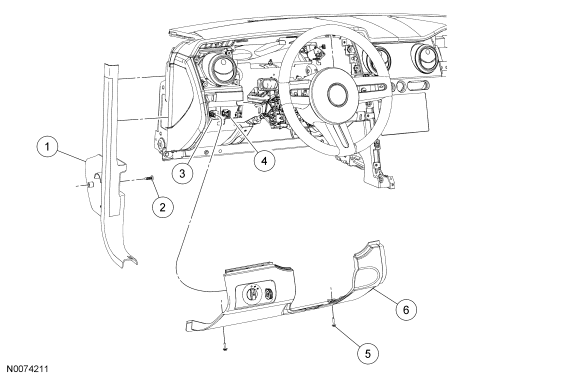

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
A30A64 |
LH A-pillar lower trim panel |
| 2 |
W505156 |
LH A-pillar lower trim panel screw |
| 3 |
- |
Headlamp switch electrical connector (part of 14401) |
| 4 |
- |
Courtesy lamp switch electrical connector (part of 14401) |
| 5 |
W505156 |
Steering column opening cover screw (2 required) |
| 6 |
04459 |
Steering column opening cover |

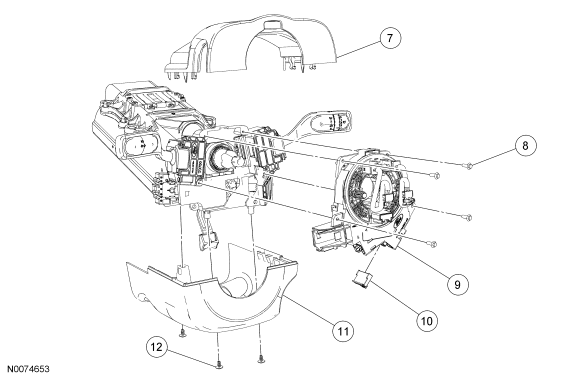

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 7 |
3530 |
Upper steering column shroud |
| 8 |
- |
Clockspring screw (part of 14A644) (4 required) |
| 9 |
14A644 |
Clockspring |
| 10 |
- |
Clockspring electrical connector (part of 14401) |
| 11 |
3K512 |
Lower steering column shroud |
| 12 |
W504041 |
Lower steering column shroud screw (3 required) |
