Upper Arm: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

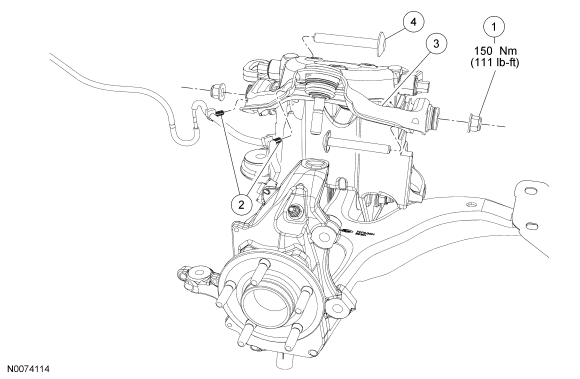

| Item |
Part Number |
Description |
| 1 |
W520215 |
Upper arm nut (2 required) |
| 2 |
- |
Wheel speed sensor harness retainers (2 required) |
| 3 |
3084 RH/ 3091 LH |
Upper arm |
| 4 |
3A358 |
Upper arm bolt (2 required) |
