Seat - Exploded View, Front

WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Driver seat shown in illustration, passenger seat similar.
NOTE: Front 50 percent seat shown in illustration, 40 percent seat similar.
NOTE: The torque specification for power recliner-to-seat track bolts is shown in illustration. For manual recliner-to-seat track bolts, tighten to 55 Nm (41 lb-ft). For additional information, refer to the appropriate procedure steps.
Fig 1: Exploded View Of Front Seat Backrest With Torque Specifications
GF0013102Courtesy of FORD MOTOR CO.
Item Part Number Description
1 611A08 Head restraint assembly
2 610A18 Head restraint guide (2 required)
3 60770 Seat back trim panel (police only)
4 - Seat back trim panel screw (2 required, police only)
5 64416 Backrest trim cover
6 64810 Backrest foam pad
7 14D696 Backrest heater mat (if equipped)
8 - Electrical connector (if equipped, part of 14D696)
9 62648 RH/ 62649 LH Recliner assembly (power shown in illustration, if equipped)
10 N803463 Recliner-to-seat track bolt (2 required)
11 61198 Recliner handle
12 N803463 Recliner-to-backrest frame bolt (2 required)
13 - Electrical connector (if equipped)
14 611D10 Side air bag module (if equipped)
15 N620480 Side air bag module nuts (2 required, if equipped)
16 14716 Side air bag module wiring harness (if equipped)
17 N808123 Pivot bolt
18 65500 Lumbar assembly, power (if equipped)
19 - Electrical connector (if equipped)
20 - Lumbar support
21 61018 Backrest frame
NOTE: Driver seat shown in illustration. For disassembly and assembly of the passenger seat cushion, refer to Occupant Classification Sensor procedure in SUPPLEMENTAL RESTRAINT SYSTEM article.
NOTE: Front 50 percent seat shown in illustration, 40 percent seat similar.
NOTE: The torque specification for power recliner-to-seat track bolts is shown in illustration. For manual recliner-to-seat track bolts, tighten to 55 Nm (41 lb-ft). For additional information, refer to the appropriate procedure steps.

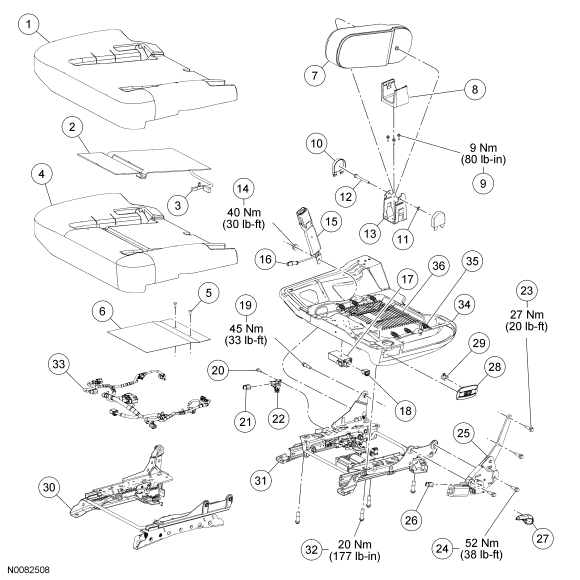

Fig 2: Driver cushion
GF0046610Courtesy of FORD MOTOR CO.
Item Part Number Description
1 62900 Cushion trim cover
2 14D696 Cushion heater mat (if equipped)
3 - Electrical connector (if equipped, part of 14D696)
4 632A22 Cushion foam pad
5 - Pushpin
6 - Mat
7 65478/644A18 Armrest pad/cover (if equipped)
8 672A32 Armrest cover trim (if equipped)
9 N611624 Armrest bracket bolt (3 required, if equipped)
10 672A28 Pin cover (2 required, if equipped)
11 W623464 Retaining clip (if equipped)
12 65476 Pin (if equipped)
13 63076 Armrest bracket (if equipped)
14 - Nut, safety belt buckle
15 61202 RH/ 61203 LH Safety belt buckle
16 - Electrical connector
17 14C724 Heated seat module (if equipped)
18 - Electrical connector
19 N808123 Pivot bolt
20 - Bolt, seat position sensor (driver only)
21 - Electrical connector (driver only)
22 - Seat position sensor (driver only)
23 N803463 Recliner-to-backrest bolt (2 required)
24 N803463 Recliner-to-seat track bolt (2 required)
25 62648 RH/ 62649 LH Recliner, power (if equipped)
26 - Electrical connector (part of 14A699, if equipped)
27 61198 Recliner handle, manual
28 - Lumbar control switch
29 - Electrical connector
30 61704 RH/ 61705 LH Manual seat track
31 61710 Power seat track
32 N802906 Seat track-to-cushion frame bolt (4 required)
33 14A699 Seat wiring harness
34 63100 Cushion frame
35 603A06 Cushion support spring (6 required)
36 63226 Seat cushion support
  1. For additional information, refer to the appropriate procedures.
