Ignition Lock Cylinder - Functional: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

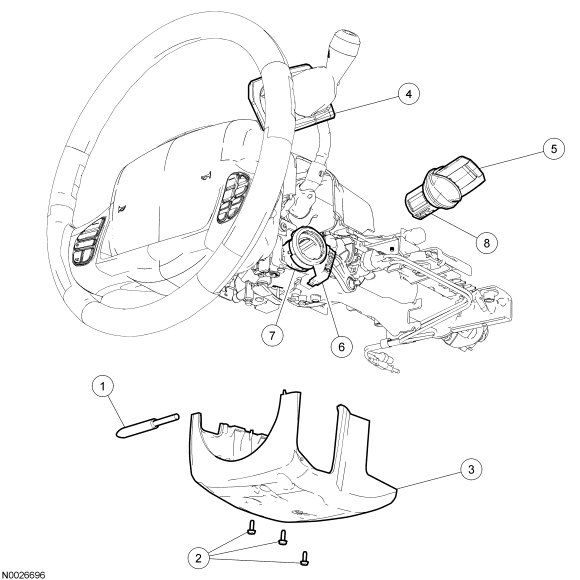

| Item | Part Number | Description |
|---|---|---|
| 1 | 3F609 | Tilt wheel handle and shank |
| 2 | 55929 | Lower steering column shroud screws (3 required) |
| 3 | 3530 | Lower steering column shroud |
| 4 | - | Shift selector boot |
| 5 | - | Ignition key |
| 6 | 15607 | Passive anti-theft (PATS) transceiver |
| 7 | - | Ignition lock cylinder release pin (part of 11582) |
| 8 | 11582 | Ignition lock cylinder |
