Axle Assembly: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

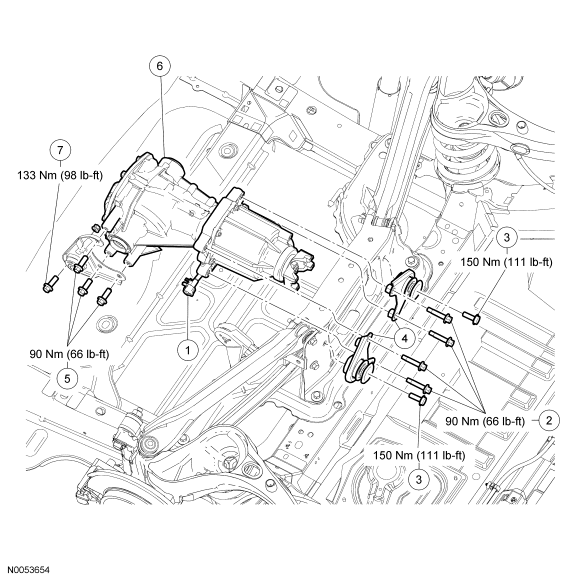

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Electrical connector (part of 14405) |
| 2 | W506540-S | Differential housing-to-front insulator bracket bolts (4 required) |
| 3 | W706356-S | Front insulator bracket-to-subframe bolts (2 required) |
| 4 | 4K360 | Front insulator brackets |
| 5 | W500043-S | Side insulator bracket-to-rear axle differential bolts (3 required) |
| 6 | 5L84 | Rear axle assembly |
| 7 | W706356-S | Rear differential mount-to-subframe bolt and nut |
