Passenger Seat Position Sensor Connector - C3240

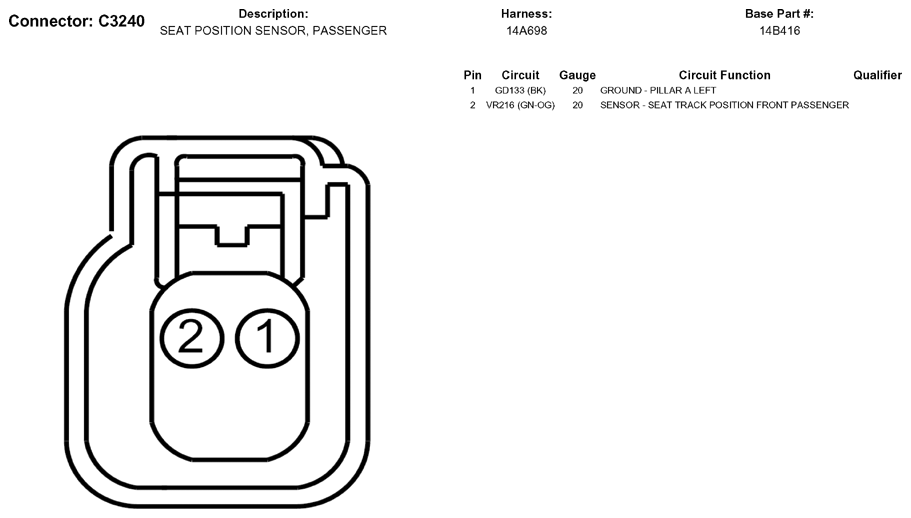

Fig 1: Passenger Seat Position Sensor Connector End View (C3240)
G05790172Courtesy of FORD MOTOR CO.
