Safety Belt Retractor - Rear, Center, Taurus X: Notes

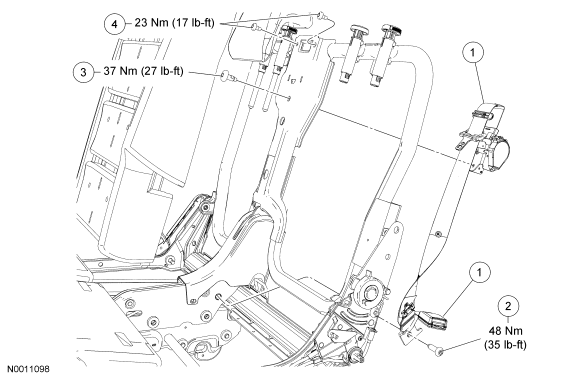

Fig 1: Exploded View Safety Belt Retractor With Torque Specifications - Rear, Center, Taurus X
GF0016699Courtesy of FORD MOTOR CO.
Item Part Number Description
1 60026 Safety belt retractor and safety belt buckle assembly
2 - Safety belt anchor bolt
3 W704400 Safety belt retractor bolt
4 - Inner safety belt guide bolts
