Communications Control Module
>>
C3338 Accessory Protocol Interface Module (APIM)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

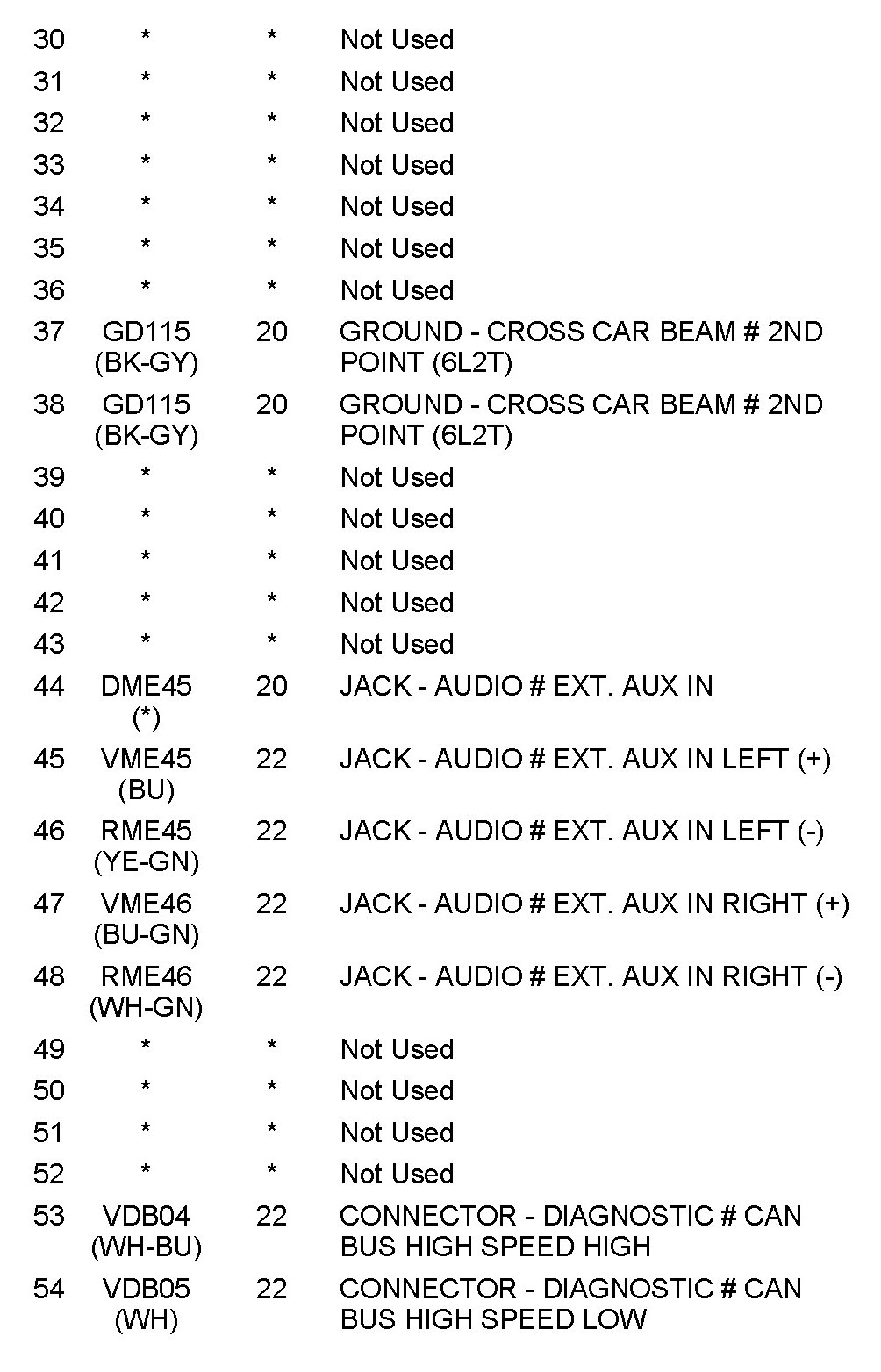

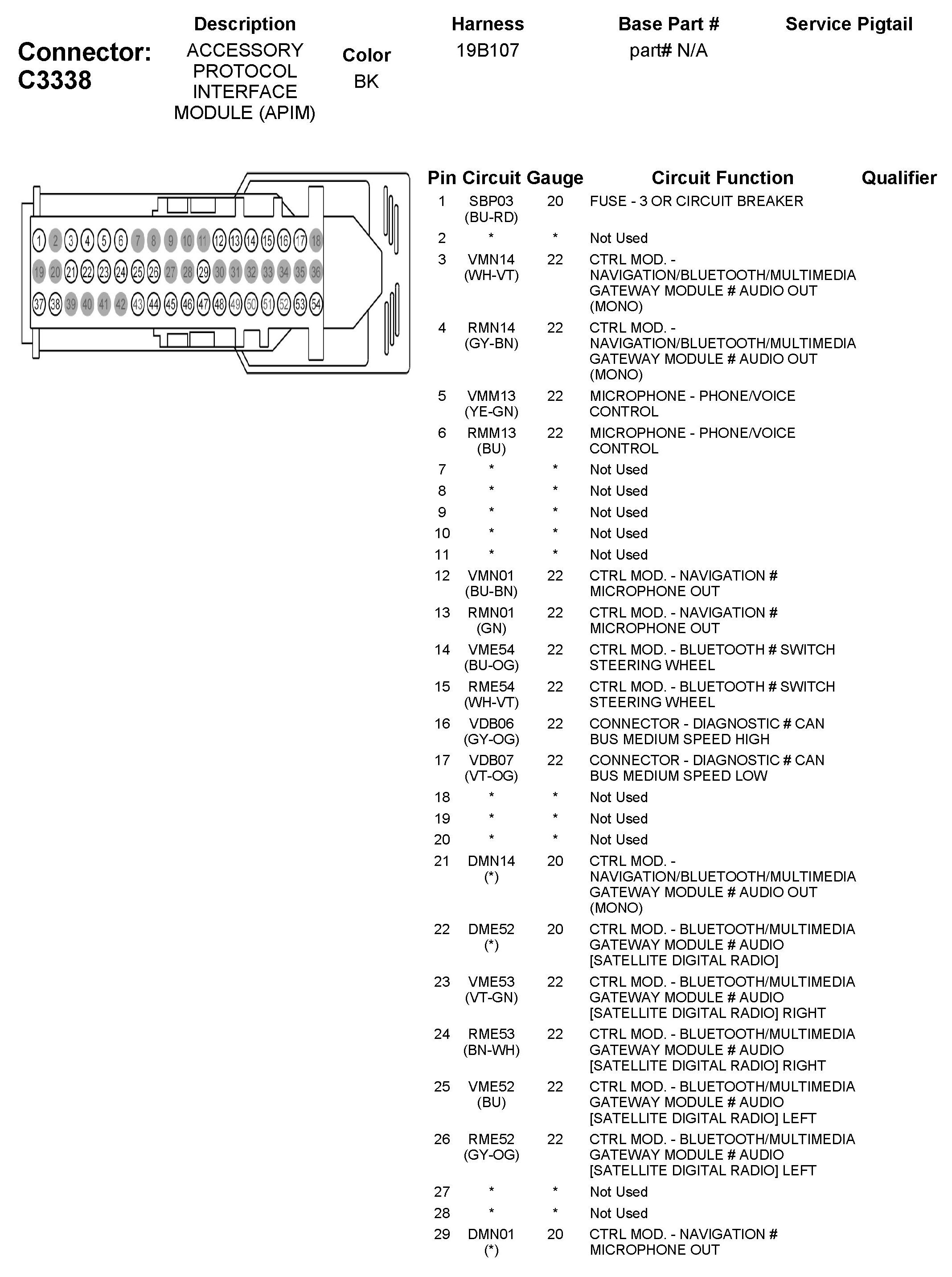

C3338 Accessory Protocol Interface Module (APIM)
