Home >> Mercury >> 2011 >> Mariner 2WD L4-2.5L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC >> C2356A HVAC Module-DATC
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

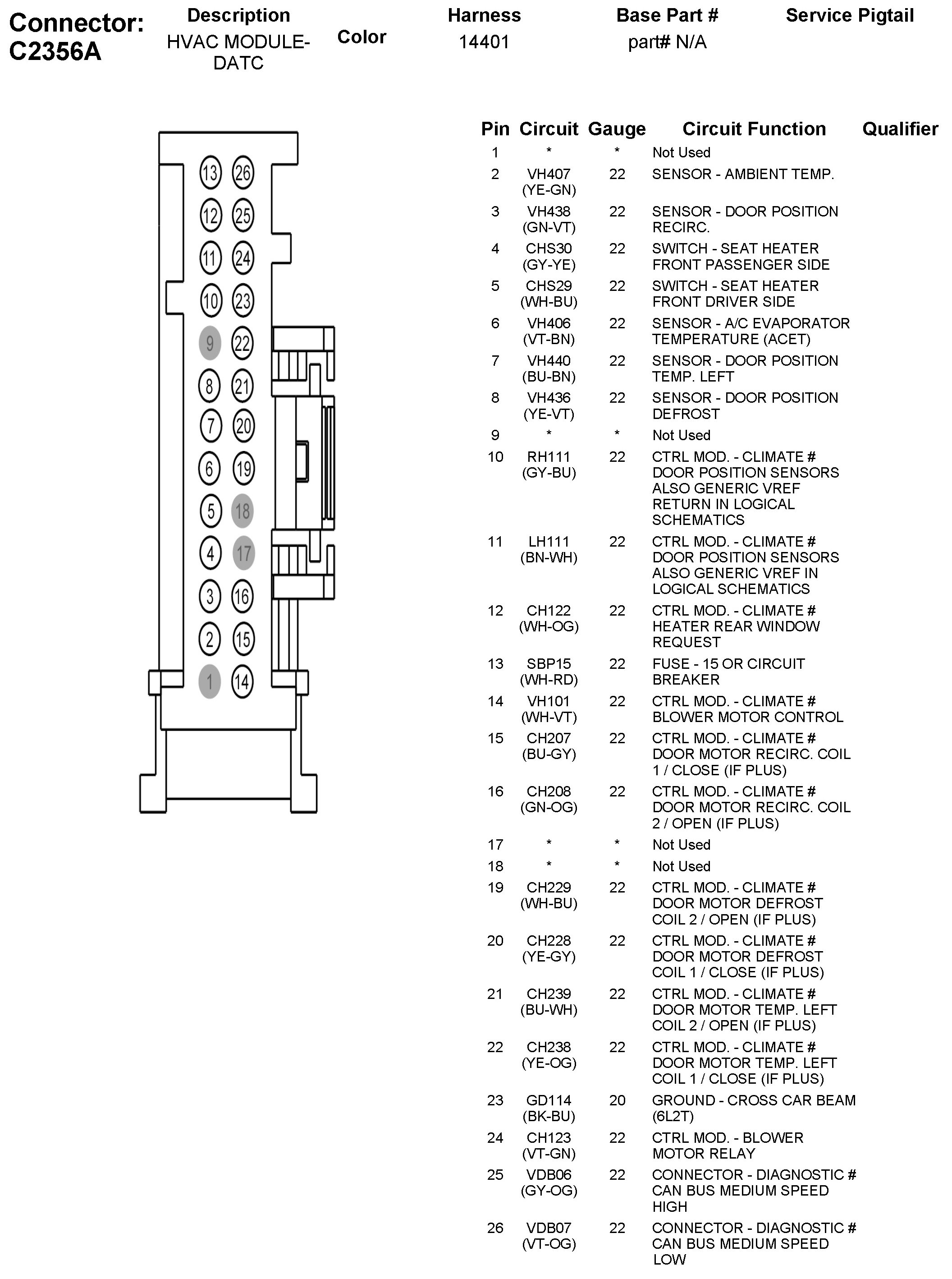

C2356A HVAC Module-DATC
