Power Mirror Switch: Service and Repair




Exterior Mirror Control Switch









Removal and Installation

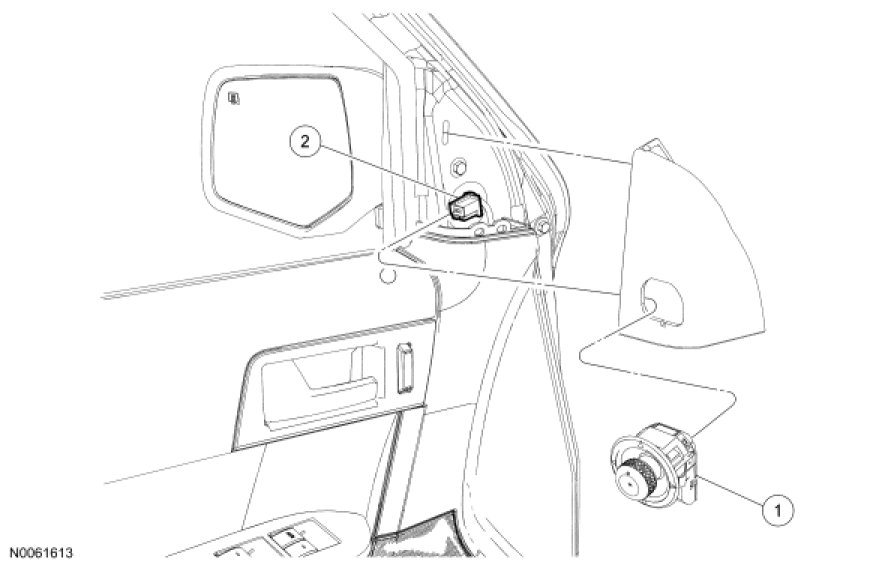

1. Remove the LH sail panel.
- Disconnect the electrical connector.

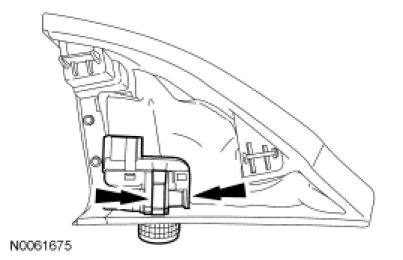

2. Remove the exterior mirror control switch.
- Press the 2 retaining tabs.





3. To install, reverse the removal procedure.
