Camshaft Position Sensor: Service and Repair

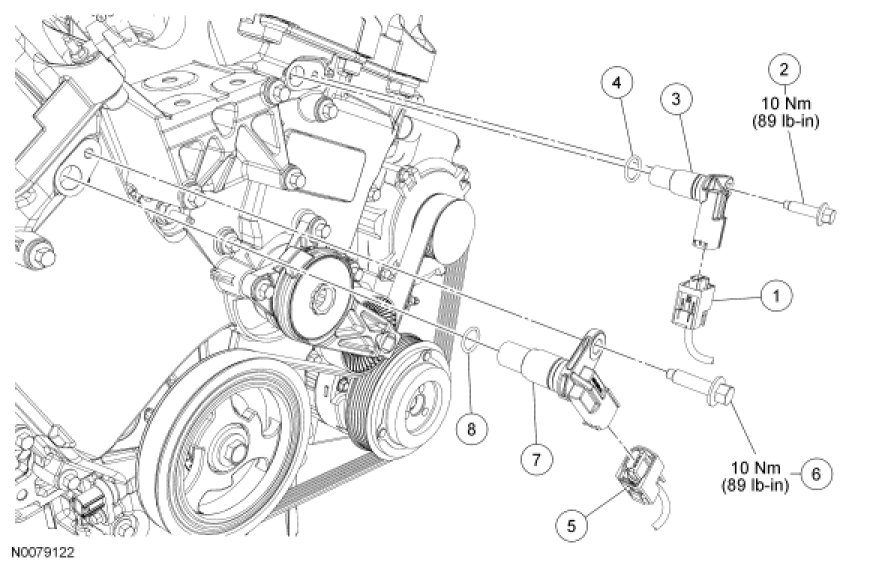

Camshaft Position (CMP) Sensor













1. Disconnect the Camshaft Position (CMP) electrical connector.

2. Remove the bolt and the CMP sensor.
- To install, tighten to 10 Nm (89 lb-in).

3. NOTE: Lubricate the CMP O-ring seal with clean engine oil.

To install, reverse the removal procedure.
