2.5L, 2.5L Hybrid and 3.0L Vehicles

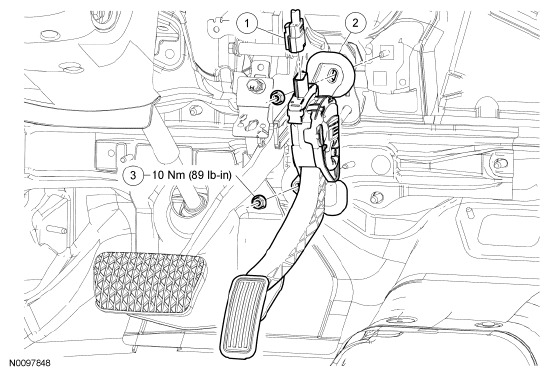

Fig 1: Exploded View Of Accelerator Pedal And Sensor Assembly Components With Torque Specifications (2.5L, 2.5L Hybrid And 3.0L Vehicles)
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Accelerator pedal sensor electrical connector |
| 2 | 9F836 | Accelerator pedal and sensor assembly |
| 3 | W706131 | Accelerator pedal and sensor assembly nut (2 required) |
3.5L Vehicles
Fig 2: Exploded View Of Accelerator Pedal And Sensor Assembly Components With Torque Specifications (3.5L Vehicles)
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Accelerator pedal sensor electrical connector |
| 2 | 9F836 | Accelerator pedal and sensor assembly |
| 3 | W706131 | Accelerator pedal and sensor assembly nut (2 required) |
