Side Air Bag Module: Notes
WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

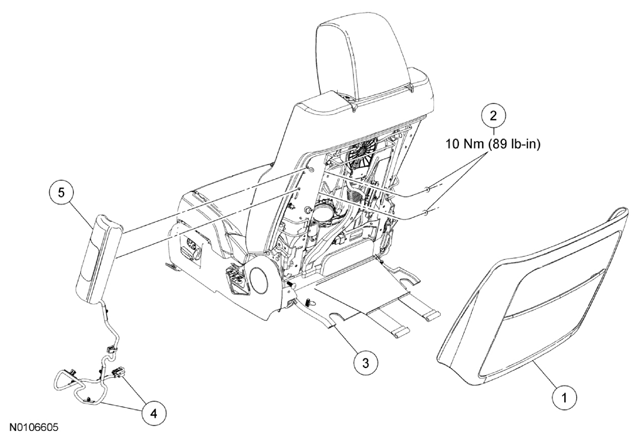

Driver seat shown in illustration, passenger similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 611A08 | Backrest panel |
| 2 | W520111 | Side air bag module nuts (2 required) |
| 3 | 644K64 | Carpet flap toe-kick |
| 4 | - | Side air bag module electrical connector (part of 611D11) |
| 5 | 611D11 | Side air bag module |
