Home >> Mercury >> 2011 >> Milan FWD L4-2.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Communications Control Module >> C4235B Audio Digital Signal Processing (DSP) Module
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

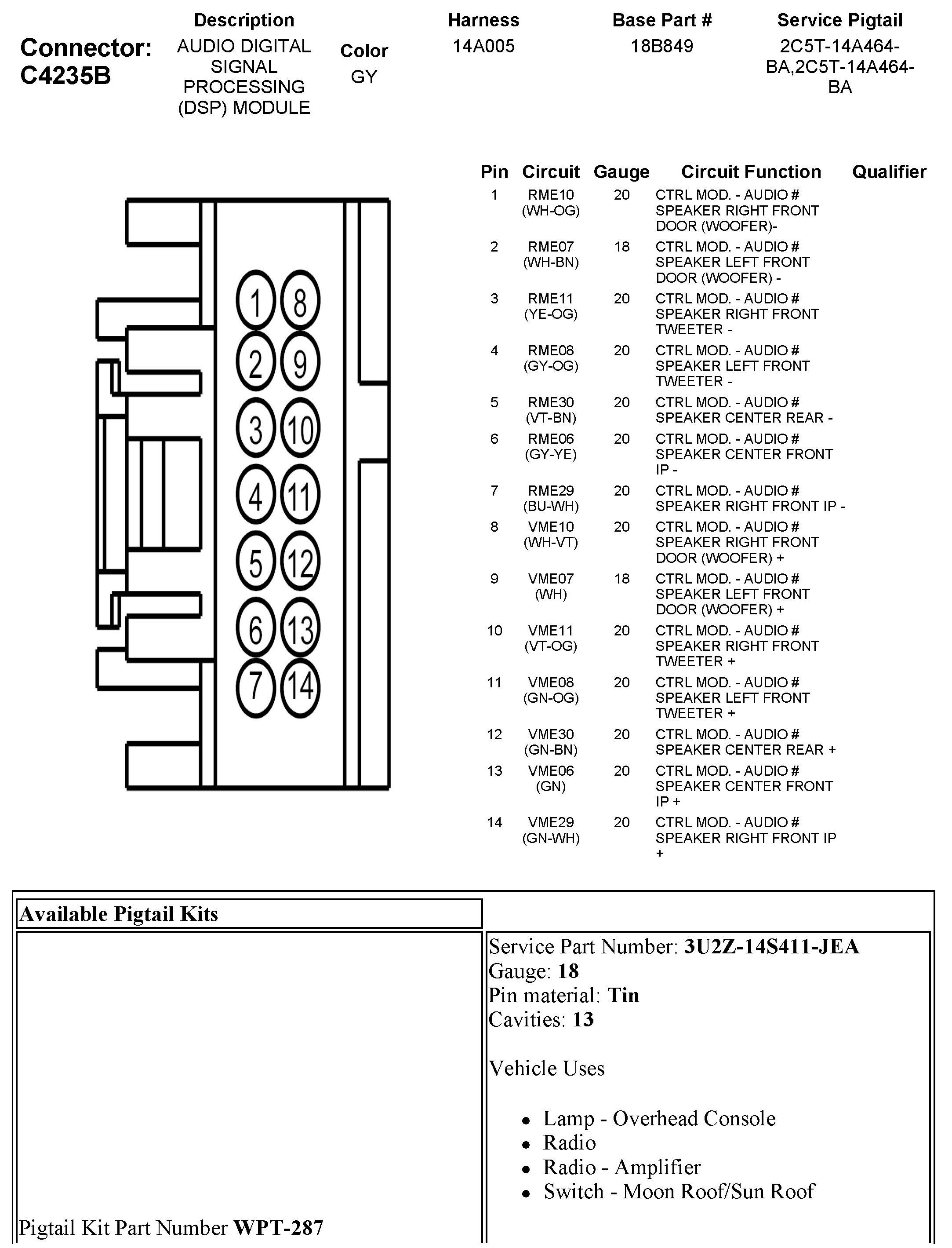

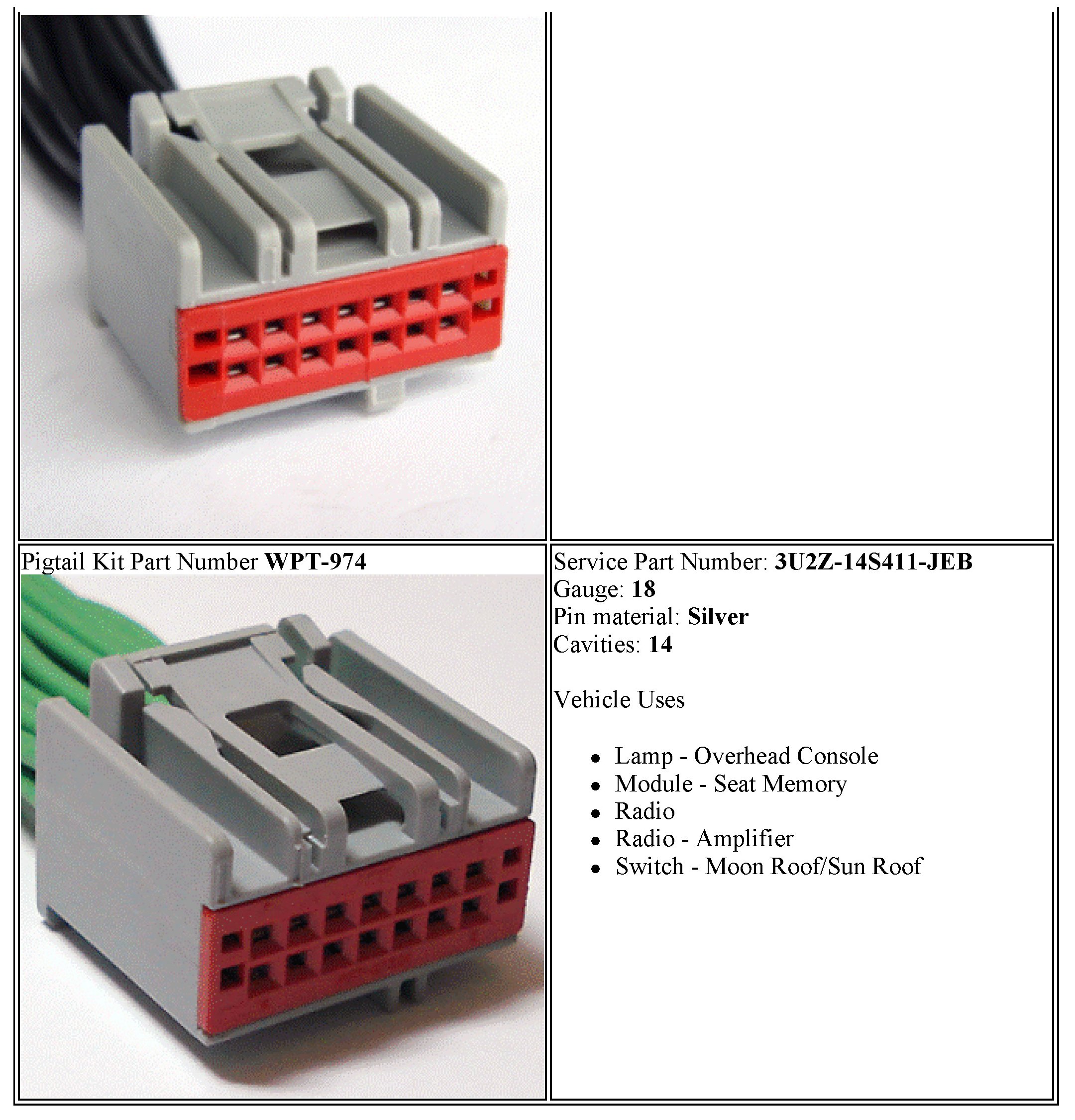

C4235B Audio Digital Signal Processing (DSP) Module
