Home >> Mercury >> 2011 >> Milan FWD L4-2.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Interior Lighting Module >> C2301 Interior Lighting Control Module (ILCM)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

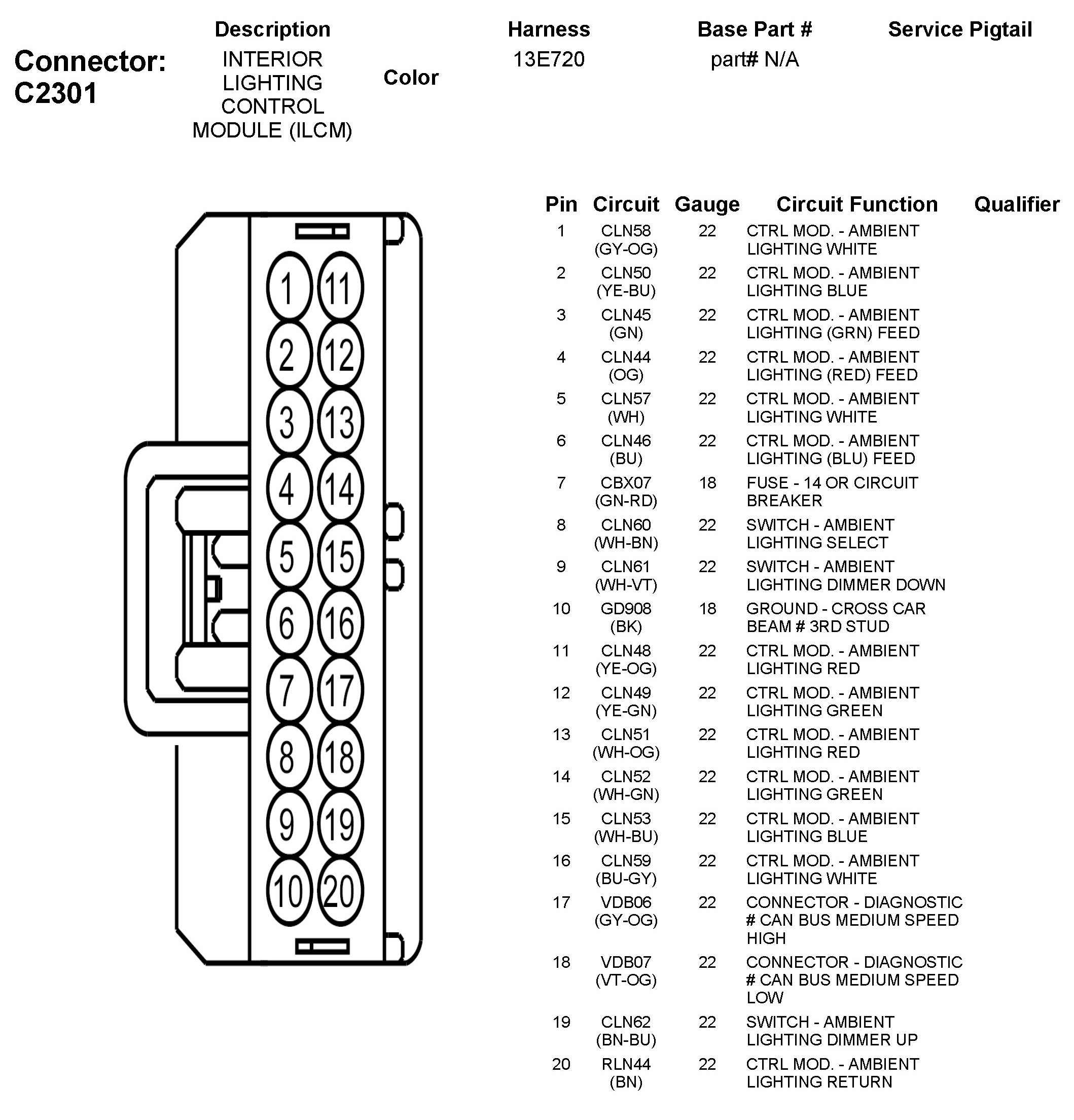

C2301 Interior Lighting Control Module (ILCM)
