Test QE: Electronic Throttle Control (ETC) System
PINPOINT TEST QE: ELECTRONIC THROTTLE CONTROL (ETC) SYSTEM

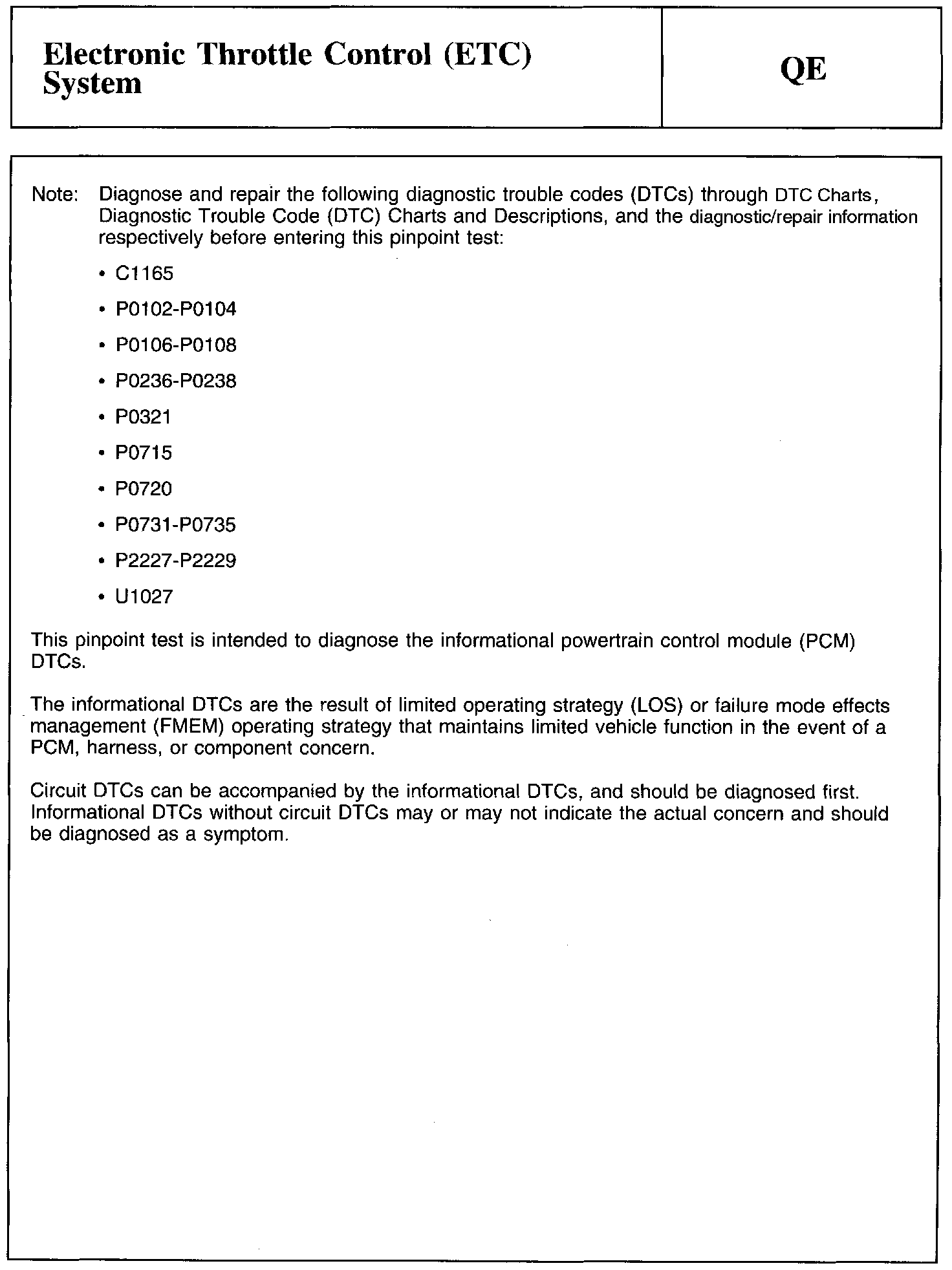

Note:

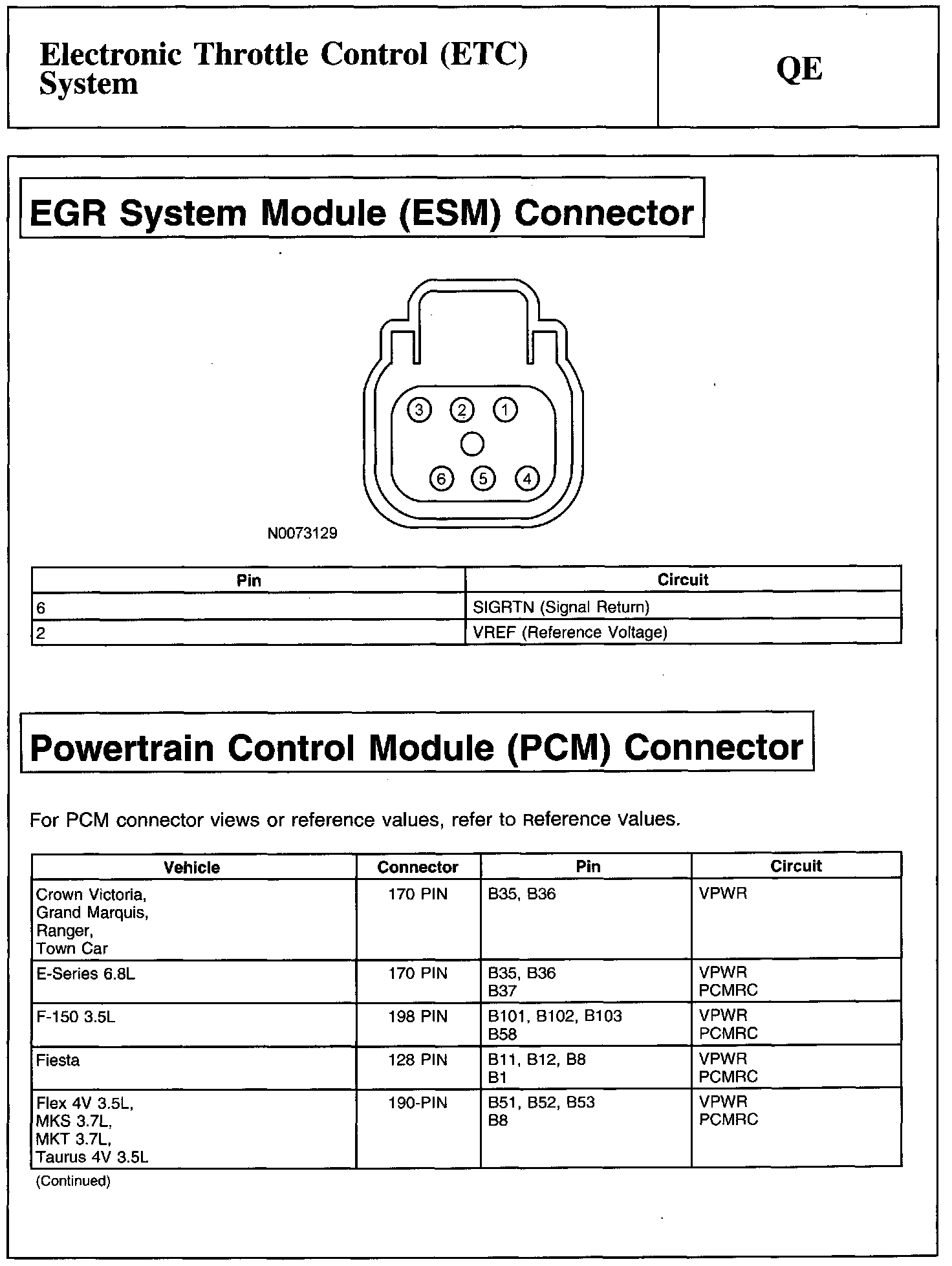

EGR System Module (ESM) Connector And Powertrain Control Module (PCM) Connector:

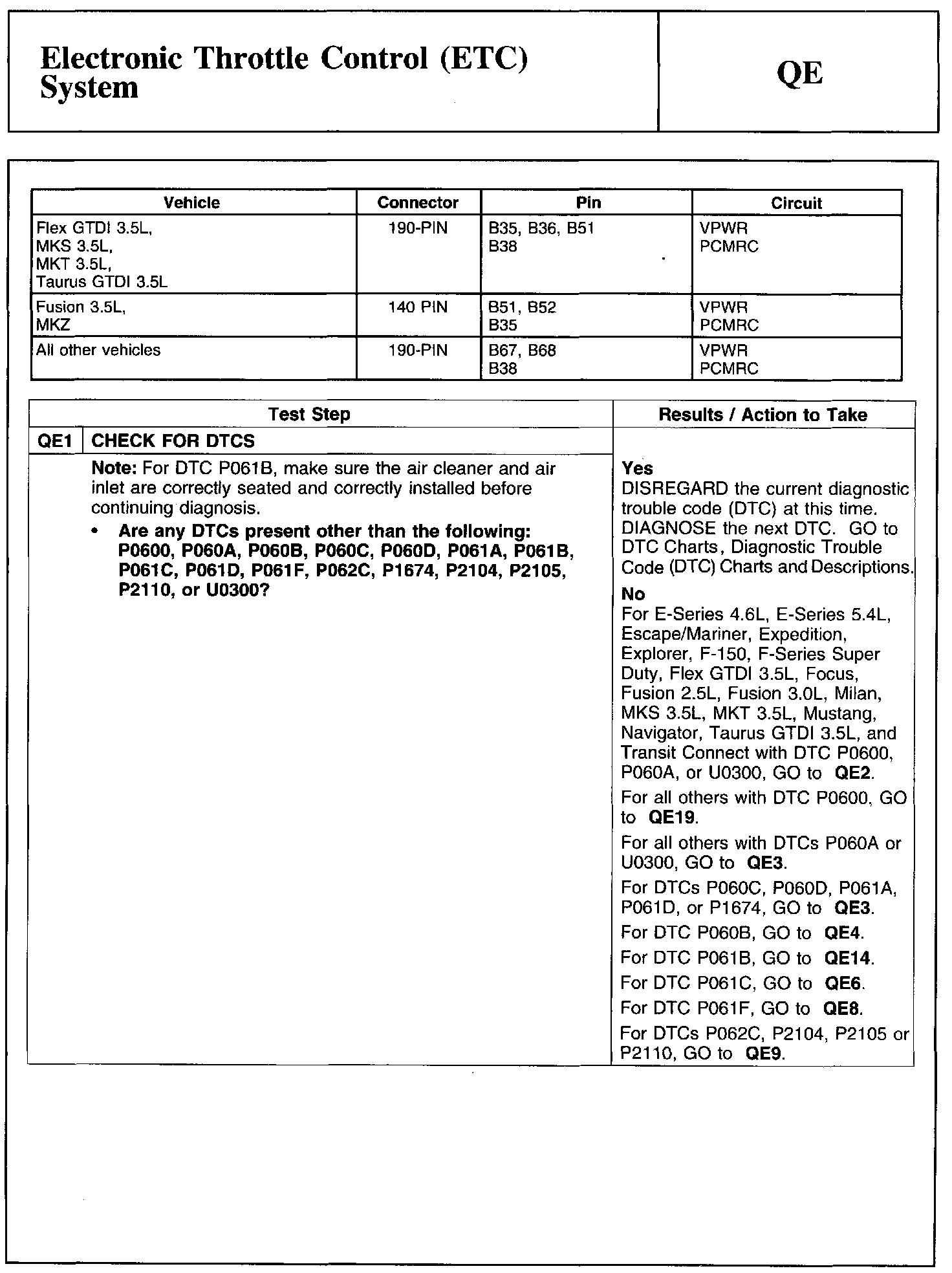

QE1:

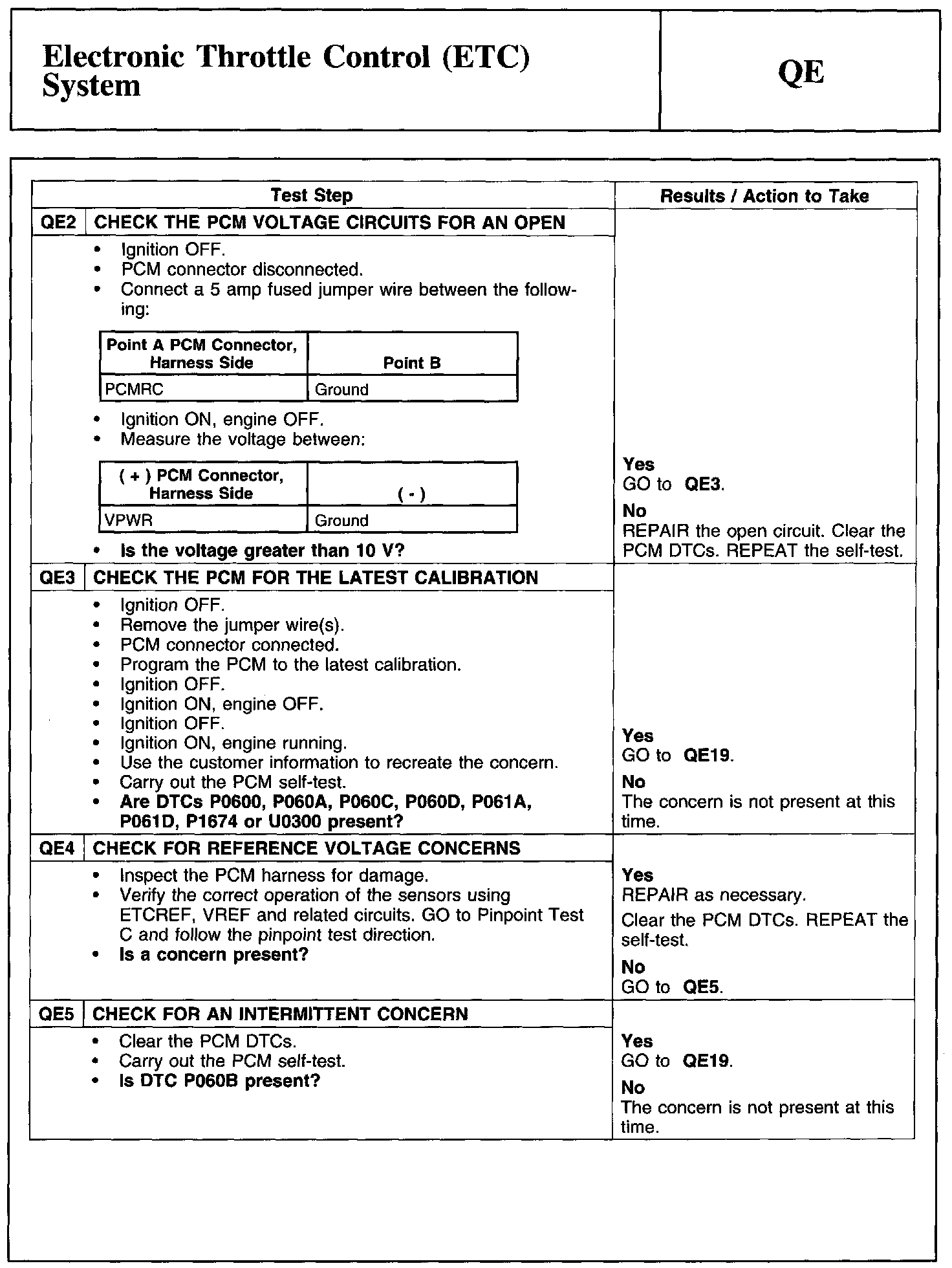

QE2-QE5:

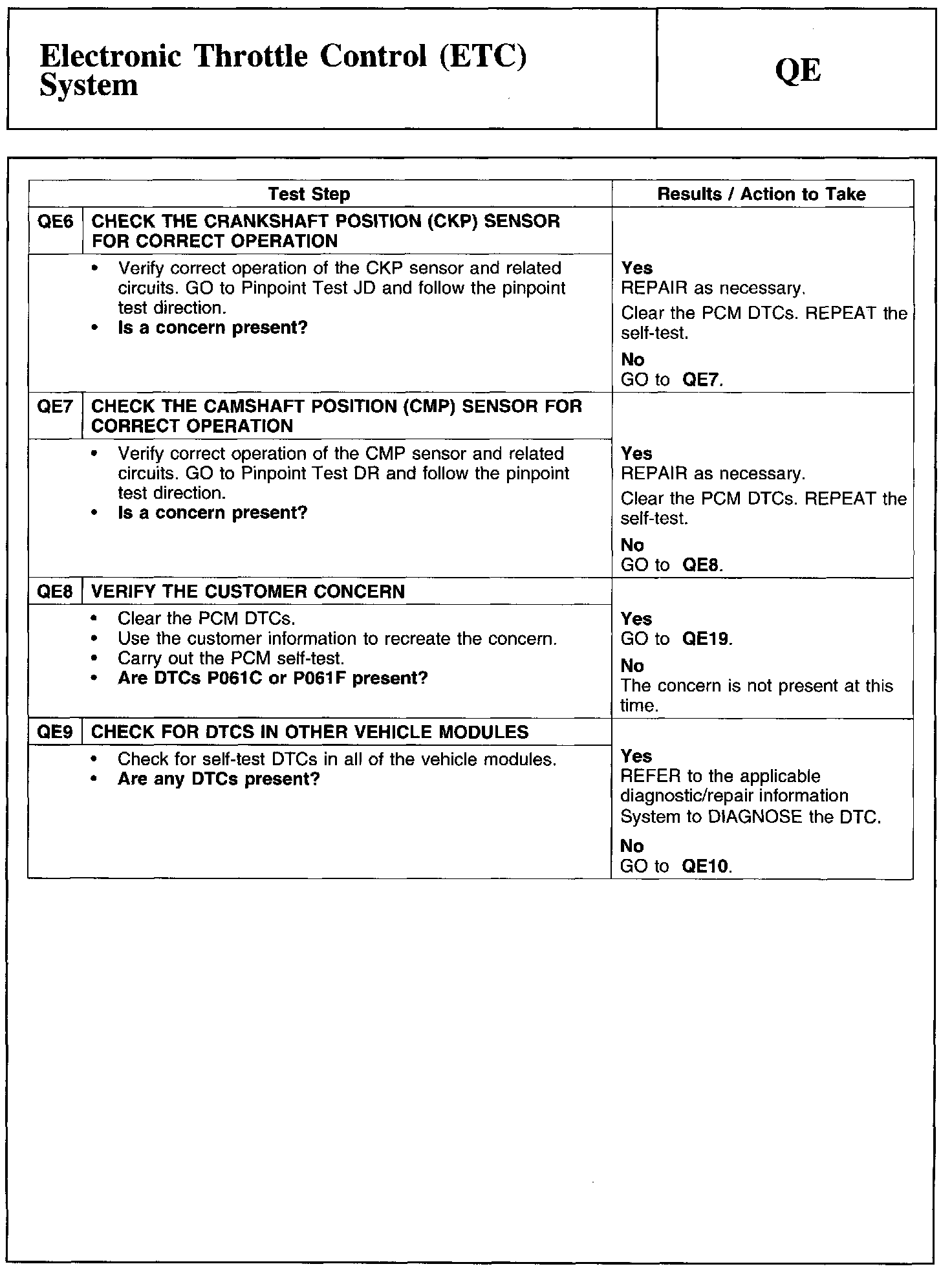

QE6-QE9:

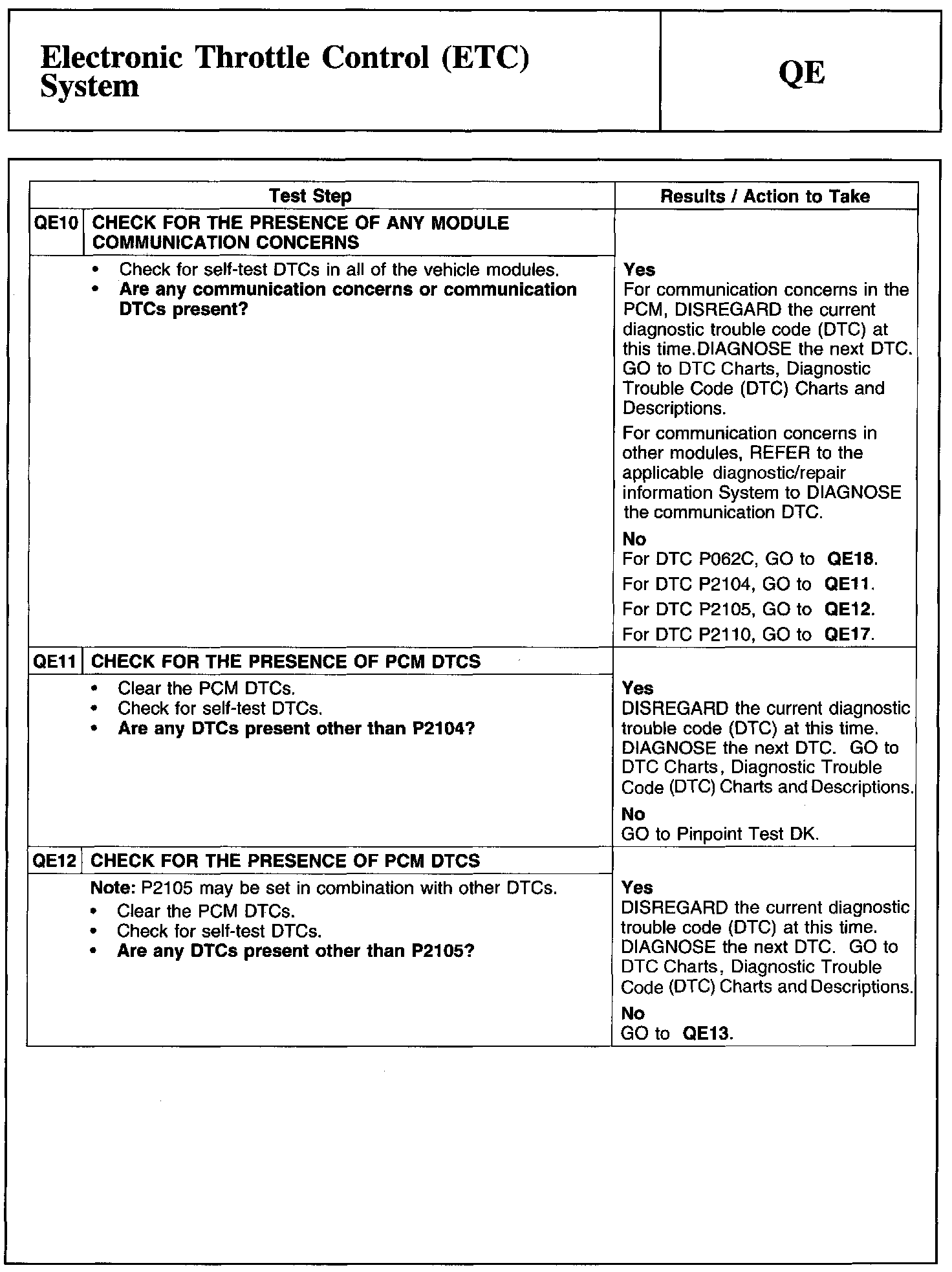

QE10-QE12:

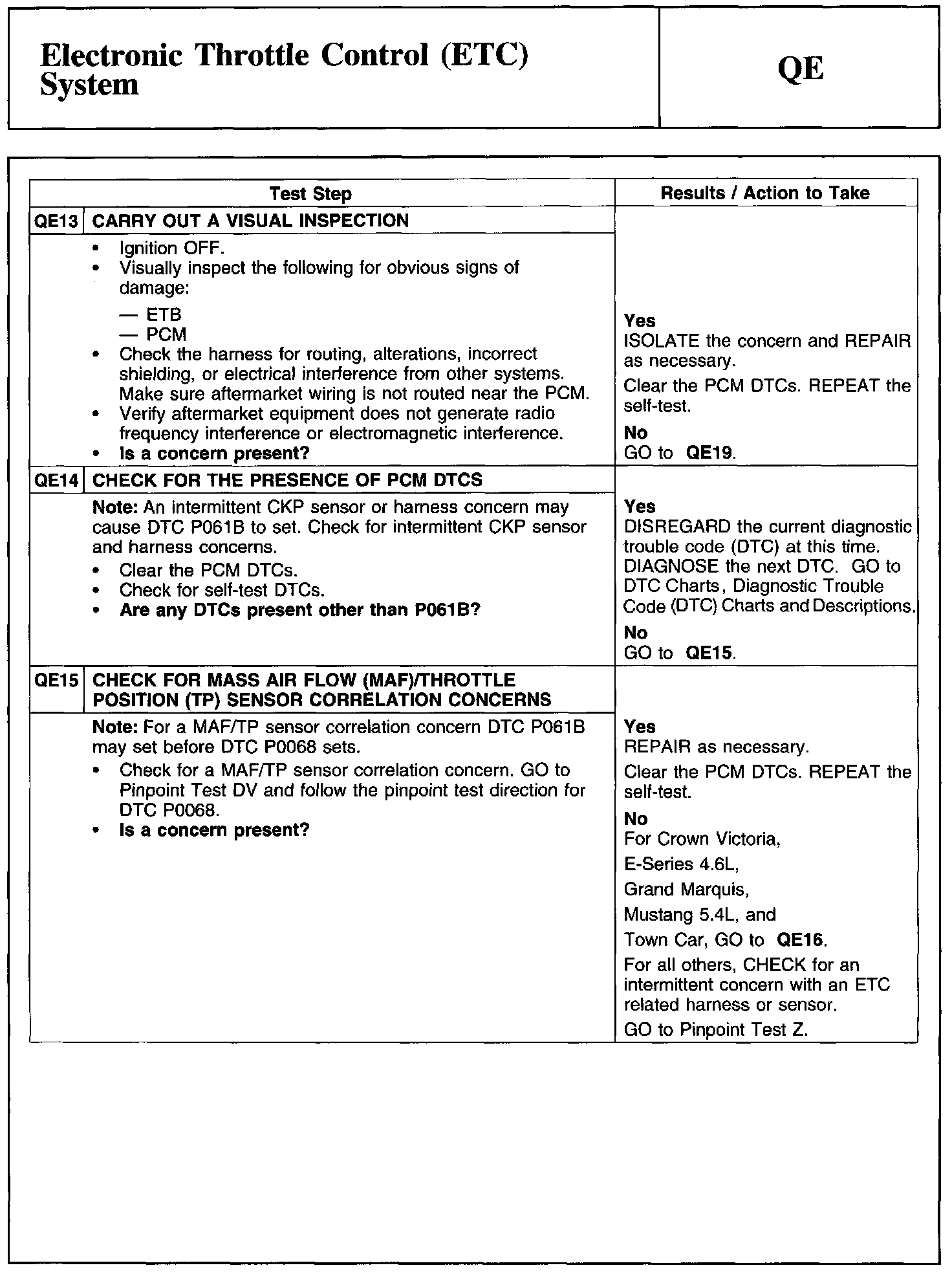

QE13-QE15:

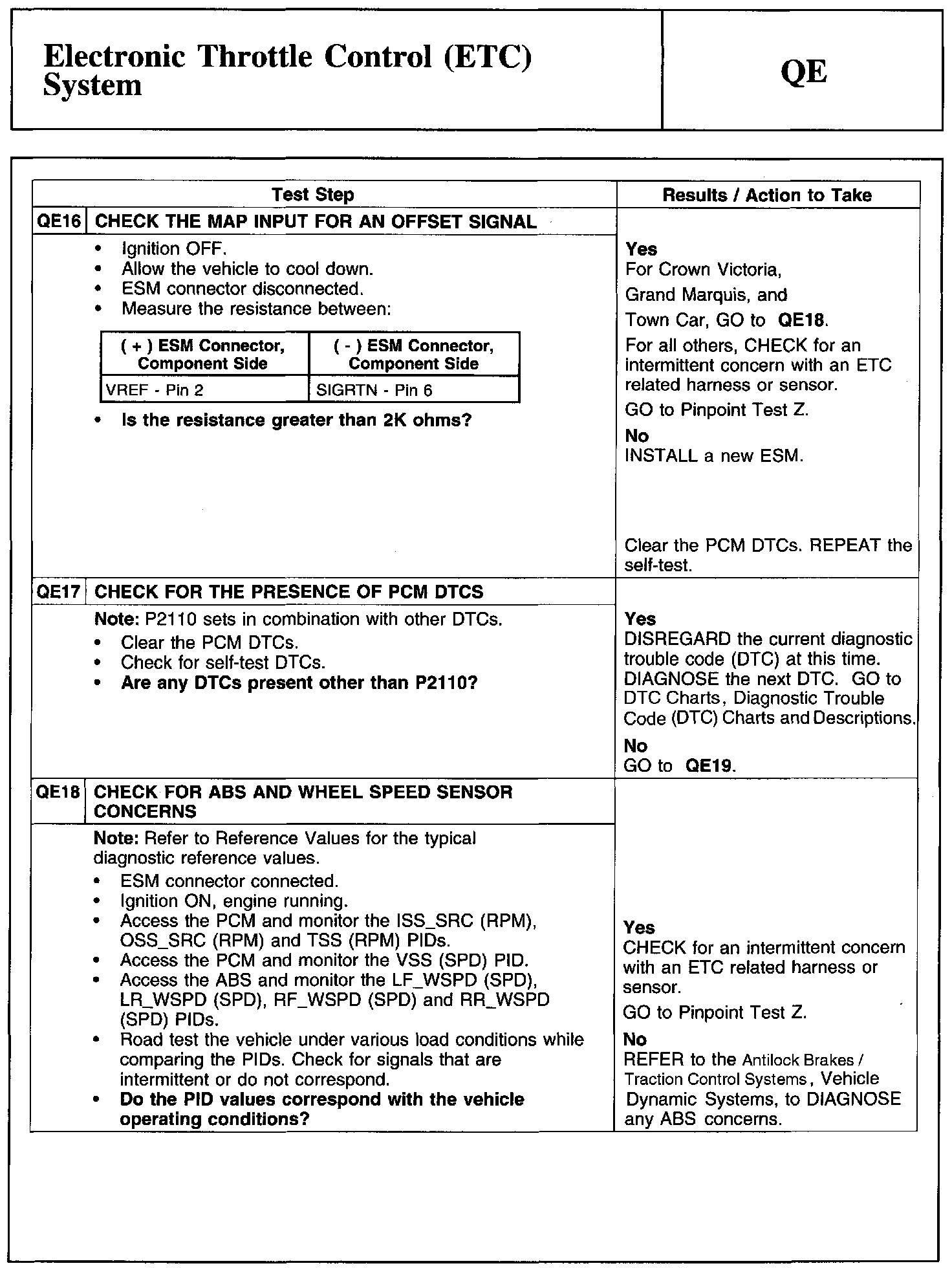

QE16-QE18:

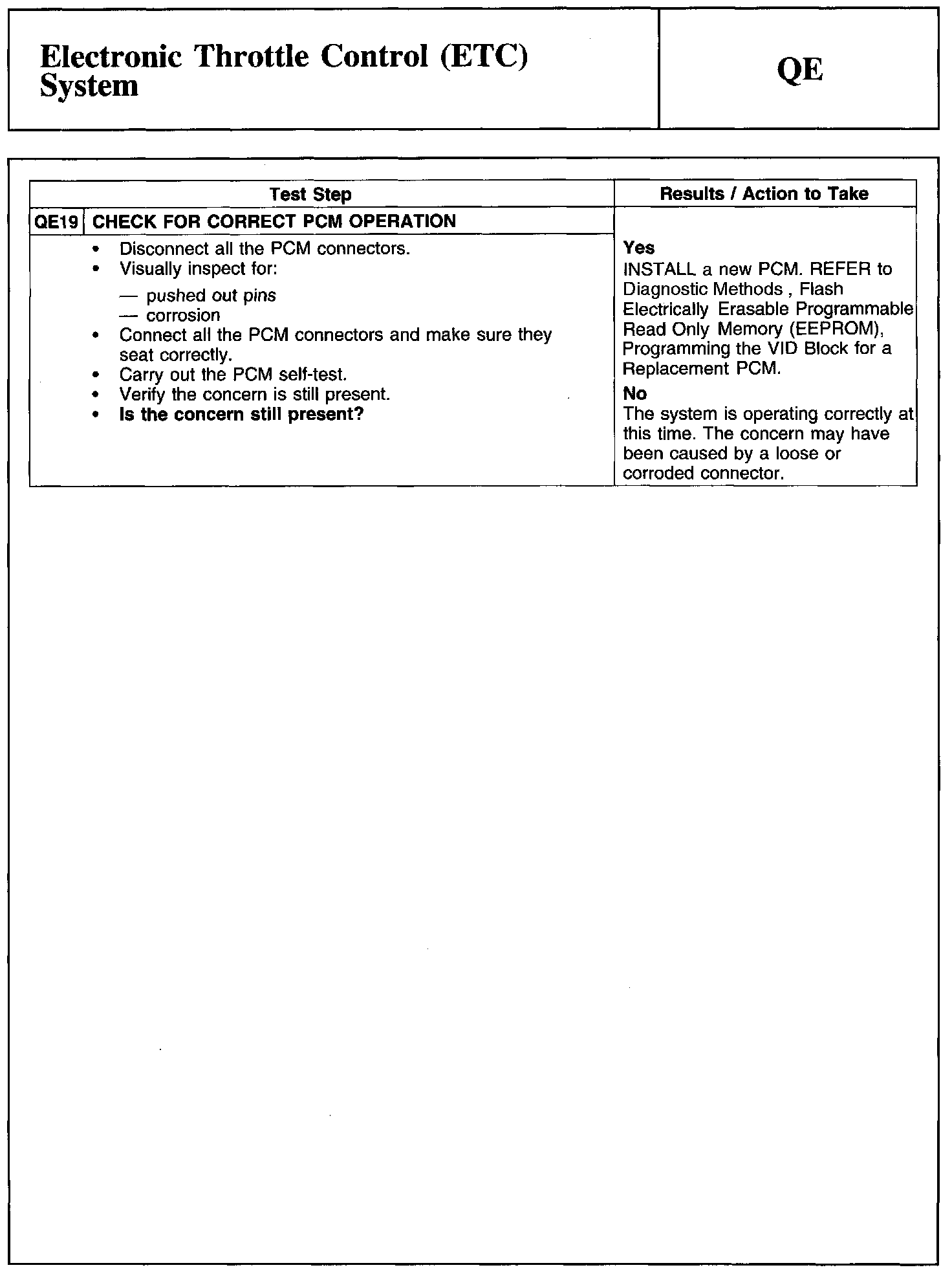

QE19:
