Repair and Diagnosis: Transmission: Clutches: Description

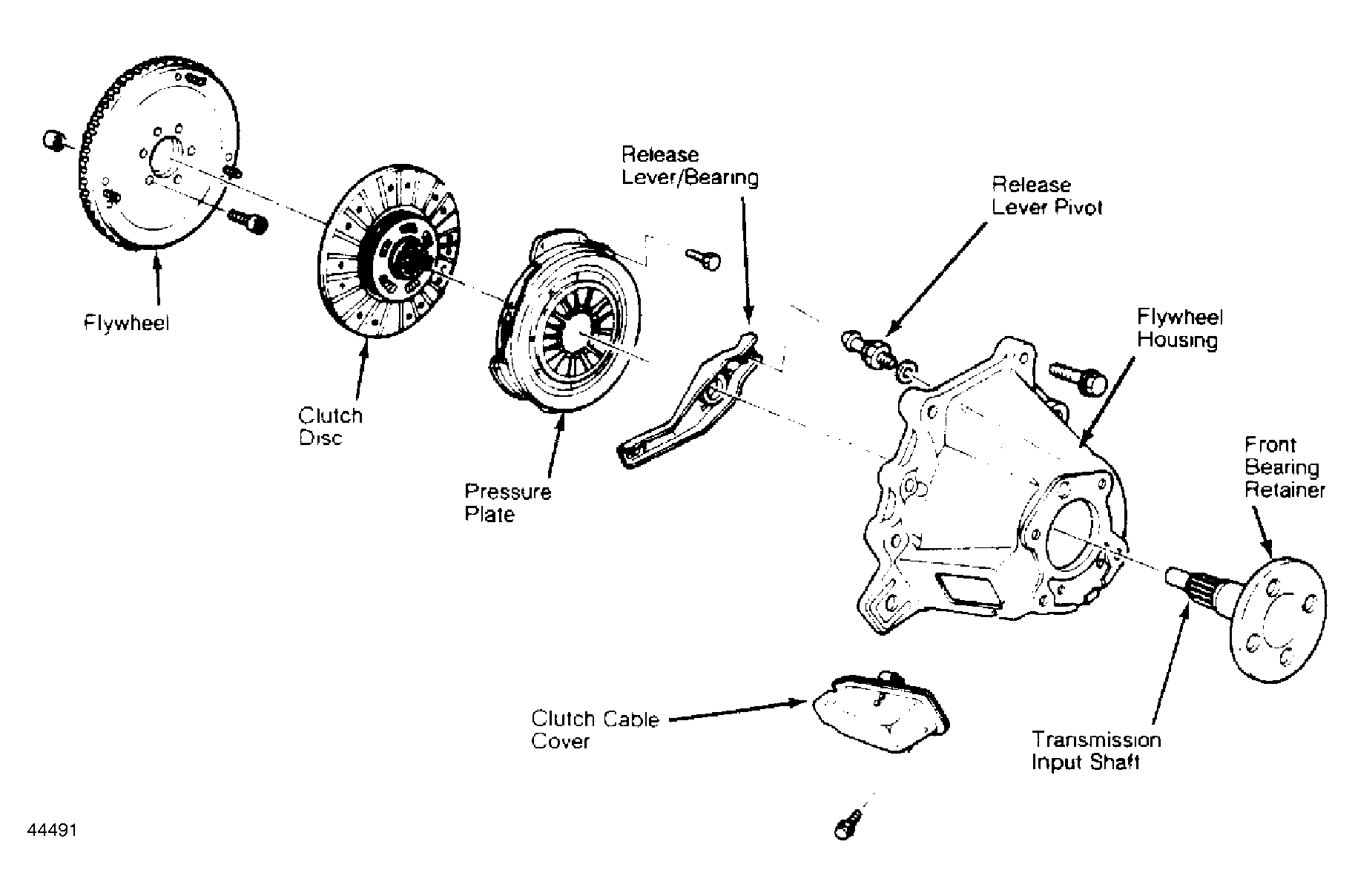

The clutch is a single dry disc, diaphragm spring type. The clutch consists of a friction disc, a pressure plate and a mechanically operated release system. To compensate for wear, the clutch pedal is equipped with an automatic self-adjuster.
