Control Units

CONTROL UNITS LOCATION

Component Location

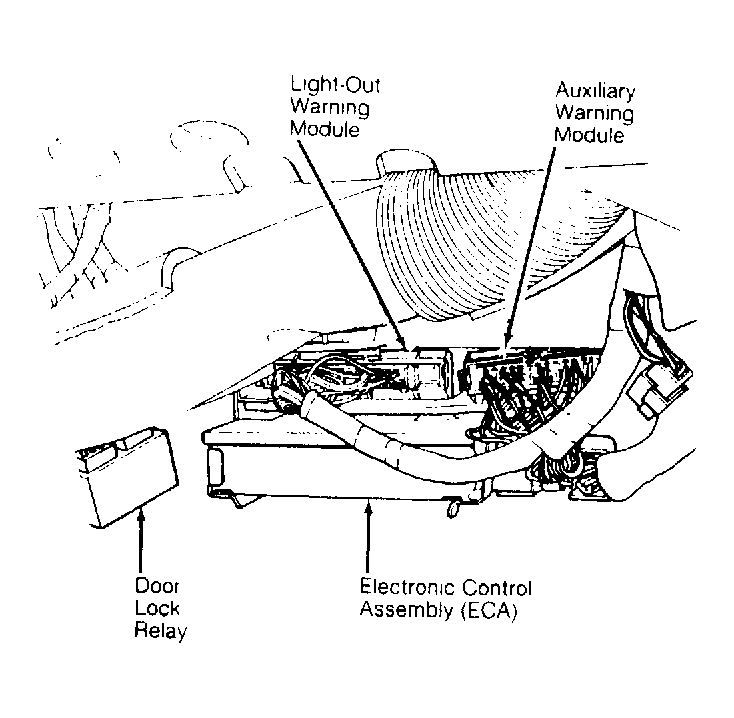

Auxiliary Warning Module In passenger compartment, under right side of dash. See Figure .
Electronic Control Assembly (ECA) In passenger compartment, under right side of dash. See Figure .
Graphic Display Module Under dash, at center of dash panel. See Figure .
Light-Out Warning Module In passenger compartment, under right side of dash. See Figure .

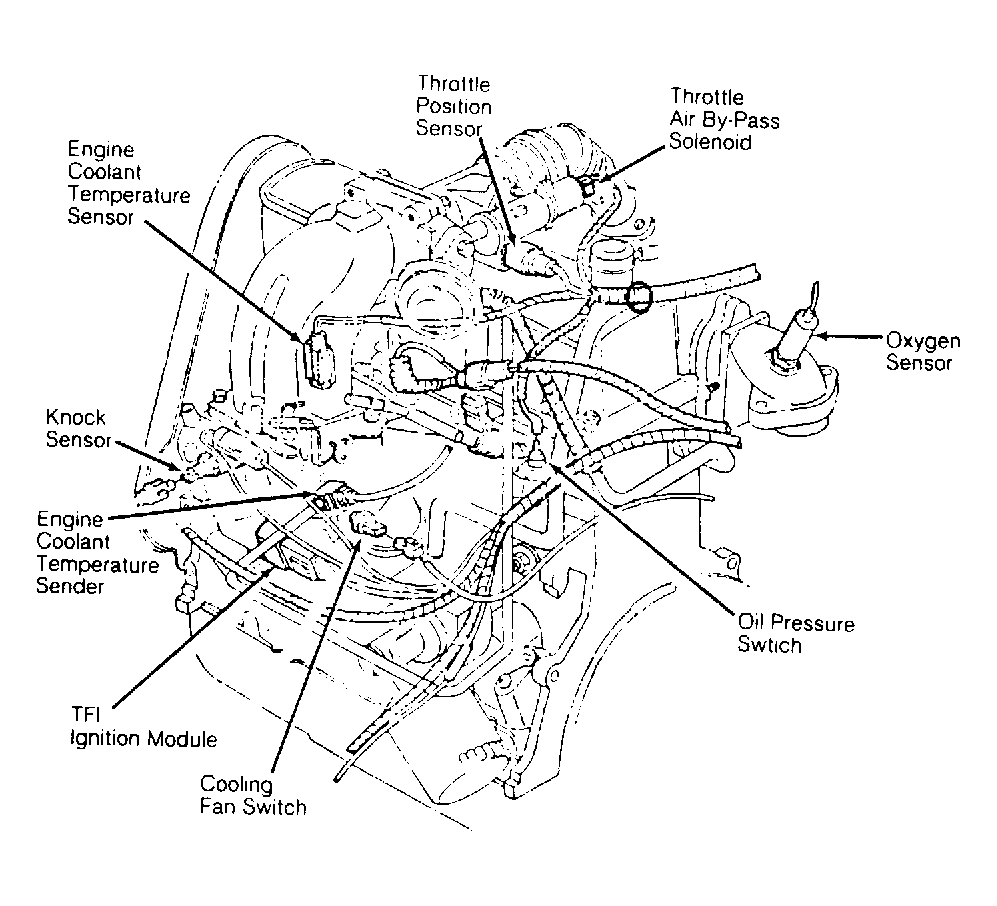

TFI Ignition Module Mounted to distributor base. See Figure .
