Engine Compartment

Fuse holder 3 is located at the left rear of engine compartment, see Fig 1. To identify fuse placement, see Fig 2.

Fig 1: Locating Engine Compartment Fuse Holder 3

Courtesy of BMW OF NORTH AMERICA, INC.

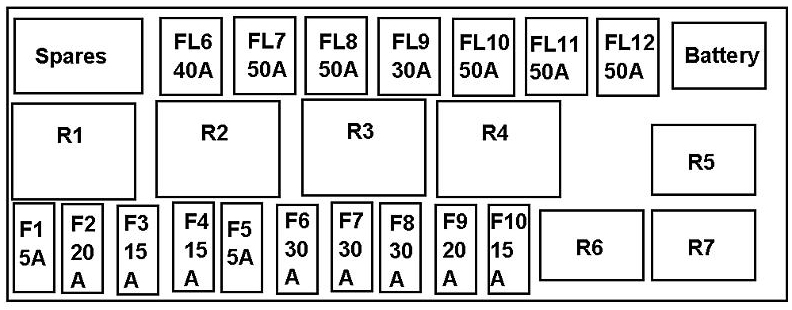

Fig 2: Identifying Engine Compartment Fuses

Courtesy of BMW OF NORTH AMERICA, INC.

Fuse holder 3 fuses protect:

1. F01:  5A - Digital motor electronics control unit
2. F02:  20A - Digital motor electronics control unit/Ignition coil/Cylinder 1-4 fuel injection valves/Crankshaft position sensor (From K6300 87)
3. F03:  15A - Camshaft position sensor/O2 sensor before cat/O2 sensor after cat/Solenoid valve, fuel tank ventilation/Relay K19 control power (From K6300 87)
4. F04:  15A - Tank Leakage diagnosis pump
5. F05:  5A - Relay, electric fan (From K6300 87)
6. F06:  30A - ABS contrl module or ABS/DSC control module
7. F07:  30A - Magnetic clutch for AC compressor via relay K19
8. F08:  30A - control power K69923 Relay, fan, steering control module/Switch unit 1 or 2 speed blower
9. F09:  20A - BC1 (X11177 2) unit via I01136 and I01137 (Relay wiper motor fast/slow and Relay wiper motor on/off)
10. F010:  15A - BC1/Left fog/Right fog/Switch panel via K47

1. FL1:  50A - Feed to Passenger Compartment Fuseholder (F14, F31, F32)
2. FL2:  50A - Feed to Passenger Compartment Fuseholder
3. FL3:  No Info
4. FL4:  100A - Steering control unit/Hydraulic pump
5. FL5:  50A - Feed to Passenger Compartment Fuseholder (F15, F16, F17)
6. FL6:  40A - ABS or ABS/DSC unit
7. FL7:  50A - Feed to ignition switch
8. FL8:  50A - Terminal 30
9. FL9:  30A - Heater Blower Relay (2002-03); Elec.Fan Stage 2 Relay (2004)
10. FL10:  50A - K416, Relay windshield defroster
11. FL11:  50A - Elec.Fan Stage 2 Relay
12. FL12:  50A - Terminal 30
