IHKA Heating and Air Distribution: Display

The Display integrated into the IHKA will provide current temperature setting and fan speed information. The display will show LO or HI at the extreme temperature settings and indicate fan speed by the number of streamers illuminated around the fan blade. It is possible to display the temperature in 0C or 0F, changeable at the control unit.

Fig 1: IHKA Control Unit Display Minimum

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: IHKA Control Unit Display 220C

Courtesy of BMW OF NORTH AMERICA, INC.

Temperature Max Blower Speed

Blower Speed 3

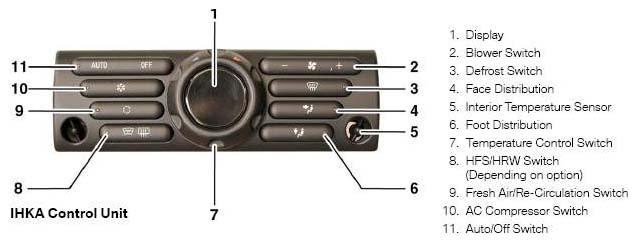

Fig 3: IHKA Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.
