Replacing Engine Compartment Fusebox

Removing And Installing/Replacing Engine Compartment Fusebox

Remove battery box.

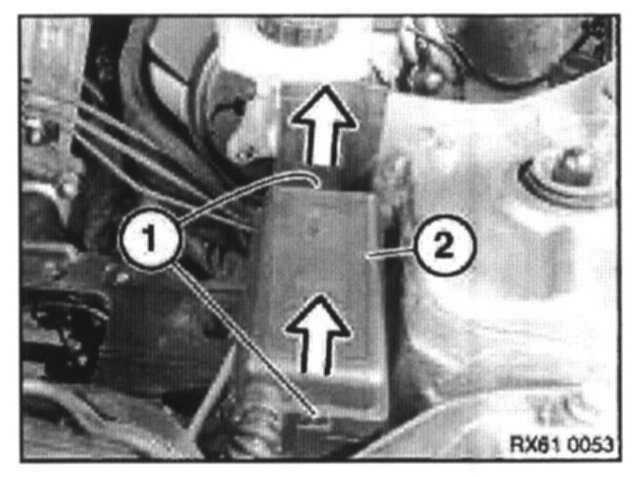

Release clips (1) and remove fusebox cover (2).

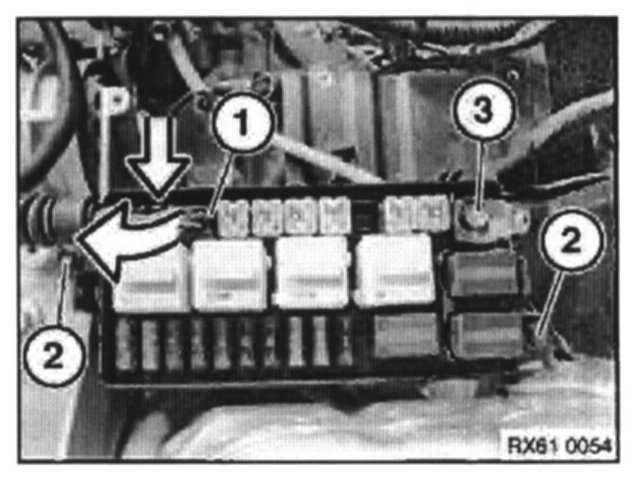

Disconnect connector (1).
Remove bolts (2).
Tightening torque 5 Nm.
Remove bolt (3).
Tightening torque 22 Nm.

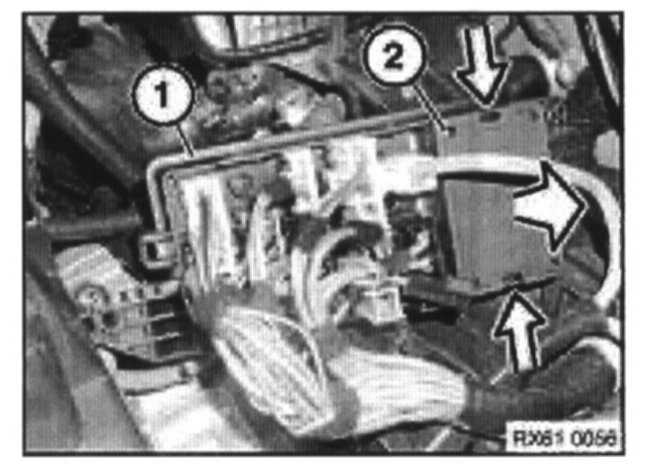

Disconnect connectors from underside of fusebox (1).

Install hint:
Note colour and position of connectors prior to removal.

Replacement only:
Remove cover (2).
Remove fuse and relays.
