Battery

Regular Sleeping

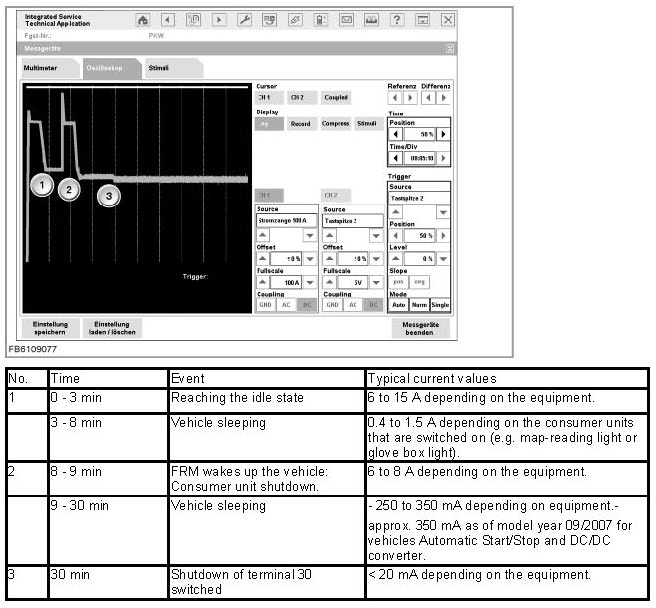

This document provides an overview of the typical current values that are measured in an external closed-circuit current measurement with a current measuring clip during regular sleeping.
Refer to the following document for the procedure for external standby current measurement: Observing going into sleep mode by means of external standby current measurement
