52 25... Removing and installing/replacing rear panel on rear seat backrest

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For purposes of clarity, the following operations are shown in the released state.

Detach cover (1) from Velcro fastener.

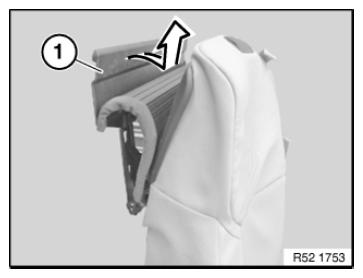

Pull cover (1) upwards out of guide from four-bar lever.

Fig 1: Pulling Cover Upwards Out Of Guide From Four-Bar Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

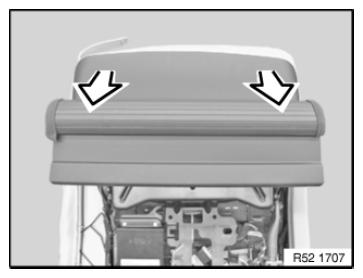

Make sure cover guide is correctly seated on four-bar lever.

Fig 2: Identifying Cover Guide On Four-Bar Lever

Courtesy of BMW OF NORTH AMERICA, INC.

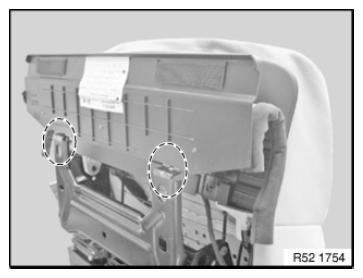

Unclip rear panel at top left and right and remove in upward direction.

Fig 3: Removing Rear Panel At Top Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If necessary, replace faulty clips.

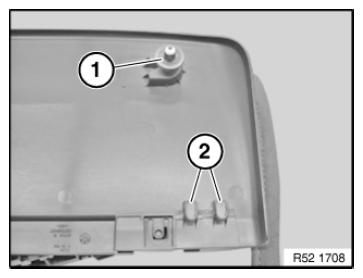

Make sure guide (2) is correctly seated in backrest frame.

Fig 4: Identifying Backrest Frame Guide And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
