V-Adapter Cables (M04 10 07)

Publication date: 2007-10-11
Reference number: M04 10 07

V-ADAPTER CABLES

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI M04 10 07, Date of Issue: October 11, 2007

MINI:	R56
GROUP:	Tools and Equipment

V-adapter Cables

Distribution of the following tools will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC.

V-adapter cable, 10-pin

Used for diagnosis of the transmission selector switch.

ORDER PN 83 30 0 495 968

Cartool PN 61 3 440

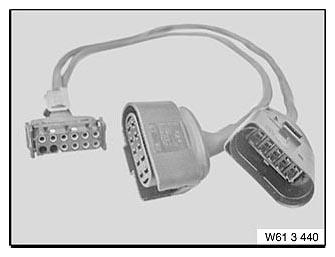

Fig 1: V-Adapter Cable, 10-Pin

V-adapter cable, 14-pin

Used for diagnosis of various transmission actuators.

ORDER PN 83 30 0 495 969

Cartool PN 61 3 450

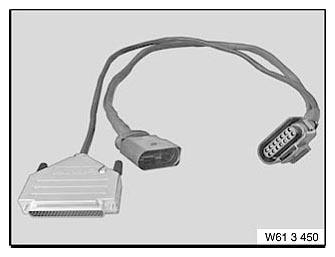

Fig 2: V-Adapter Cable, 14-Pin

V-adapter cable, 19-pin

Used for diagnosis of the STG AISIN transmission.

ORDER PN 83 30 0 495 970

Cartool PN 61 3 460

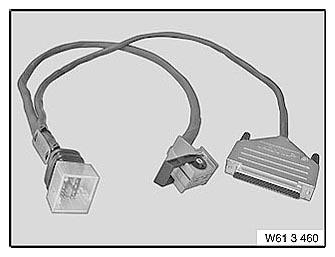

Fig 3: V-Adapter Cable, 19-Pin

V-adapter cable, 4-pin

Used for diagnosis of the zero gear sensor.

ORDER PN 83 30 0 495 971

Cartool PN 61 3 470

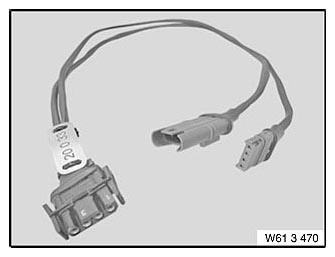

Fig 4: V-Adapter Cable, 4-Pin

V-adapter cable, 2-pin

Used for diagnosis of the metering unit.

ORDER PN 83 30 0 495 972

Cartool PN 61 3 480

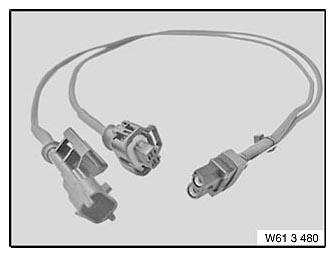

Fig 5: Identifying V-Adapter Cable, 2-Pin
