33 00... Rear axle: wheel/chassis alignment check must be carried out after the following work

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

A wheel/chassis alignment check must be carried out after the following work:

Release of following screw/bolt connections:
- Swinging arm, front/rear, to rear axle carrier
- Swinging arm to integral link/wheel carrier
- Integral link to wheel carrier
- Guide arm to rear axle support
- Wishbone to rear axle support
Replacement of following parts:
1. Rear axle support
2. Swinging arm
3. Integral link
4. Wheel carrier/ball joint
5. Wishbone
6. Guide arm

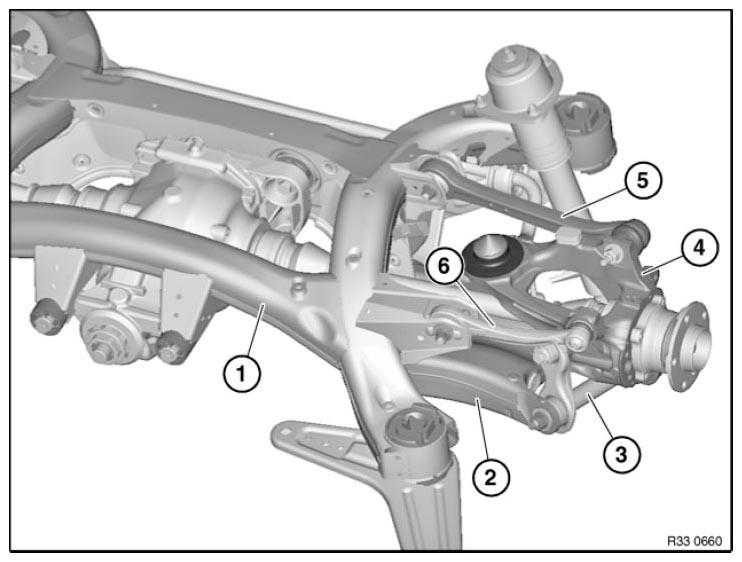

Fig 1: Identifying Rear Axle Support, Swinging Arm, Integral Link, Wheel Carrier / Ball Joint, Wishbone And Guide Arm

Courtesy of BMW OF NORTH AMERICA, INC.

See WHEEL ALIGNMENT WITH VEHICLE LOAD UP TO DESIGN POSITION or CHASSIS/WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .
