Oscilloscope Patterns and Waveforms

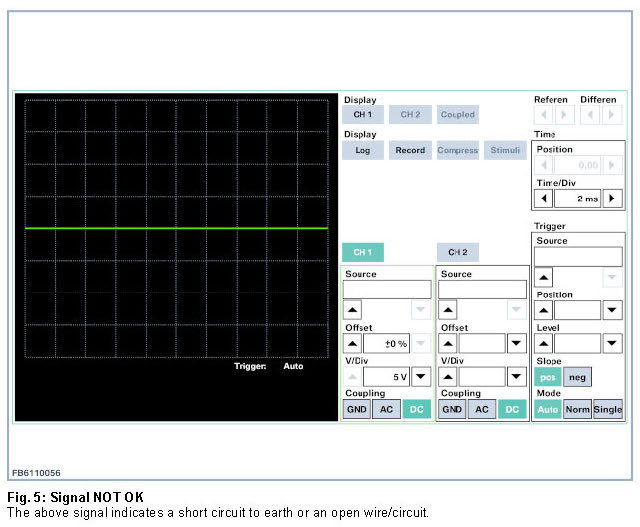

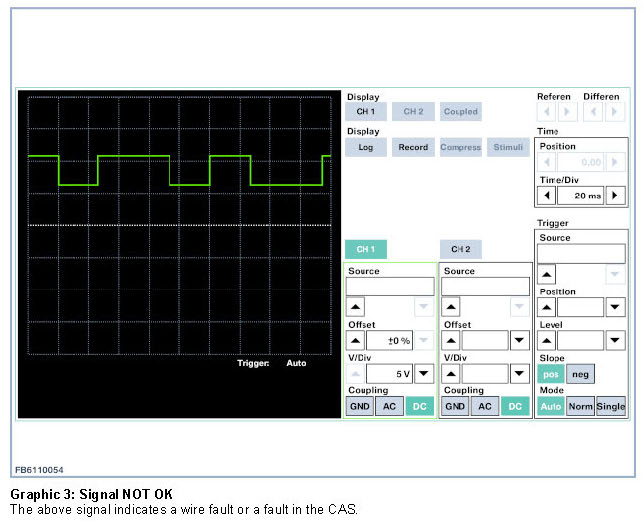

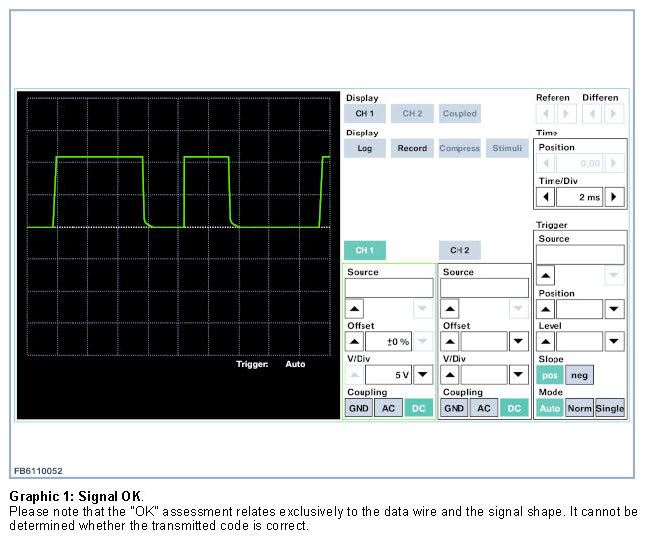

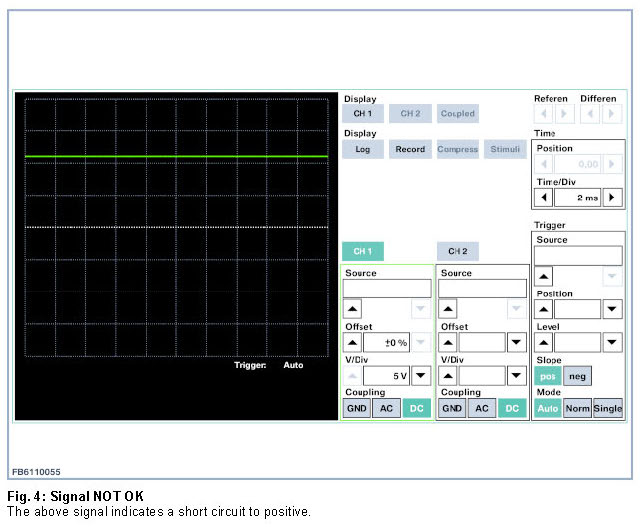

Comparison Images EWS Oscilloscope Measurement

IMPORTANT: The DME/DDE must remain connected for the duration of the test-measurement routine. The CAS control unit should not be enabled. It transmits a continuous EWS immobiliser signal whenever Terminal 15 is hot.
