32 41... Instructions for removing and installing ear clips

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

32 1 260

NOTE: The work steps are show on assorted components.
Ear clip must always be replaced.

To remove an ear clip, place special tool 32 1 260 at right angles to ear and cut ear open.

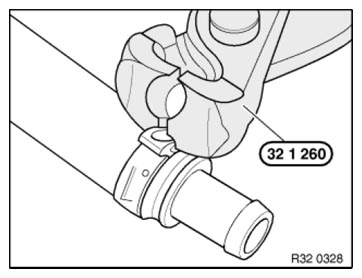

Fig 1: Removing Ear Clip Using Special Tool (32 1 260)

G08420897

Courtesy of BMW OF NORTH AMERICA, INC.

The ear clip can be fitted not only axially but also radially after the hook fastener has been opened.

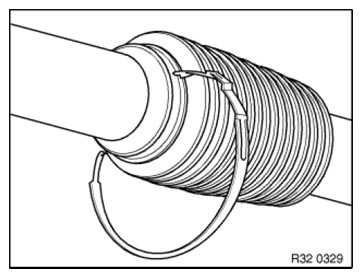

Fig 2: Identifying Hook Fastener On Ear Clip

G08420898

Courtesy of BMW OF NORTH AMERICA, INC.

Attach hook fastener and press ear together with special tool 32 1 260.

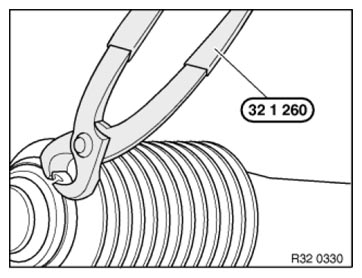

Fig 3: Pressing Ear Clip Using Special Tool (32 1 260)

G08420899

Courtesy of BMW OF NORTH AMERICA, INC.

The diagonal cutting pliers of special tool 32 1 260 can be used in areas which are difficult to access.

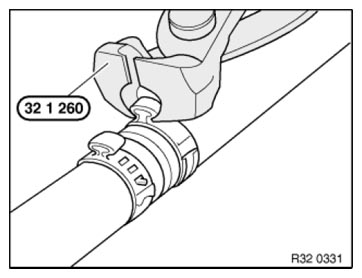

Fig 4: Installing Ear Clips Using Special Tool (32 1 260)

G08420900

Courtesy of BMW OF NORTH AMERICA, INC.

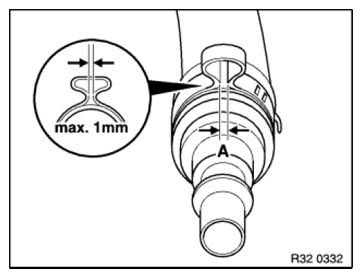

IMPORTANT: Gap (A) max. 1 mm!

Fig 5: Identifying Ear Clip Gap

G08420901

Courtesy of BMW OF NORTH AMERICA, INC.
