61 31 043 Removing and installing or replacing roof switch cluster

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Follow instructions for handling light bulbs (INTERIOR LIGHTS) .

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Carefully unclip trim (1) with special tool 00 9 340 and remove.

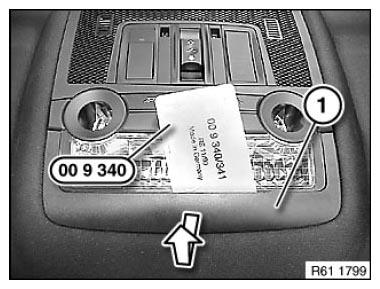

Fig 1: Removing Trim Using Special Tool (00 9 340)

Courtesy of BMW OF NORTH AMERICA, INC.

Release retaining clips (1).

Lever roof switch cluster with special tool 00 9 317 out of headliner.

Disconnect plug connections underneath.

Installation note:

Before installing, fit trim on roof switch cluster.

Make sure trim is correctly seated.

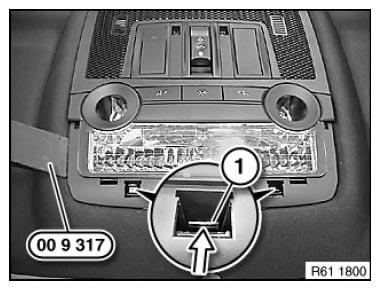

Fig 2: Removing Roof Switch Cluster From Headliner Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in roof switch cluster at an angle of 90° with respect to the headliner and attach.

Installation note:

If necessary, initialize SLIDE/TILT SUNROOF

IMPORTANT: Disconnecting the plug connection for the hands-free microphone or emergency call button results in fault memory entries in the telephone control unit (limitation in the emergency call system).
After fitting, read out fault memory and if necessary delete entries.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING
If necessary, remove BULBS
If necessary, remove HANDS-FREE MICROPHONE
If necessary, INITIALIZE SLIDE/TILT SUNROOF
