61 35 975 Removing and installing/replacing bumper aerial/antenna for Comfort Access System
WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- E71: Remove COVER OF BUMPER PANEL at bottom rear center

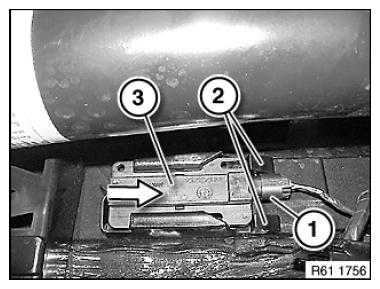

Reach in middle behind bumper trim at rear and disconnect plug connection (1).
Unlock catches (2) and feed bumper aerial/antenna for comfort access system (3) in direction of arrow out of holder.
Installation note:
Make sure bumper aerial/antenna for comfort access system (3) is correctly seated and engaged in holder.
