61 35 147 Removing And Installing/Replacing Convertible Top Module

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection) .

Necessary preliminary tasks:

Remove rear seat back . See REAR SEAT, NORMAL .

Disconnect plug connection (1).

Unlock catch (2) in direction of arrow and pull convertible top module (3) out of holder (4).

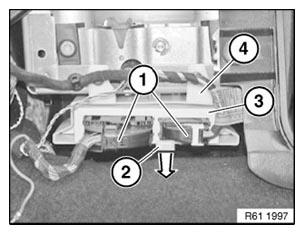

Fig 1: Identifying Convertible Top Module & Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out vehicle programming/coding .
