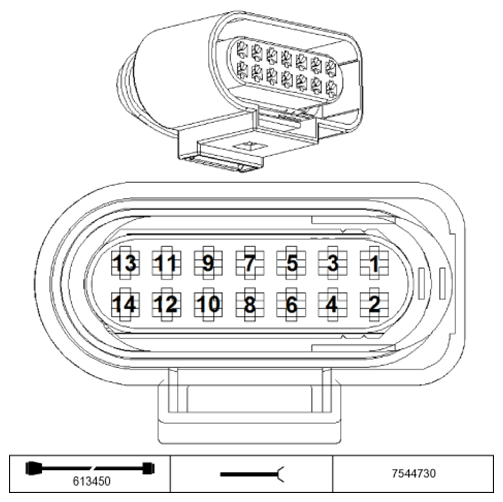

Transmission Shift Device SX11630A Connector End View
Pin Assignments At Plug Connector X11630
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Signal Solenoid valve S1 | Transmission control |
| 2 | E | Signal Solenoid valve S2 | Transmission control |
| 3 | E | Signal, solenoid valve, positive Electronic pressure control valve (SLC1) | Transmission control |
| 4 | E | Signal, solenoid valve, negative Electronic pressure control valve (SLC1) | Transmission control |
| 5 | E | Signal, solenoid valve, positive Electronic pressure control valve (SLC2) | Transmission control |
| 6 | E | Signal, solenoid valve, negative Electronic pressure control valve (SLC2) | Transmission control |
| 7 | E | Signal, solenoid valve, positive Electronic pressure control valve (SLC3) | Transmission control |
| 8 | E | Signal, solenoid valve, negative Electronic pressure control valve (SLC3) | Transmission control |
| 9 | E | Signal, solenoid valve, positive Electronic pressure control valve (SLB1) | Transmission control |
| 10 | E | Signal, solenoid valve, negative Electronic pressure control valve (SLB1) | Transmission control |
| 11 | E | Signal, solenoid valve, positive Electronic pressure control valve (SLU) | Transmission control |
| 12 | E | Signal, solenoid valve, negative Electronic pressure control valve (SLU) | Transmission control |
| 13 | E | Signal, solenoid valve, positive Electronic pressure control valve (SLT) | Transmission control |
| 14 | E | Signal, solenoid valve, negative Electronic pressure control valve (SLT) | Transmission control |
