00 00... Changing front axle differential oil
WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Change oil with manual transmission at normal operating temperature.
CAUTION:
Use only the approved gear oil in the front axle differential.
Failure to comply with this requirement will result in serious damage to the differential!
Failure to comply with this requirement will result in serious damage to the differential!
Drain oil from front axle differential.

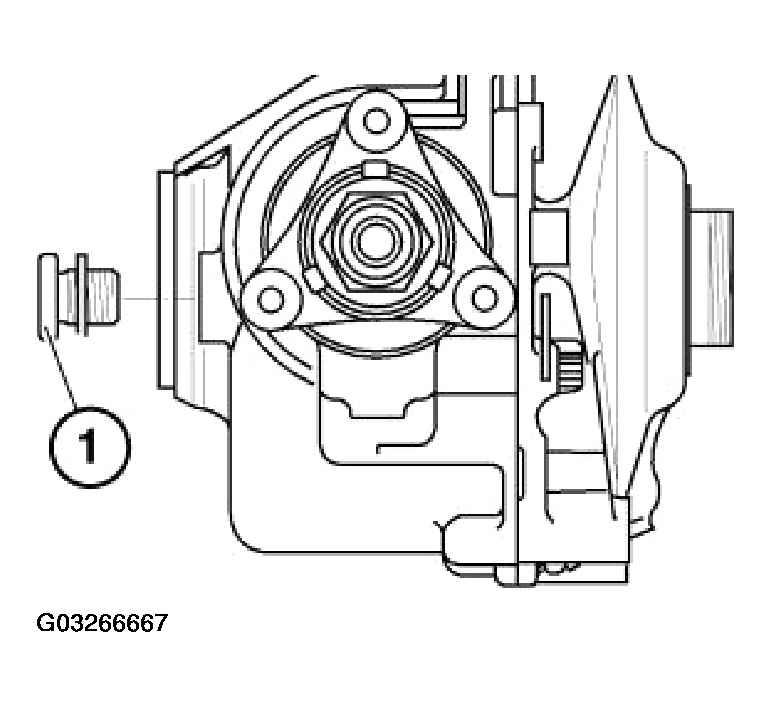

Undo filler plug (1).
Installation:
Tightening torque, see TORQUE SPECIFICATIONS .
Replace sealing ring.
Top up oil up to lower edge of filler plug.
