Minimum Set: Mechanical Tools

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Note: For all petrol/gasoline and diesel engines.

Engine: M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M67TU, M70, M73, M88, N40, N42, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17

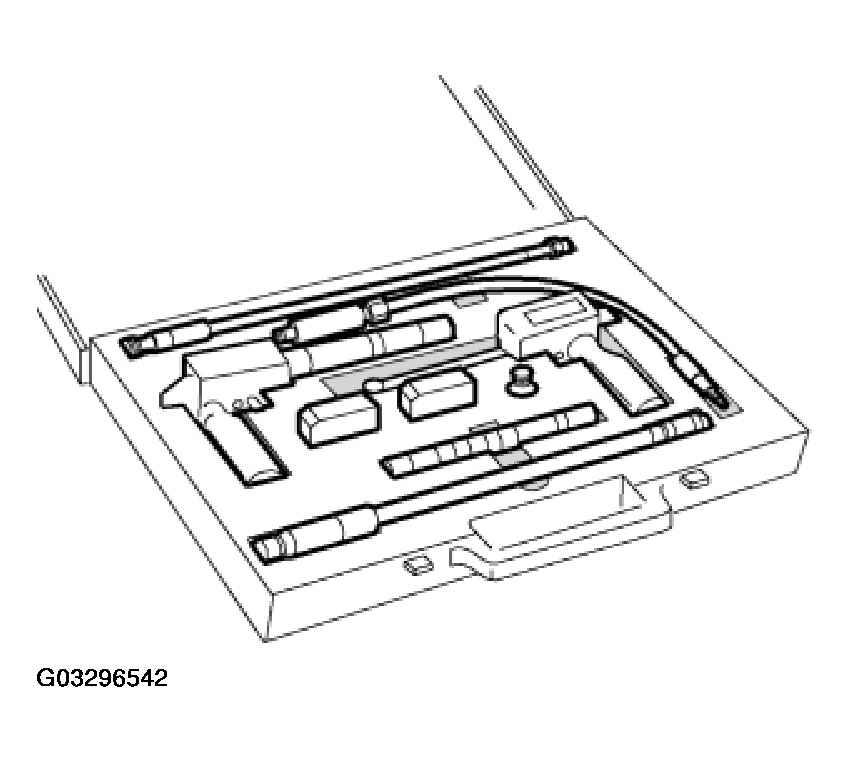

Fig 1: Identifying Compression Test Kit

Courtesy of BMW OF NORTH AMERICA, INC.

SI number: 1 09 92 (558)

Order number: 11 0 220

Compression test kit

Consisting of:

16 = 11 0 239 Adapter

Note: Engine M67, M67TU

11 0 221 Compression recorder for diesel engines

11 0 222 Test probe

Note: For compression recorder 11 0 221 and 11 0 160/Engine: M21,M41, M47, M51, M57

In conjunction with: 11 0 240

11 0 223 Test sheets (100 x)

Note: For compression recorder for 11 0 221

11 0 224 Compression recorder for petrol/gasoline engines

11 0 226 Test probe

Note: For compression recorder 11 0 224 and 11 0 160/engine: M10, M20, M30, M40, M42, M43, M44, M50, M52, M60, M62, M70, M73, S50US, S52US, S62

In conjunction with: 11 0 240

11 0 228 Rubber taper with fitting

Note: For compression recorder 11 0 224 and 11 0 160/engine: M10, M20, M30

In conjunction with: 11 0 240

11 0 229 Test charts (100 x)

Note: For compression recorder 11 0 224

11 0 231 Case

Note: With foam inlay for compression recorder

11 0 233 Non-return valve

11 0 234 Filter 3 x 3 mm

11 0 235 Test probe, screw-in

Note: For measuring "absolute compression"at all cylinders, engine:

S14, S38, S50B30, S50B32, S50US, S52US, S54

In conjunction with: DIS and DIS pressure sensor

11 0 236 Test probe

Note: For compression recorder 11 0 221 or DIS pressure sensor/engine: M47, M57, M57TU

11 0 237 Adapter

Note: For measuring "absolute compression"at all cylinders. Engine: W17

In conjunction with: 11 0 221, 11 0 235 or DIS pressure sensor, 11 0 235
