65 90 550 Replacing CD/DVD Drive For Navigation Computer

Special tools required:

• 00 9 318

Comply with notes and instructions on handling navigation computers  . See 65 90 ... NOTES ON HANDLING NAVIGATION COMPUTERS .

Replace the destroyed seal on all devices with the new seal supplied.

Necessary preliminary tasks:

• Remove navigation computer  . See 65 90 511 REMOVING AND INSTALLING (REPLACING) NAVIGATION COMPUTER WITH CD DRIVE .

MK II version:

Cut through seal (1).

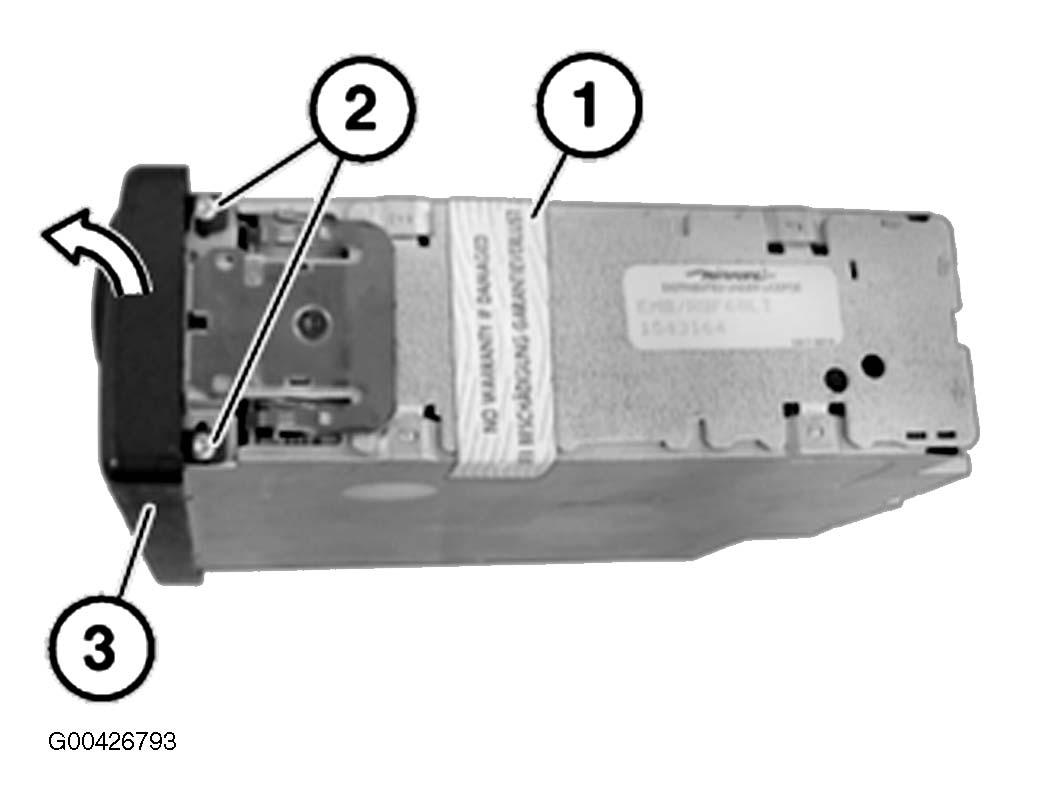

Release screws (2) on both sides and carefully fold down front panel (3).

Installation:

Replace the destroyed seal with the new seal supplied.

Fig 1: Identifying Through Seal & Screw

Courtesy of BMW OF NORTH AMERICA, INC.

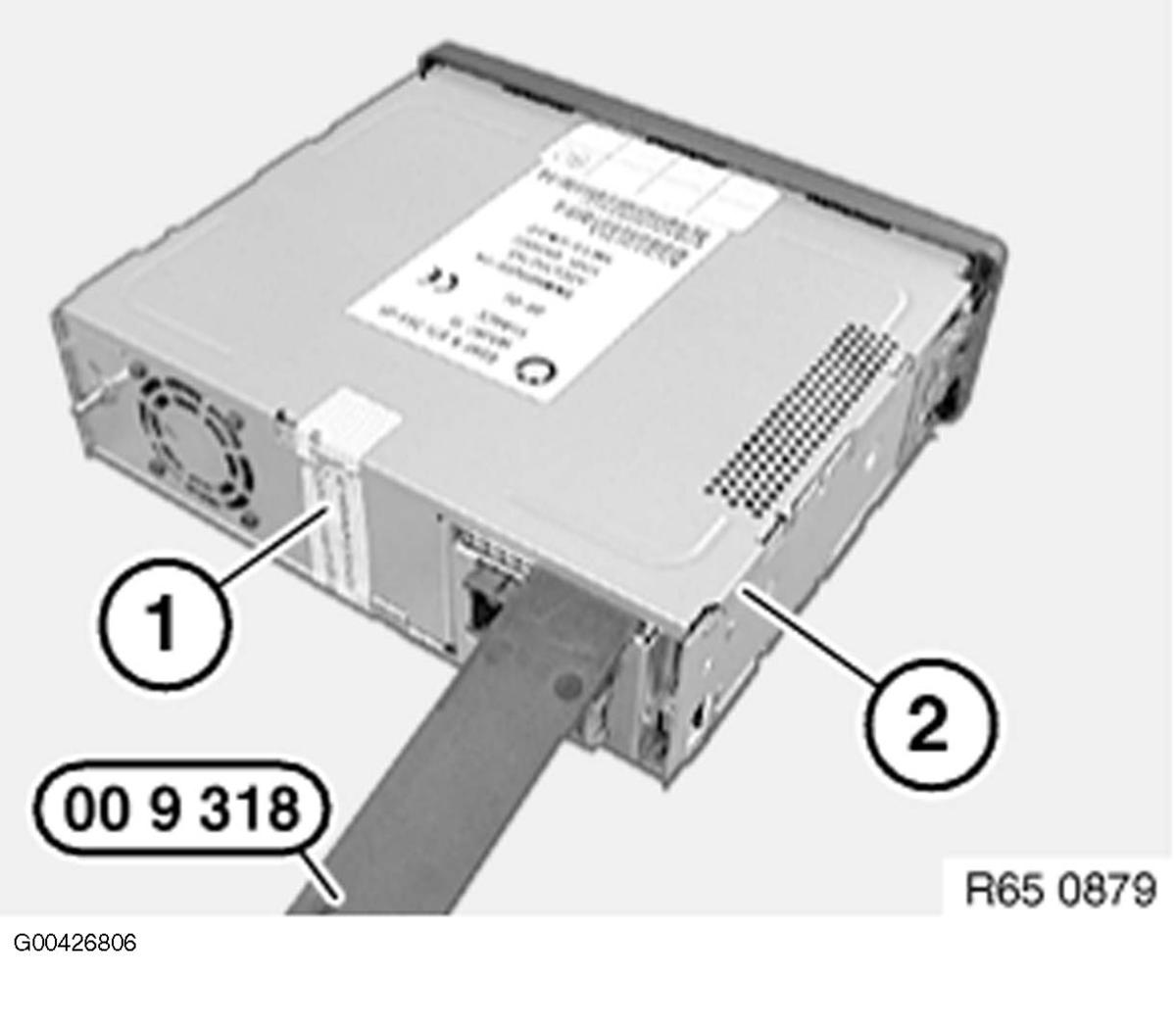

Lever cover (1) with special tool 00 9 318  upwards out of side catches.

Fig 2: Identifying Lever Cover With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

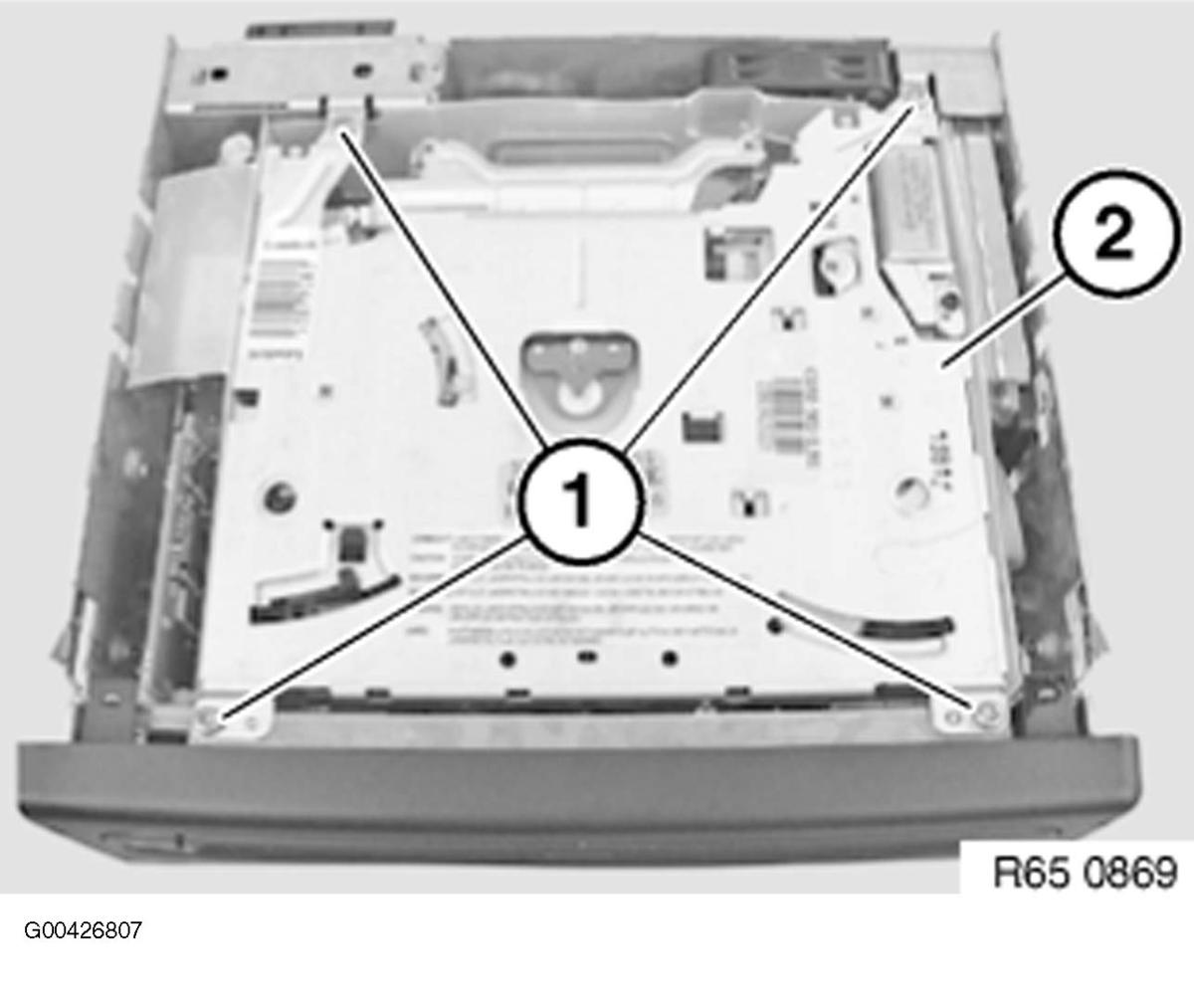

Release screws (1) and carefully lift out CD drive (2).

Fig 3: Identifying CD Drive & Screw

Courtesy of BMW OF NORTH AMERICA, INC.

MK III and MK IV versions:

Cut through seal (1).

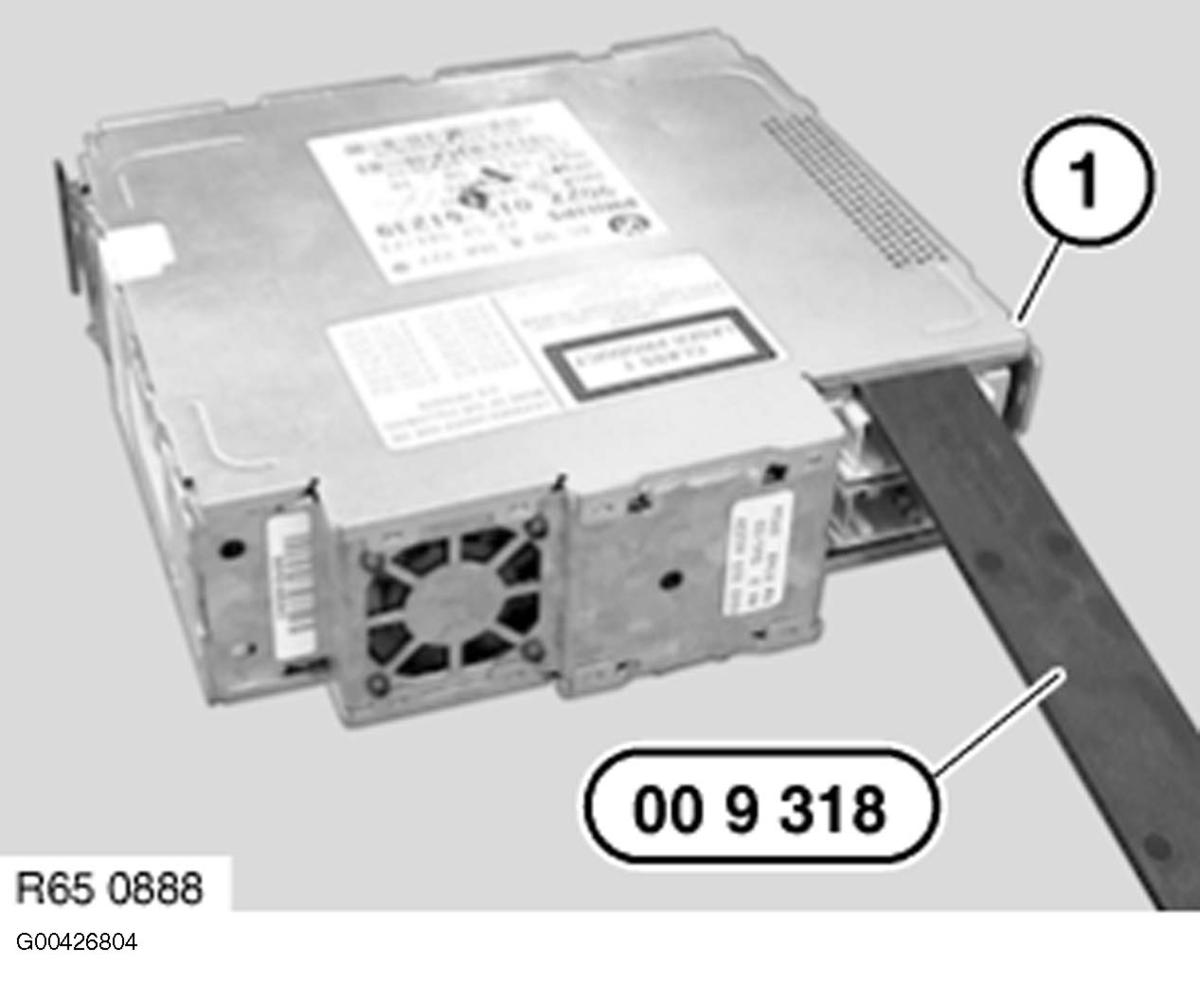

Carefully lever off cover (2) with special tool 00 9 318  .

Installation:

Replace the destroyed seal with the new seal supplied.

Fig 4: Identifying Lever Off Cover With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

MK III version:

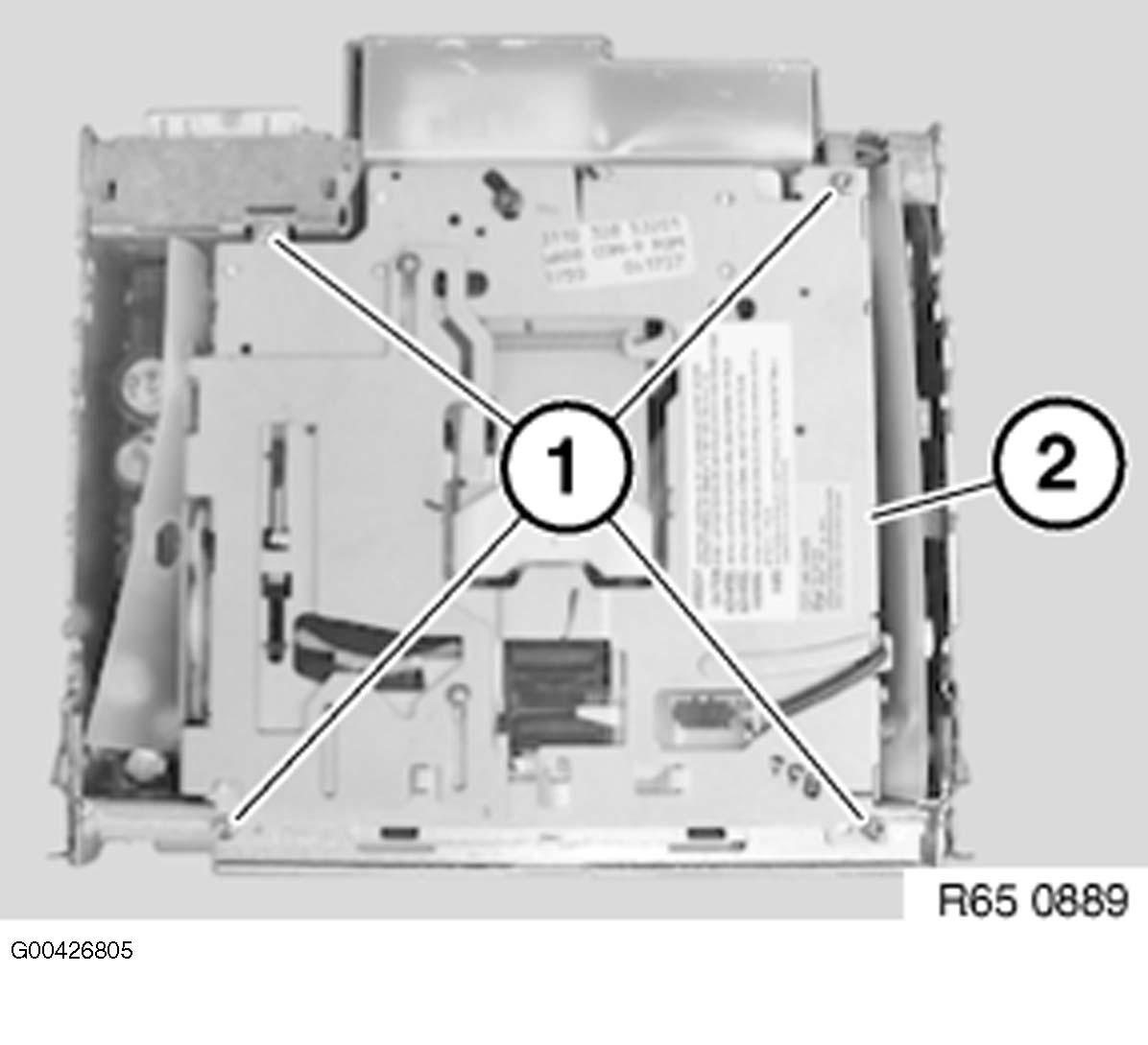

Release screws (1) and carefully lift out drive (2).

Fig 5: Identifying Carefully Lift Out Drive & Screw

Courtesy of BMW OF NORTH AMERICA, INC.

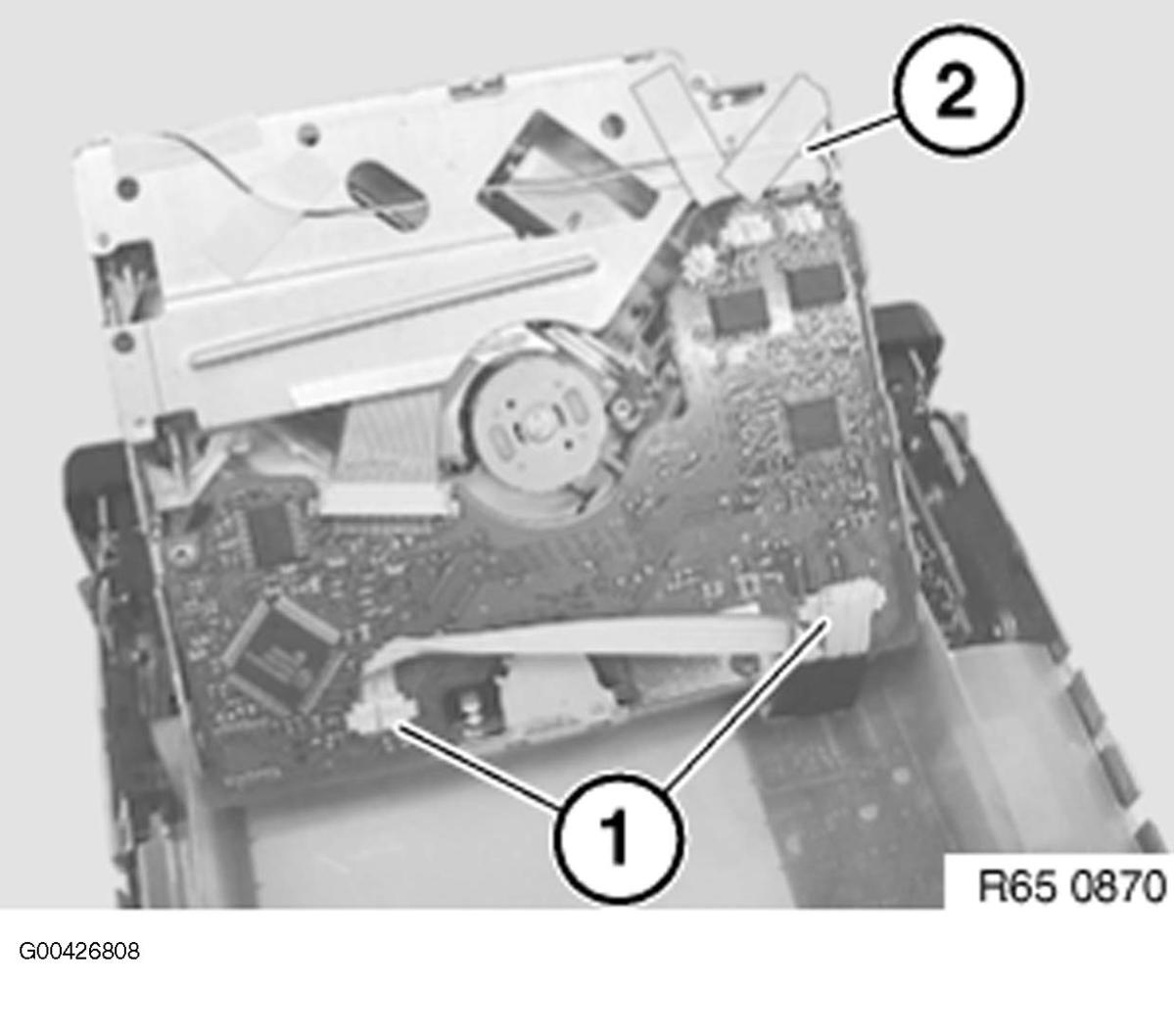

Disconnect plug connections (1) and remove drive (2).

Fig 6: Identifying Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

MK IV version:

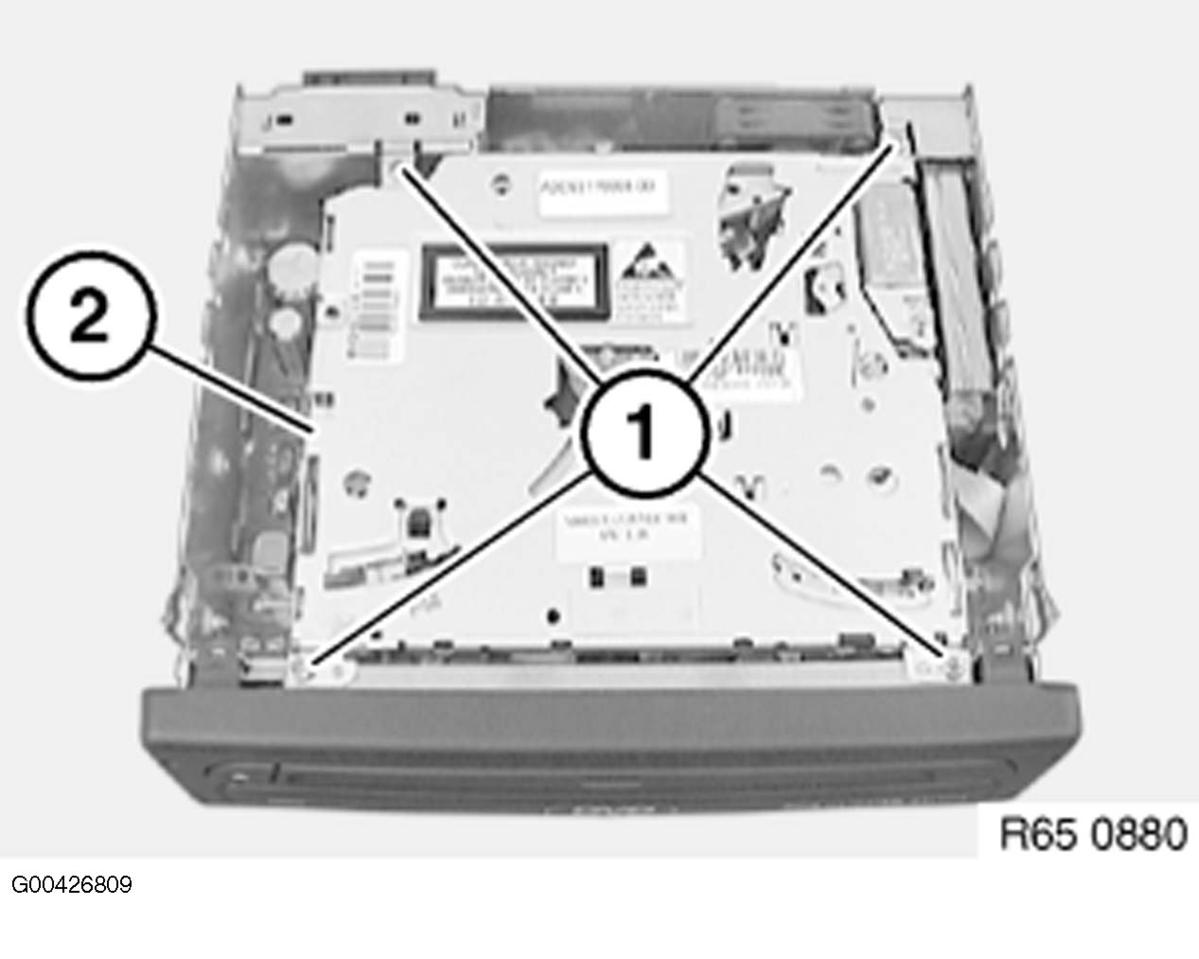

Release screws (1).

Carefully lift out DVD drive (2).

Fig 7: Identifying DVD Drive & Screw

Courtesy of BMW OF NORTH AMERICA, INC.

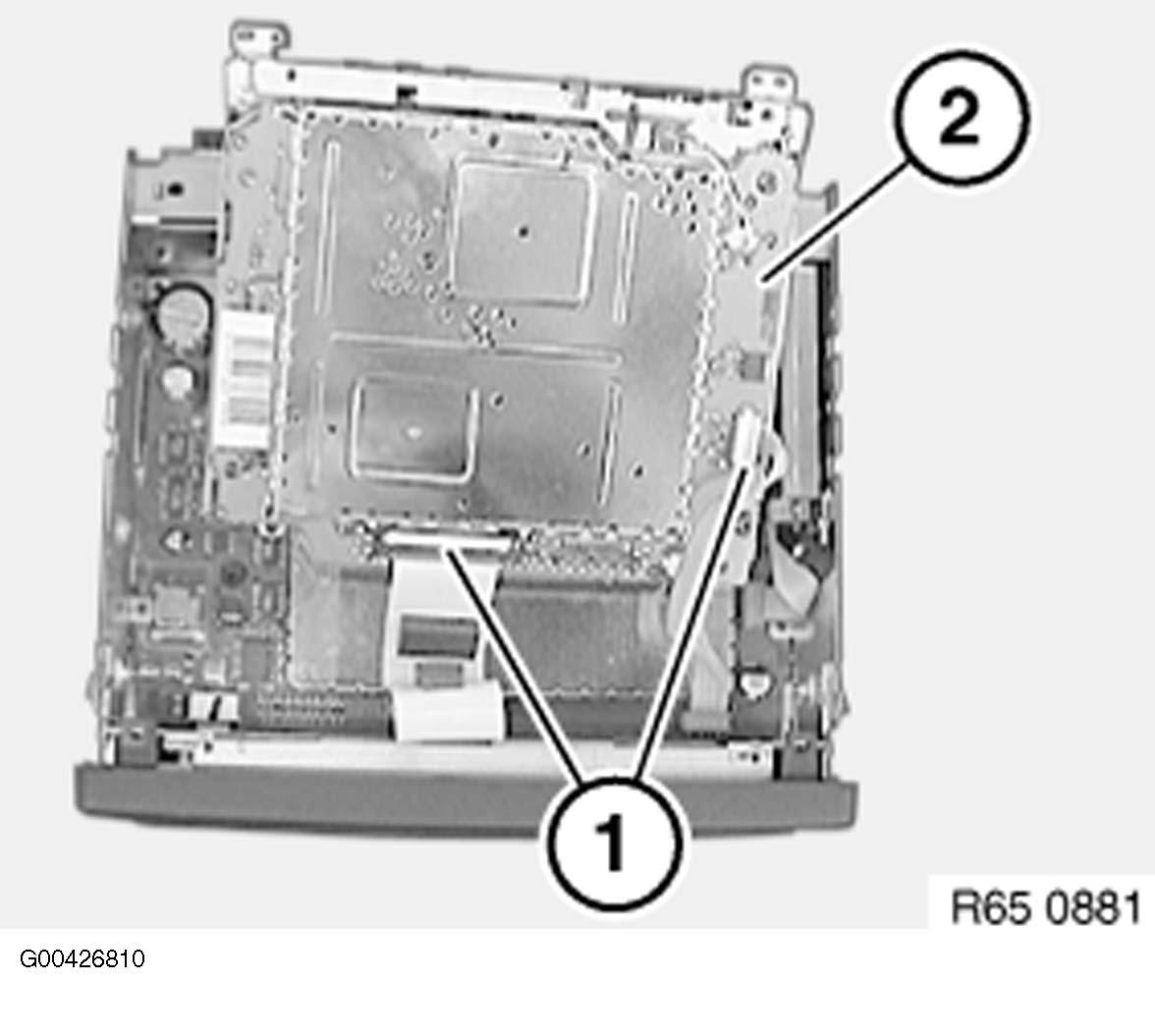

Disconnect plug connections (1) and remove DVD drive (2).

Fig 8: Identifying Plug Connections DVD Drive

Courtesy of BMW OF NORTH AMERICA, INC.
