65 83... Removing and installing/replacing front trim for Car Infotainment Computer

WARNING: This page is about a different car, the 2010 BMW 550i, 2009 BMW 550i, and 2008 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage! A hard disk is installed in the Car Information Computer (CIC). Carry out mechanical work on the CIC and adjacent components with care. Avoid subjecting the CIC to shaking/shocks.

IMPORTANT: Read and comply with notes on ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

Remove MIDDLE TRIM FOR INSTRUMENT PANEL .

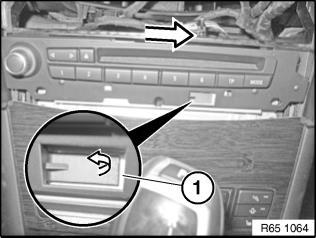

Carefully raise catch (1) with a suitable tool in direction of arrow. Feed out front trim for Car Information Computer to right and remove.

Fig 1: Carefully Raise Catch (1) With A Suitable Tool In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

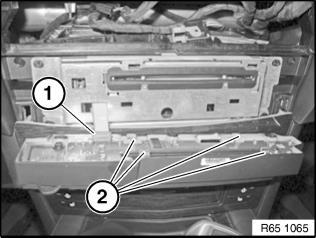

Disconnect plug connection (1). Remove front trim of Car Information Computer. Installation: Make sure guides (2) are correctly seated in designated openings. Replace front trim if guides are damaged.

Fig 2: Disconnect Plug Connection (1)

Courtesy of BMW OF NORTH AMERICA, INC.
