37 14 055 Removing And Installing/Replacing DYNAMIC DRIVE Control Unit
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
.
After installation:
- Replacement only: Carry out coding. Refer to DIAGNOSIS PROGRAMMING/CODING .
- Replacement/coding only: Carry out steering angle sensor adjustment. Refer to 61 31 996 CARRY OUT STEERING ANGLE SENSOR ADJUSTMENT .
- Carry out initial DYNAMIC DRIVE operation. Refer to 37 10 001 INITIAL OPERATION WITH TEST RUN OF DYNAMIC DRIVE .
Necessary Preliminary Tasks:
- Disconnect battery negative lead. Refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
- Remove sensor from A-pillar on right. Refer to 65 77 710 REMOVING AND INSTALLING (REPLACING) LEFT A-PILLAR SENSOR .

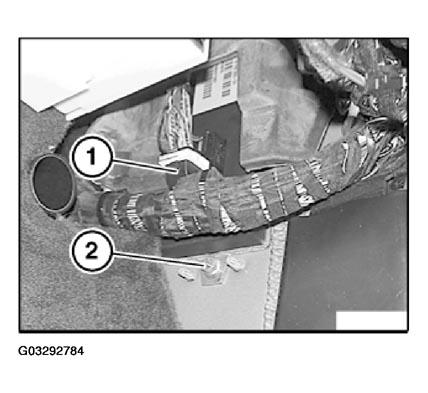

Disconnect plug connection (1).
Unscrew nut (2).
Tightening torque, (4.5 N.m.).
Remove Dynamic Drive control unit towards bottom.
