37 14 610 Removing And Installing/Replacing Transversal-Acceleration Sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

IMPORTANT: Do not kink floor panelling under any circumstances!

Necessary Preliminary Tasks:

Remove right front seat. Refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) and/or 52 17 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (COMFORT) .
Remove front inside entrance cover strip. Refer to 51 47 000 REMOVING AND INSTALLING / REPLACING ENTRANCE COVER STRIP, FRONT (INSIDE) LEFT OR RIGHT .
Lift floor panelling and fold back to one side.

Release expansion rivets (1).

Slide air duct to one side until transversal acceleration sensor is exposed.

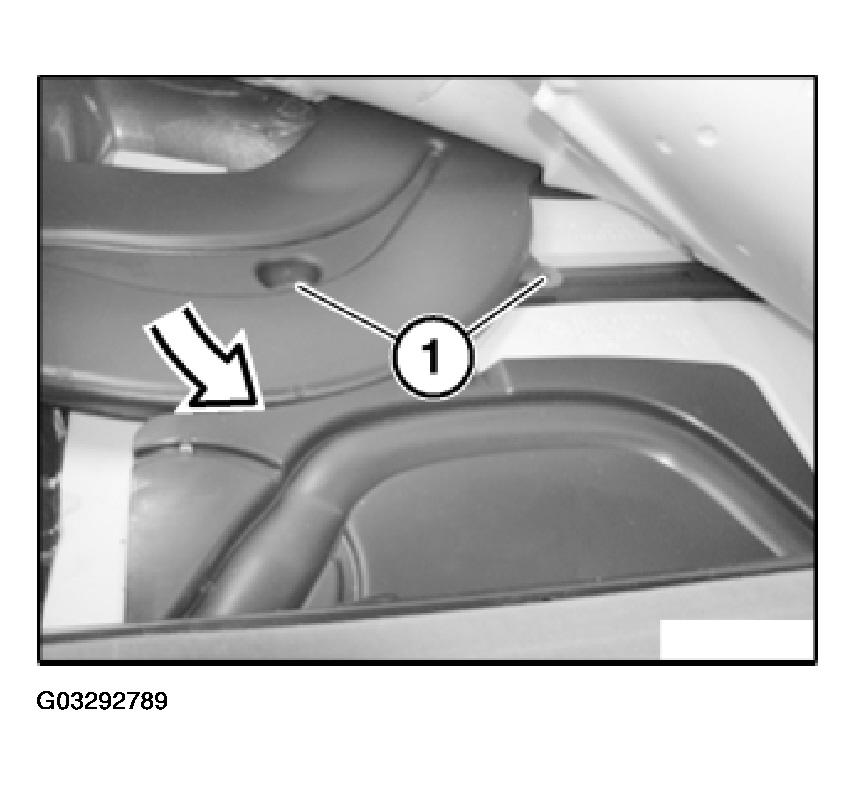

Fig 1: View Of Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque, (8 N.m.).

Remove transversal acceleration sensor.

Disconnect plug connection.

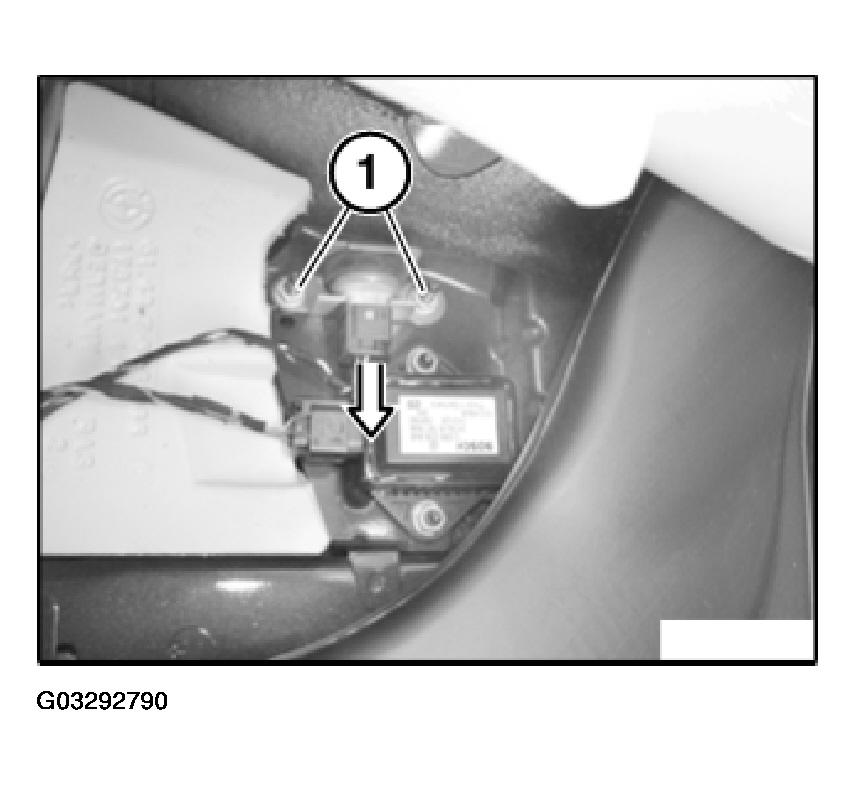

Fig 2: Identifying Transversal Acceleration Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

After Installation:

If necessary, carry out 37 10 001 INITIAL OPERATION WITH TEST RUN OF DYNAMIC DRIVE .
