Component Locations
WARNING: This page is about a different car, the 2002 BMW 745i and 2002 BMW 745Li. However, it is still accessible from the selected car via links, so may be relevant.

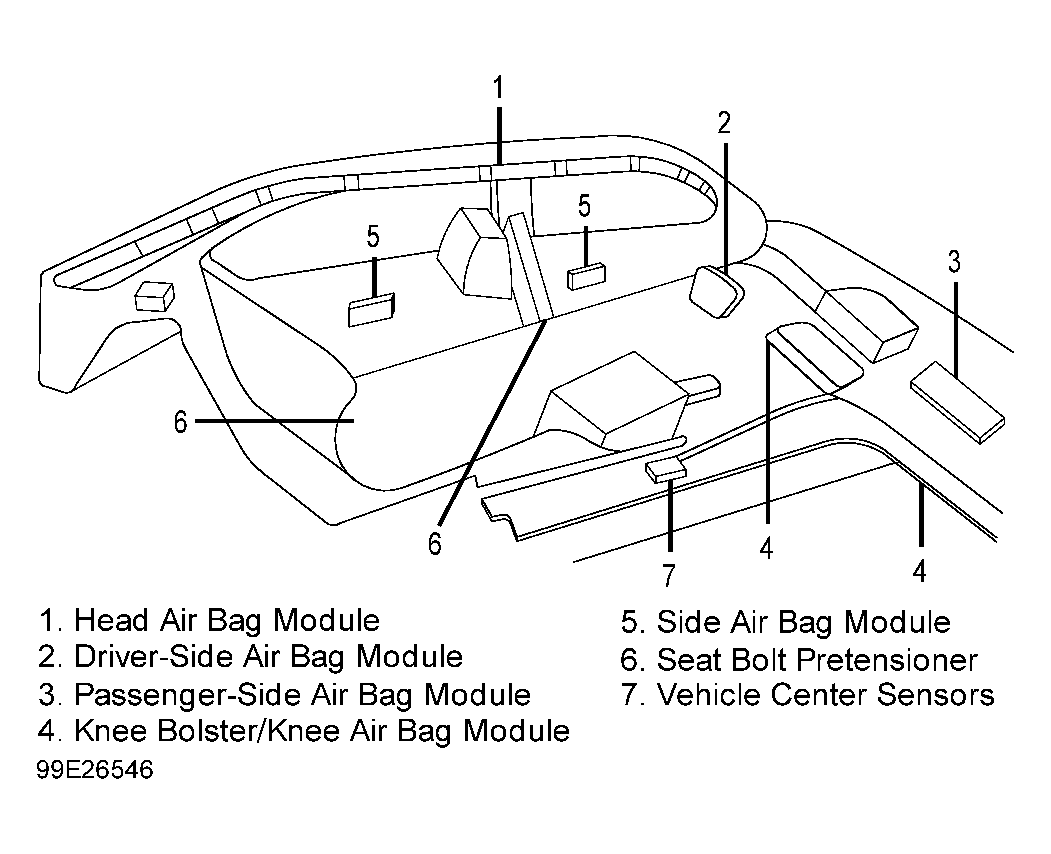

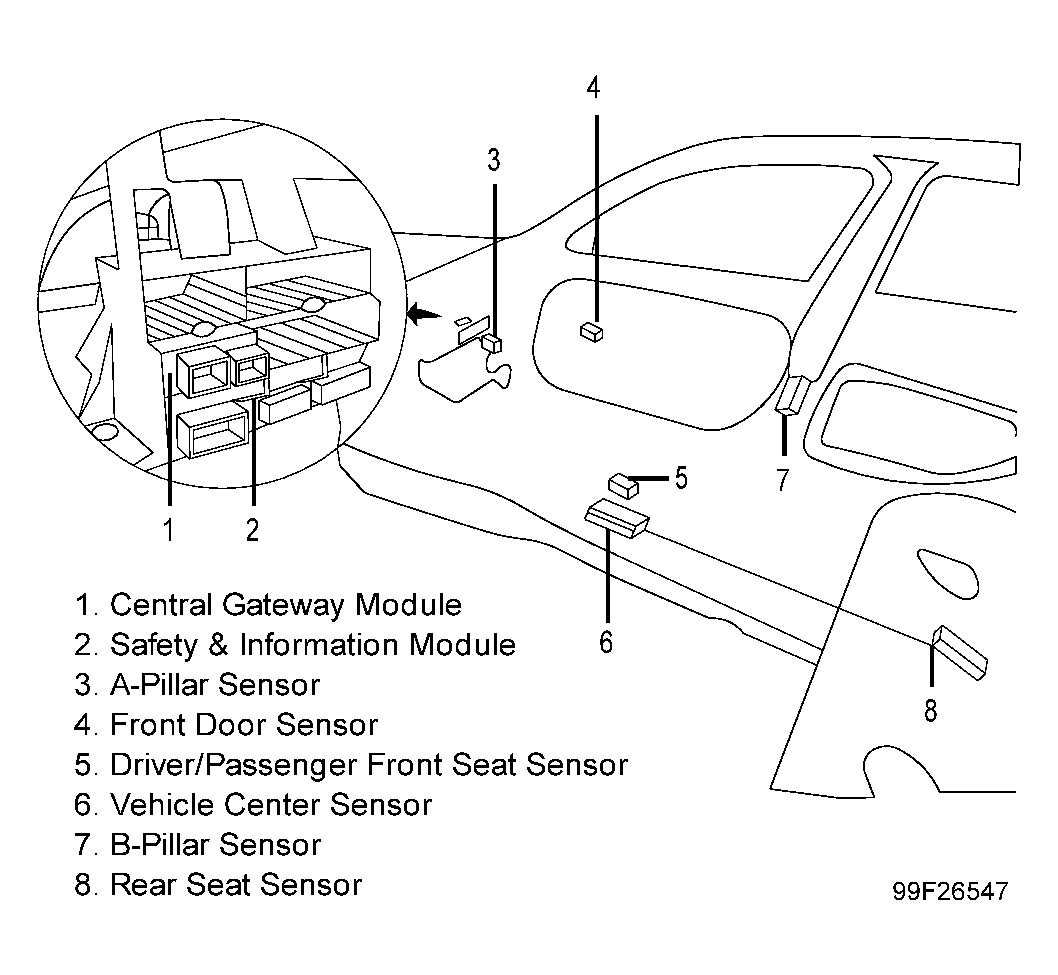

RESTRAINT SYSTEM COMPONENT LOCATIONS
| Component | (1) Location | ||
|---|---|---|---|
| A-pillar sensor | Behind right & left front, kick panels | ||
| B-pillar sensor | Behind right & left B-pillar trim panels | ||
| Center gateway module | Under right side of instrument panel | ||
| Contact ring | On top of steering column, below steering wheel | ||
| Driver-side air bag module | Front face of steering wheel | ||
| Front door sensor | Behind door trim panels | ||
| Front seat sensor | Under each front seat | ||
| Head air bag module | Under headliner, over doors | ||
| Knee air bag module | Part of knee bolsters | ||
| Passenger-side air bag module | Right side of instrument panel, above glove box | ||
| Rear seat sensor | Under center of rear seat area | ||
| Safety & information module | Under right side of instrument panel | ||
| Side air bag module | Behind door trim panels | ||
| Vehicle center sensor | Under center console armrest | ||
|
|||
