61 31 084 Removing And Installing/Replacing Switch For Automatic Rear Lid Actuation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see HEATING AND AIR CONDITIONING - SPECIAL TOOLS .

Special Tools Required:

64 1 020

Lever switch for automatic rear lid actuation (1) with special tool 64 1 020 sideways out of frame (2).

Disconnect plug connection behind and remove switch for automatic rear lid actuation (1).

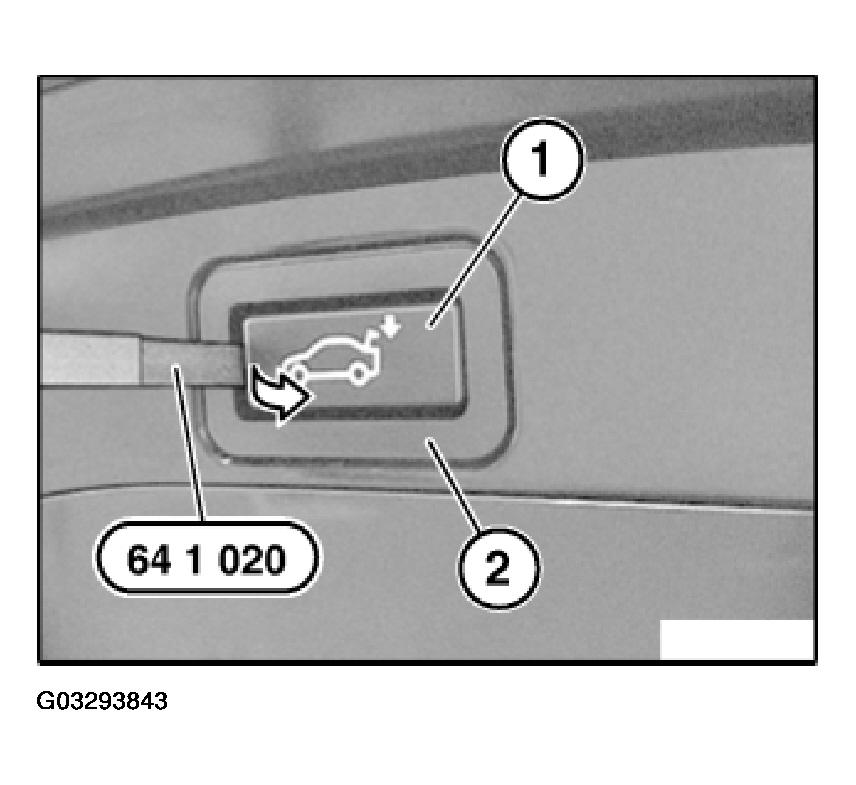

Fig 1: Automatic Rear Lid Actuation, Frame, Special Tool (64 1 020) And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.
