Engine And Transmission Tools (M04 06 14)

Publication date: 2014-08-01
Reference number: M04 06 14

ENGINE AND TRANSMISSION TOOLS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI M04 06 14, Date of Issue: August 2014

MINI:	F56 (Cooper, Cooper S)
GROUP:	Tools and Equipment

Engine and Transmission Tools

Distribution of the following tools will be through the Automatic Tool Shipment Program.

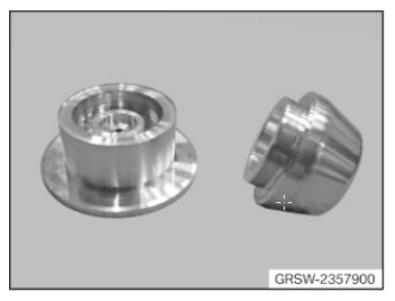

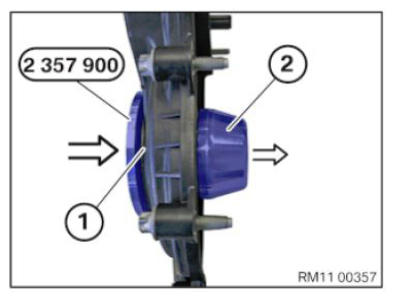

Front Radial Shaft Seal Installer

B38 Engine

Order P/N 83 30 2 357 900

Used to properly install the front radial shaft seal in the timing case cover.
For complete repair information on this tool, refer to ISTA Repair Manual section 11 14 200.

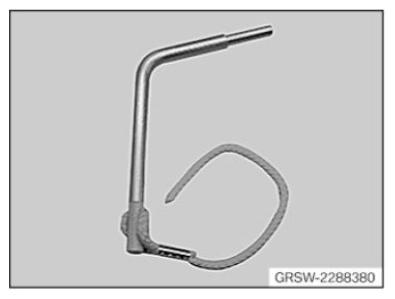

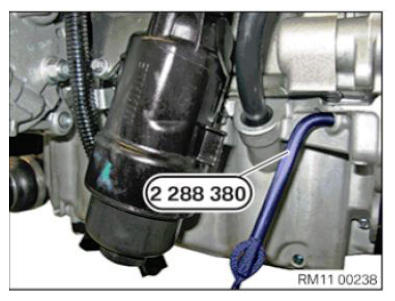

Camshaft Locking Pin

B38/B48 Engines

Order P/N 83 30 2 288 380

The locking pin is used to lock cylinder #1 at top dead center to check the camshaft timing.
For complete repair information on this tool, refer to ISTA Repair Manual section 11 31 005.

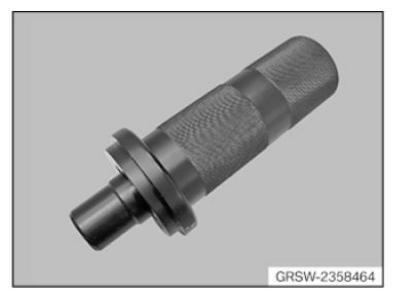

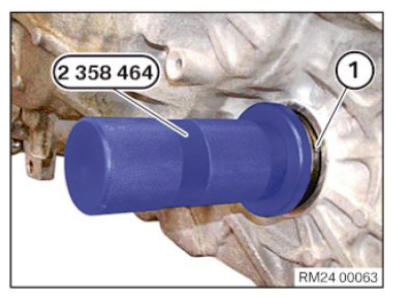

Radial Shaft Seal Installer

Models with automatic transmission

Order P/N 83 30 2 358 464

Used to install the left radial shaft seal on the differential.
For complete repair information on this tool, refer to ISTA Repair Manual section 24 21 221.

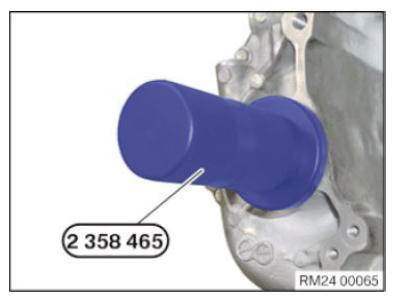

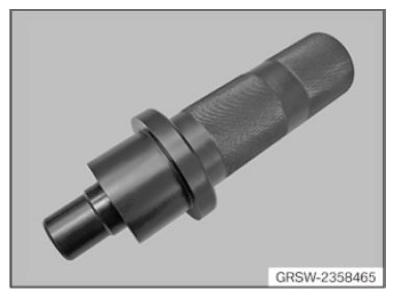

Radial Shaft Seal Installer

Models with automatic transmission

Order P/N 83 30 2 358 465

Used to install the right radial shaft seal on the differential.
For complete repair information on this tool, refer to ISTA Repair Manual section 24 31 221.

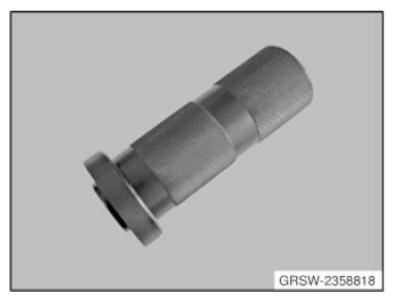

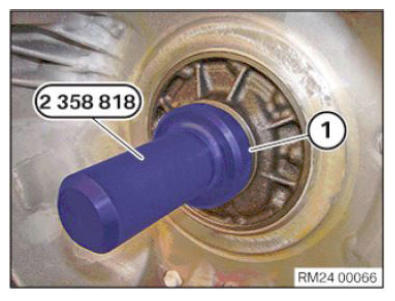

Radial Shaft Seal Installer

Models with automatic transmission

Order P/N 83 30 2 358 818

Used to install the radial shaft seal on the driveshaft.
For complete repair information on this tool, refer to ISTA Repair Manual section 24 21 516.

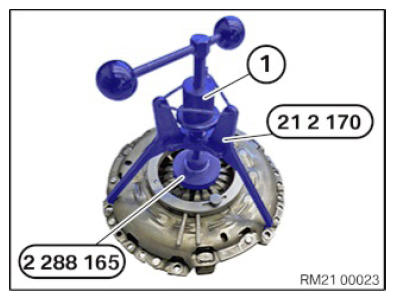

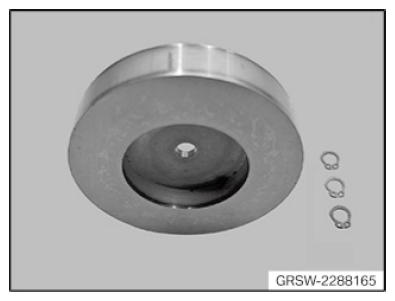

Clutch Pressure Piece Adjustment Tool

Models with manual transmission

Order P/N 83 30 2 288 165

The pressure piece is used for all pressure plates.
Permanently mount the pressure piece to the self-adjusting clutch tool 83 30 0 493 839 (212 270).
For complete repair information on this tool, refer to ISTA Repair Manual section 21 21 500.

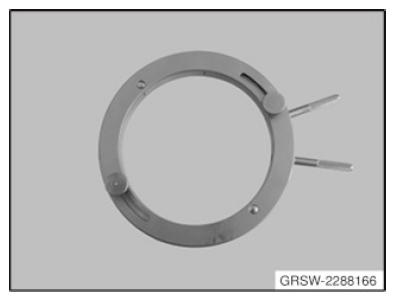

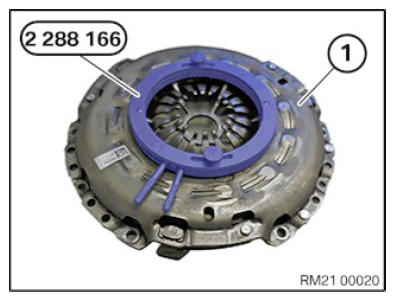

SAC Reset Ring

Models with manual transmission

Order P/N 83 30 2 288 166

The reset ring is used to reset the SAC clutch.
For complete repair information on this tool, refer to ISTA Repair Manual section 21 21 500.

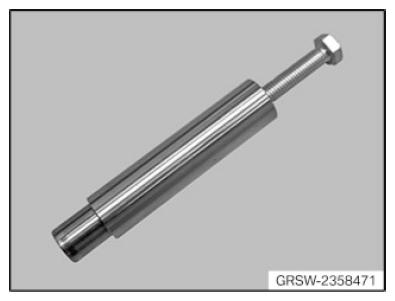

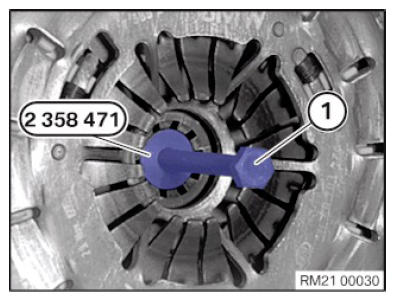

Clutch Disk Alignment Tool

Models with manual transmission

Order P/N 83 30 2 358 471

The SAC centering tool is used to center the SAC clutch during installation.
For complete repair information on this tool, refer to ISTA Repair Manual section 21 21 500.
