Engine Tools (B38, B48) (M04 01 15)

ENGINE TOOLS (B38, B48)

TECHNICAL SERVICE BULLETIN

SUBJECT

Engine Tools (B38, B48)

SITUATION

Distribution of the following tools will be through the Automatic Tool Shipment Program. Additional tools may be ordered through your Regional Distribution Center (RDC).

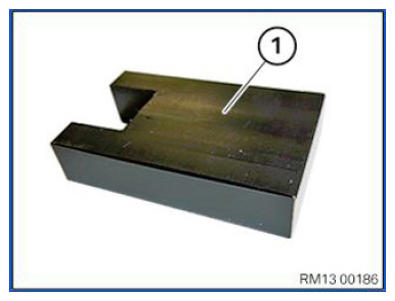

Distance Gauge

B38 and B48 Engines

Order P/N 83 30 2 358 022

• The distance gauge is used to properly align the injector during installation.

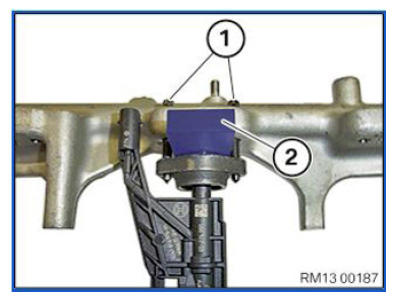

• Tighten the injector screws (1) equally by hand until the distance gauge (2) rests against the retaining bridge.
• For complete repair information on this tool, refer to ISTA Repair Manual section 13 53 318.

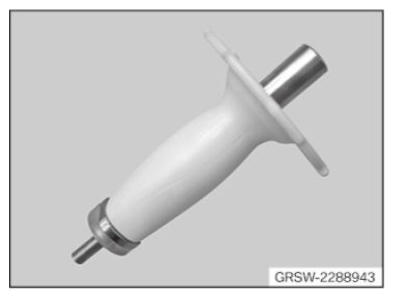

Striking Tool

B38 Engine

Order P/N 83 30 2 288 943

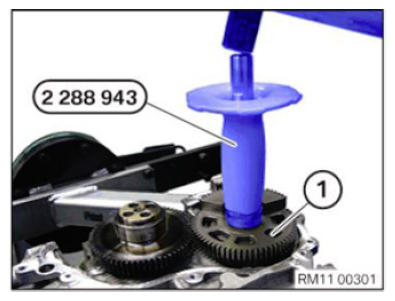

• The striking tool is used to remove the counterbalance shaft ring gear.
• For complete repair information on this tool, refer to ISTA Repair Manual section 11 27 020.

Distribution of the following tool will not be through the Automatic Tool Shipment Program. Tools may be ordered through your Regional Distribution Center (RDC). All prices in this bulletin are introductory prices and are only valid at the time of initial publication.

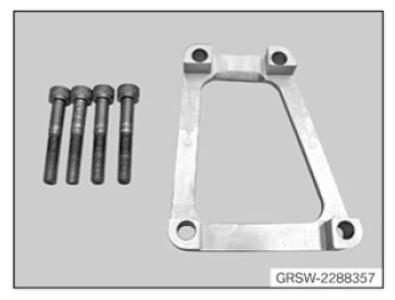

Adapter Plate

B38 and B48 Engines

Order P/N 83 30 2 288 357

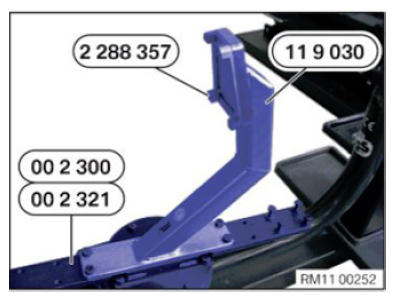

• The adapter plate is used to mount the engine on the engine stand.
• For complete repair information on this tool, refer to ISTA Repair Manual section 11 00 ...

SPECIAL TOOL WARRANTY

Terms of the Parts department Special Tool Warranty can be viewed and printed by following the path below.

• Go to TIS.
• Select "Tools and Equipment."
• Select "Special Tool Parts Warranty."
