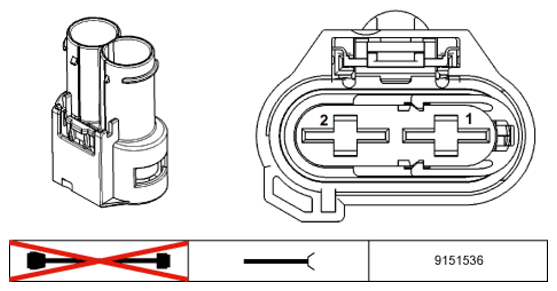

Electromechanical Power Steering A67*4B Connector End View
Courtesy of BMW OF NORTH AMERICA, INC. Pin Assignments At Plug Connector A67*4B
| Pin |
Type |
Description /Signal type |
Connection /Measuring information |
| 1 |
E |
Supply, terminal 30 |
Fuse F402 |
| 2 |
M |
Ground |
Ground point |
