Engine Oil Quick Reference Chart And Drain Plug Torque (M11 01 15)
Publication date: 2016-08-01Reference number: M11 01 15
ENGINE OIL QUICK REFERENCE CHART AND DRAIN PLUG TORQUE
TECHNICAL SERVICE BULLETIN
| MINI: | All Models |
| GROUP: | Engine |
INFORMATION

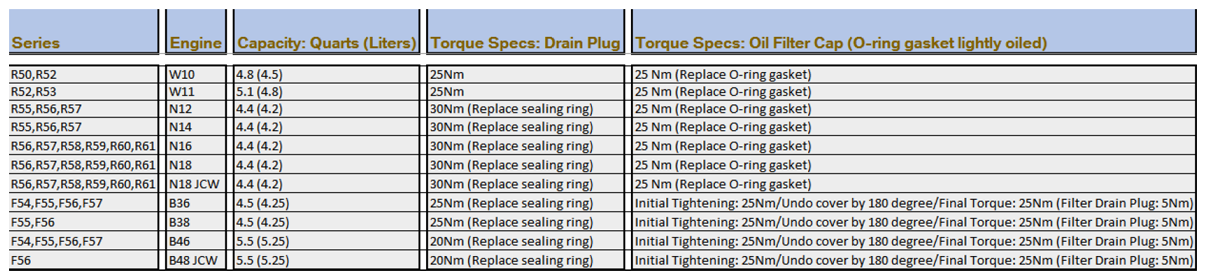

Refer to the attached quick reference chart describing the proper engine oil fill capacity and engine oil drain plug torque.
The same information is also contained in the applicable ISTA/D engine oil service repair instruction.
Model Year 2016 and 2017 and Newer Gasoline Engine Oil Quick Reference Chart
| Gasoline Engines | Oil Viscosity | Part Number | Container Description |
|---|---|---|---|
| B36, B46, B48 | 0W-20 LL14FE+ | 83 21 2 365 955 | 12 x 1 Liter case |
| N16, N18 | 0W-30 LL01FE | 83 21 2 365 953 | 12 x 1 Liter case |
Model Year 2012 to 2015 Gasoline Engine Oil Quick Reference Chart
| Gasoline Engines | Oil Viscosity | Part Number | Container Description |
|---|---|---|---|
| B36, B38, B46, B48, N16, N18 | 0W-30 LL01FE | 83 21 2 365 953 | 12 x 1 Liter case |
Model Year 2011 and Older Gasoline Engine Oil Quick Reference Chart
| Gasoline Engines | Oil Viscosity | Old Part Number | New Part Number | Container Description |
|---|---|---|---|---|
| W10, W11, N12, N14, N16, N18 | LL01 5W-30 | 07 51 0 143 829 | 83 21 2 365 947 | 12 x 1 liter case |
| LL01 5W-30 | 07 51 0 017 954 | 83 21 2 405 002 | 209 liter drum | |
| LL01 5W-30 | None | 83 21 2 405 085 | 625 liters |
WARRANTY INFORMATION
With the migration from "5W" weight to the "0W" weight engine oils, the "one-tenth" liter part numbers are not currently available. Until these "0W one-tenth" part numbers become available, when applicable, MINI USA will reimburse centers for engine oil at the "full-liter" quantities and we will allow for the rounding up to the nearest liter.
