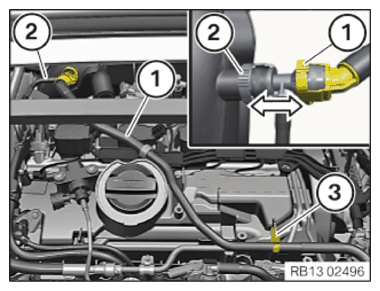

If installed: Partially install engine ventilation line
- Guide in the engine ventilation line (1)
and secure the clamps (3)
to the cylinder head hood.
- Connect engine ventilation line (1)
to the engine ventilation line (2)
and lock.
- Make sure that the engine ventilation line (1)
engages audibly.
