Installing the lid

CAUTION: Sharp-edge components.
Injury hazard!

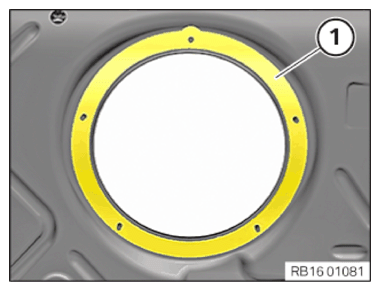

Check the seal (1) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

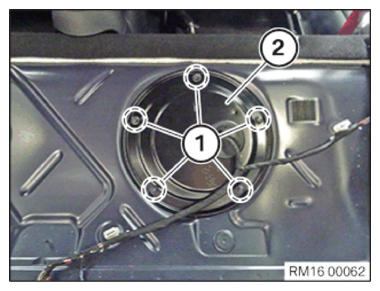

Install the lid (2).

Tighten nuts (1).

TIGHTENING TORQUES SPECIFICATION

Plastic nut with flange to body
Plastic nut	tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
