Perform EoS test
NOTE:
TECHNICAL INFORMATION
Please comply with instructions in Owner's Manual.
Please comply with instructions in Owner's Manual.
NOTE:
Before using the EoS tester, make sure the most up-to-date firmware is installed.

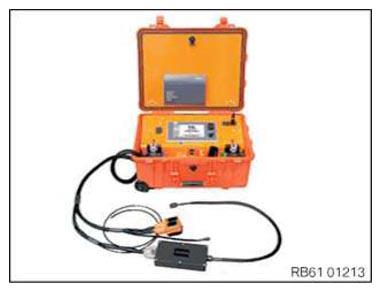

- Connect the special tool (EoS tester) 2 353 250 .
- If applicable, the following is required for the EoS tester adapter:
2 353 362
2 407 625
2 448 805
2 365 942
- Connect the connections of the special tool in the following sequence:
- Pressure connection
- high-voltage connection
- Power socket
- Start final test (EoS test).
- Note down the test result in ISTA or scan it into the data matrix code.
- Perform vehicle diagnosis.
