Base Ignition Timing Specifications

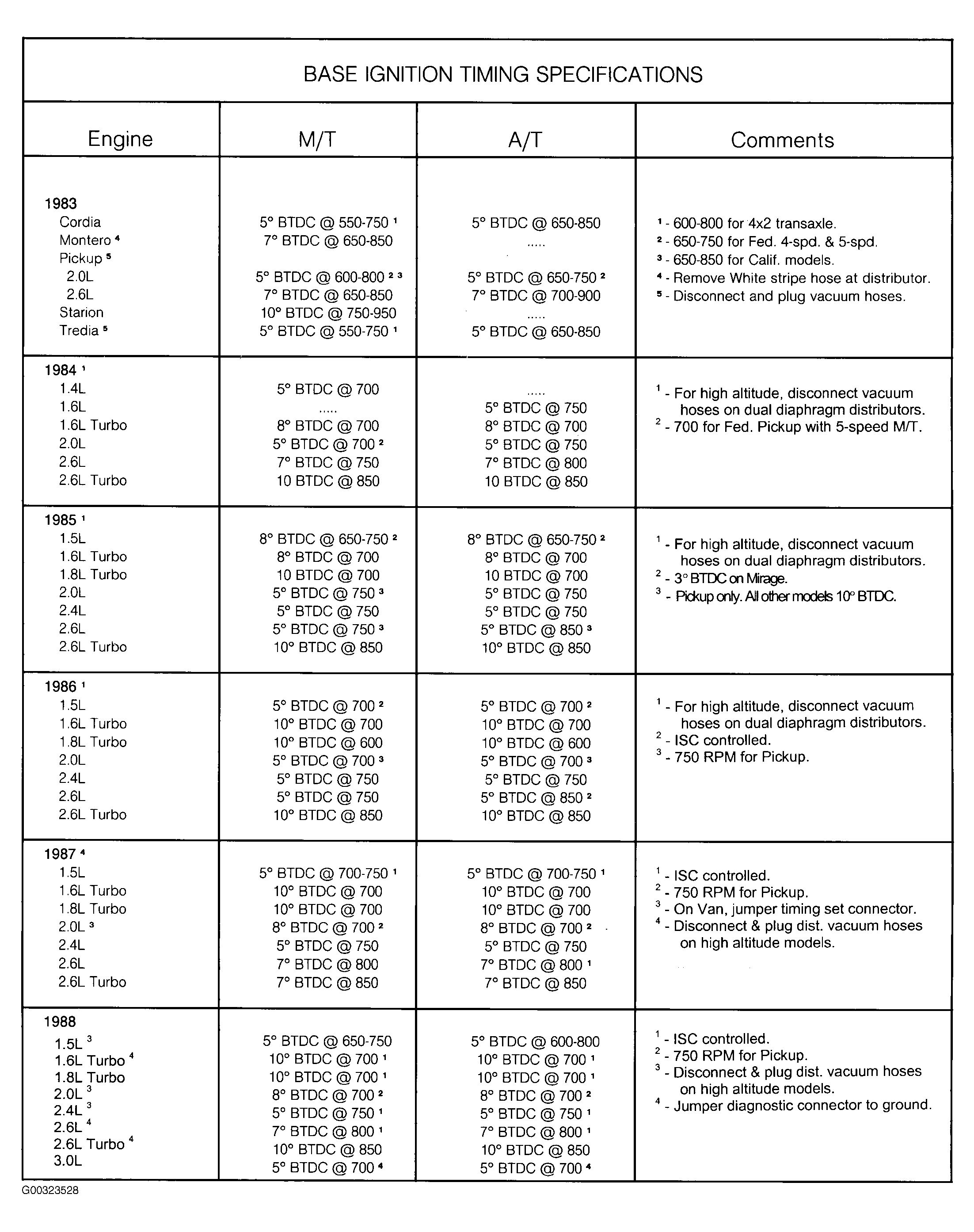

Fig 1:

G00323528

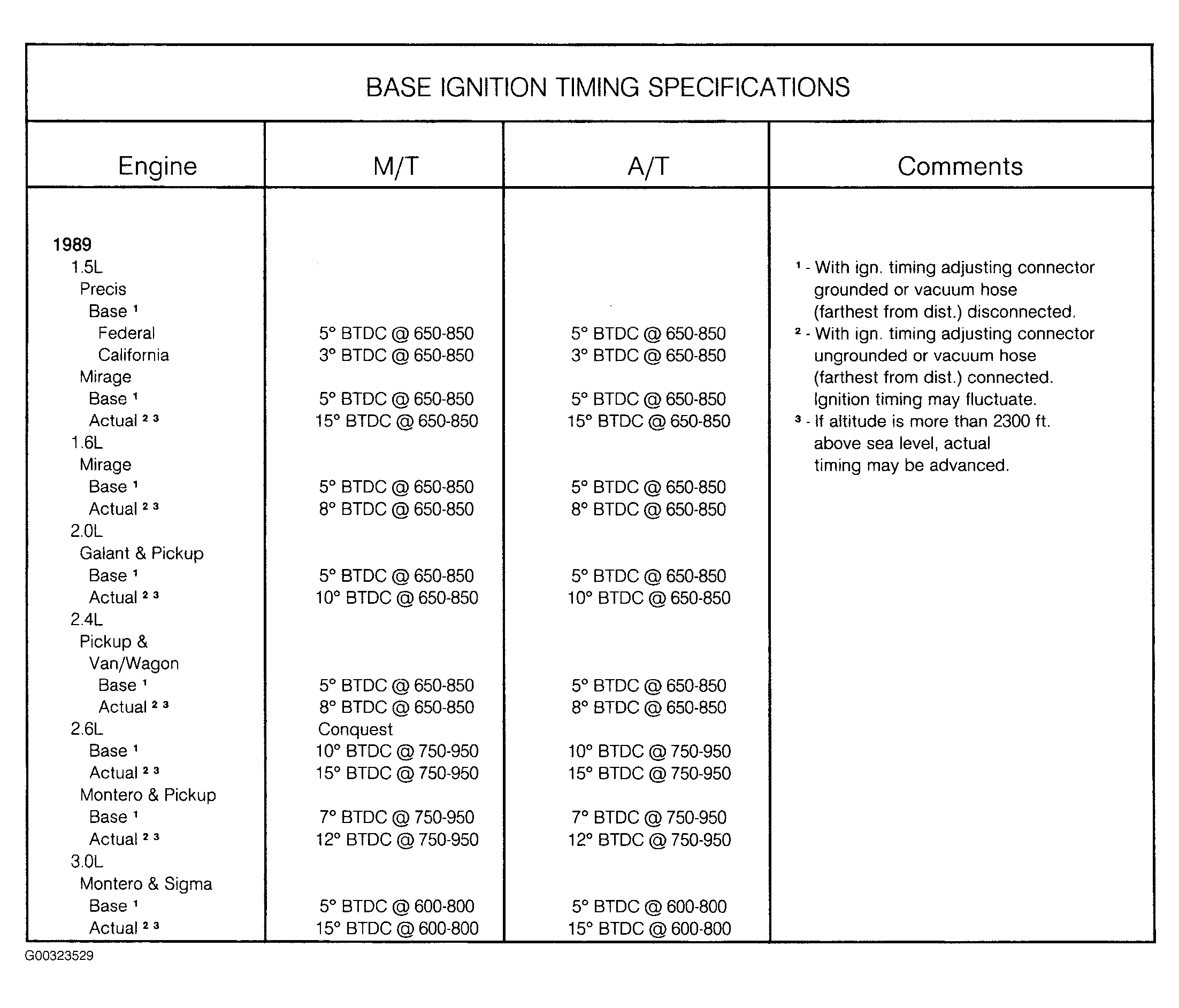

Fig 2:

G00323529

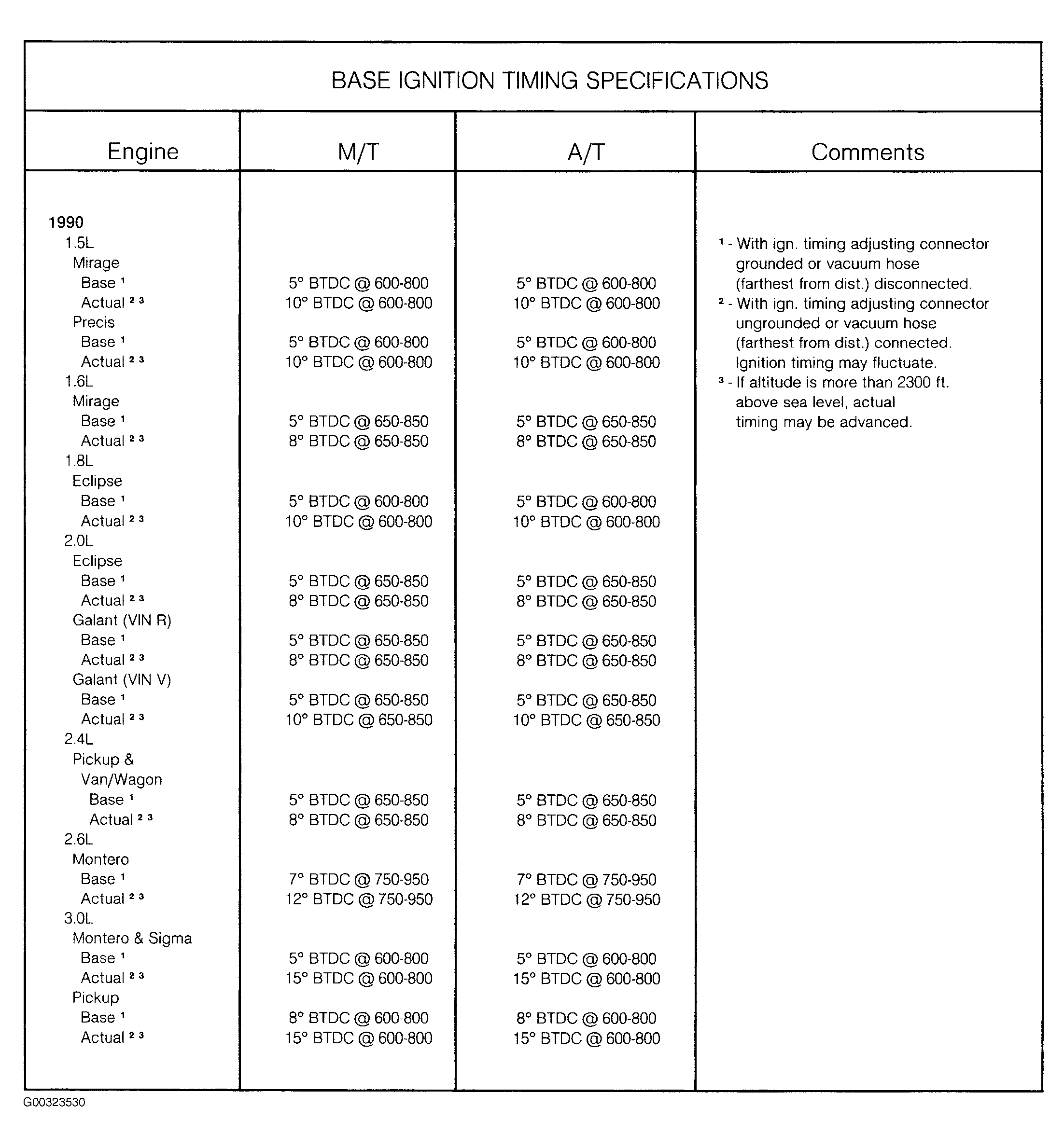

Fig 3:

G00323530

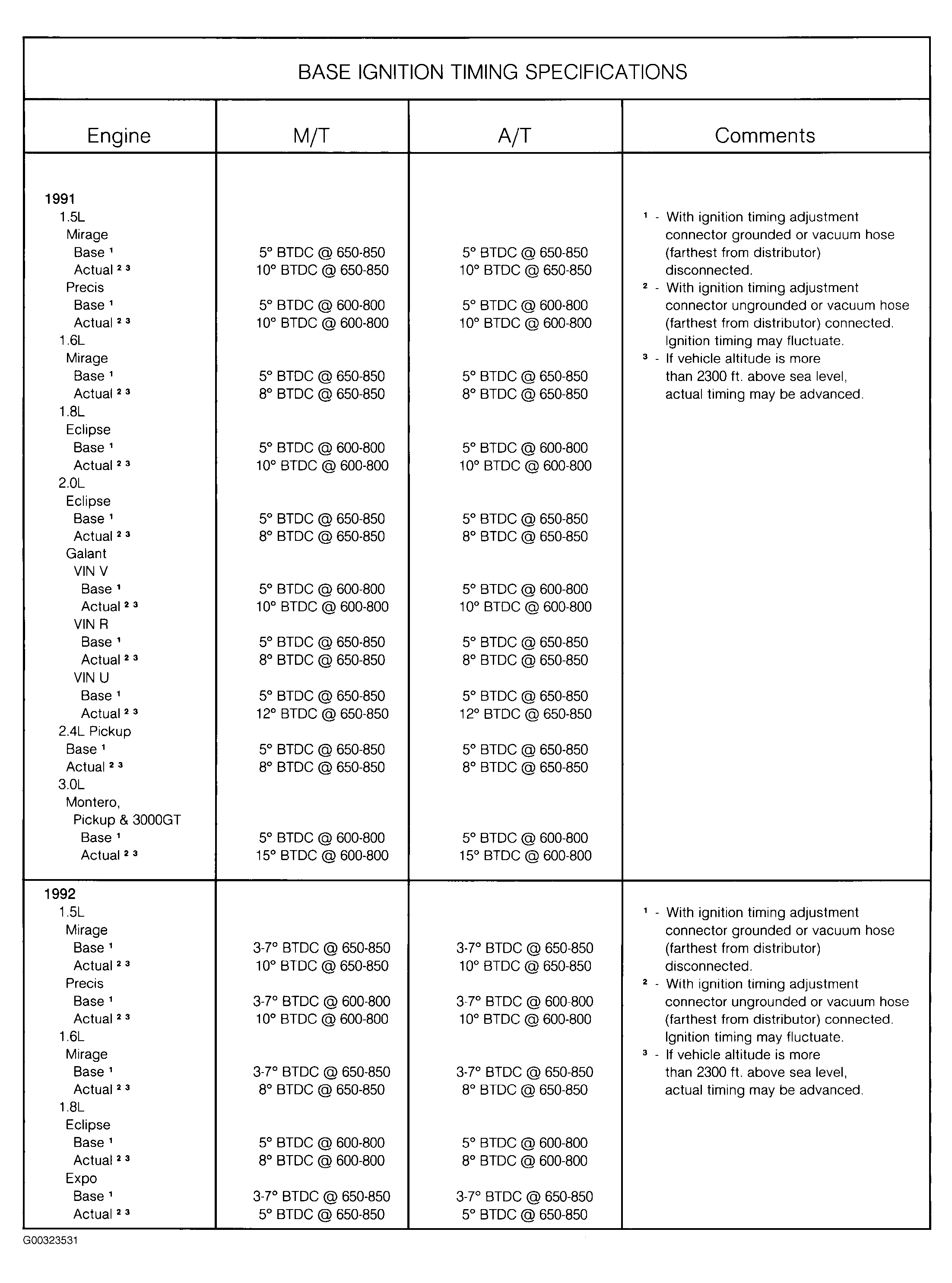

Fig 4:

G00323531

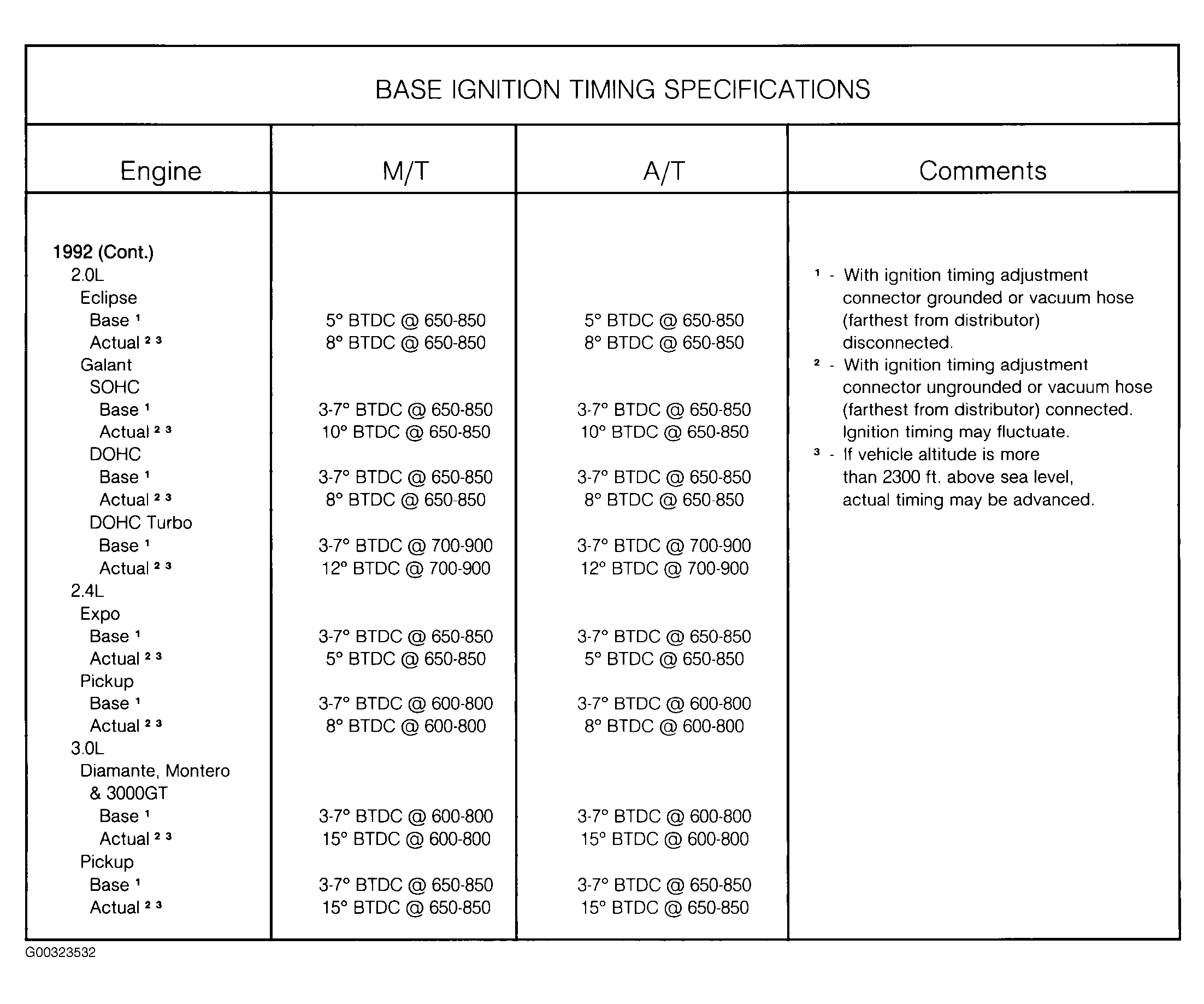

Fig 5:

G00323532

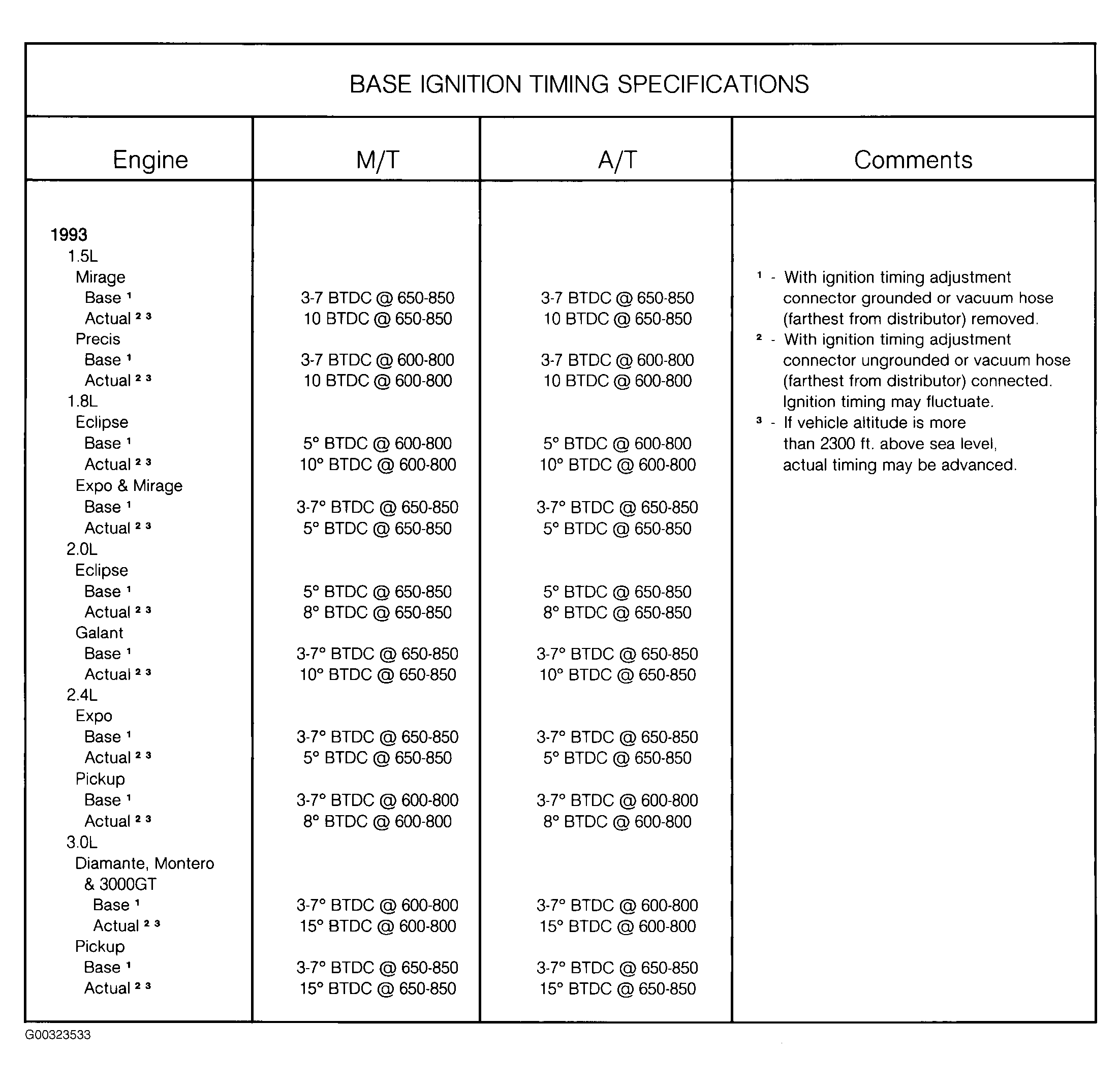

Fig 6:

G00323533

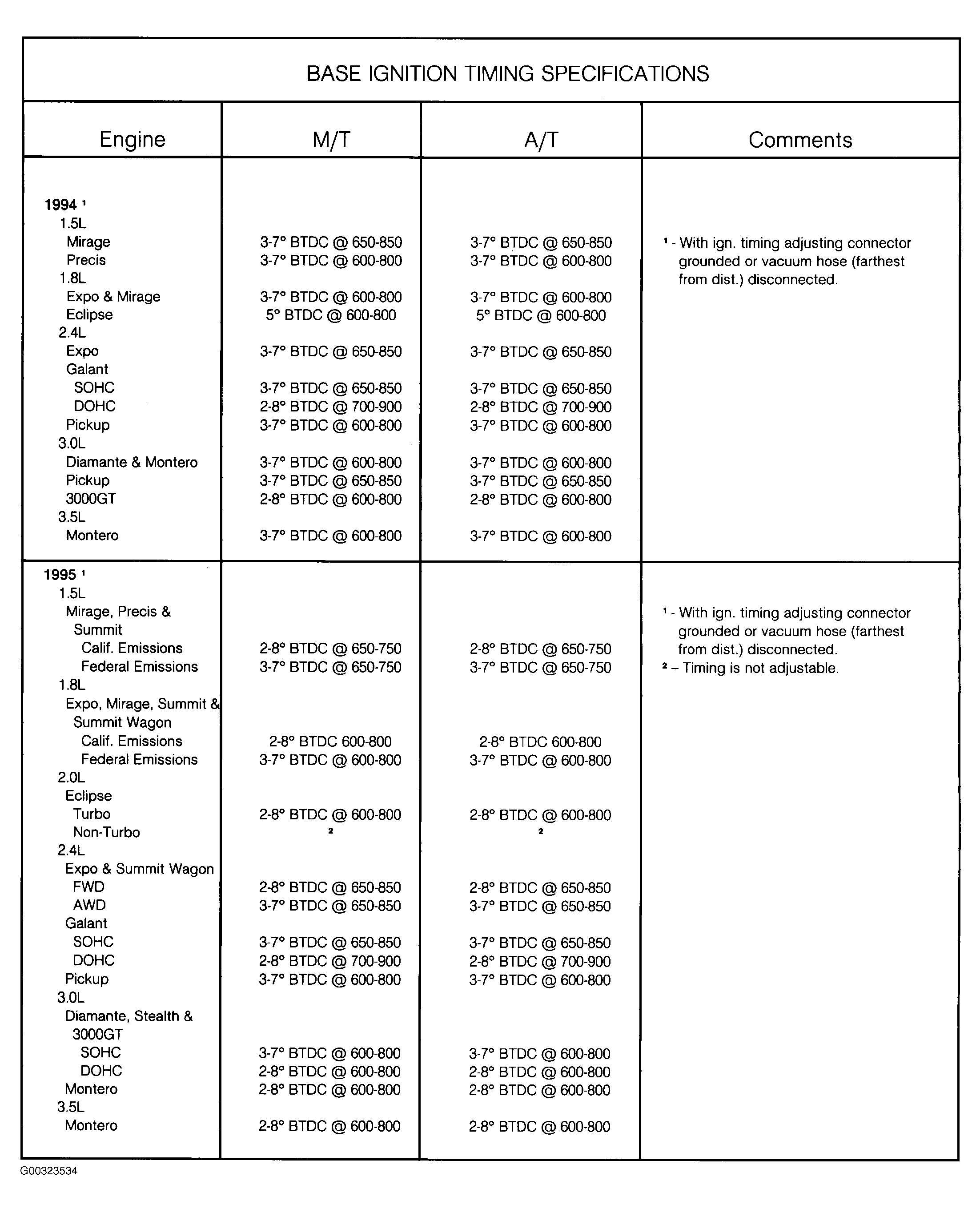

Fig 7:

G00323534

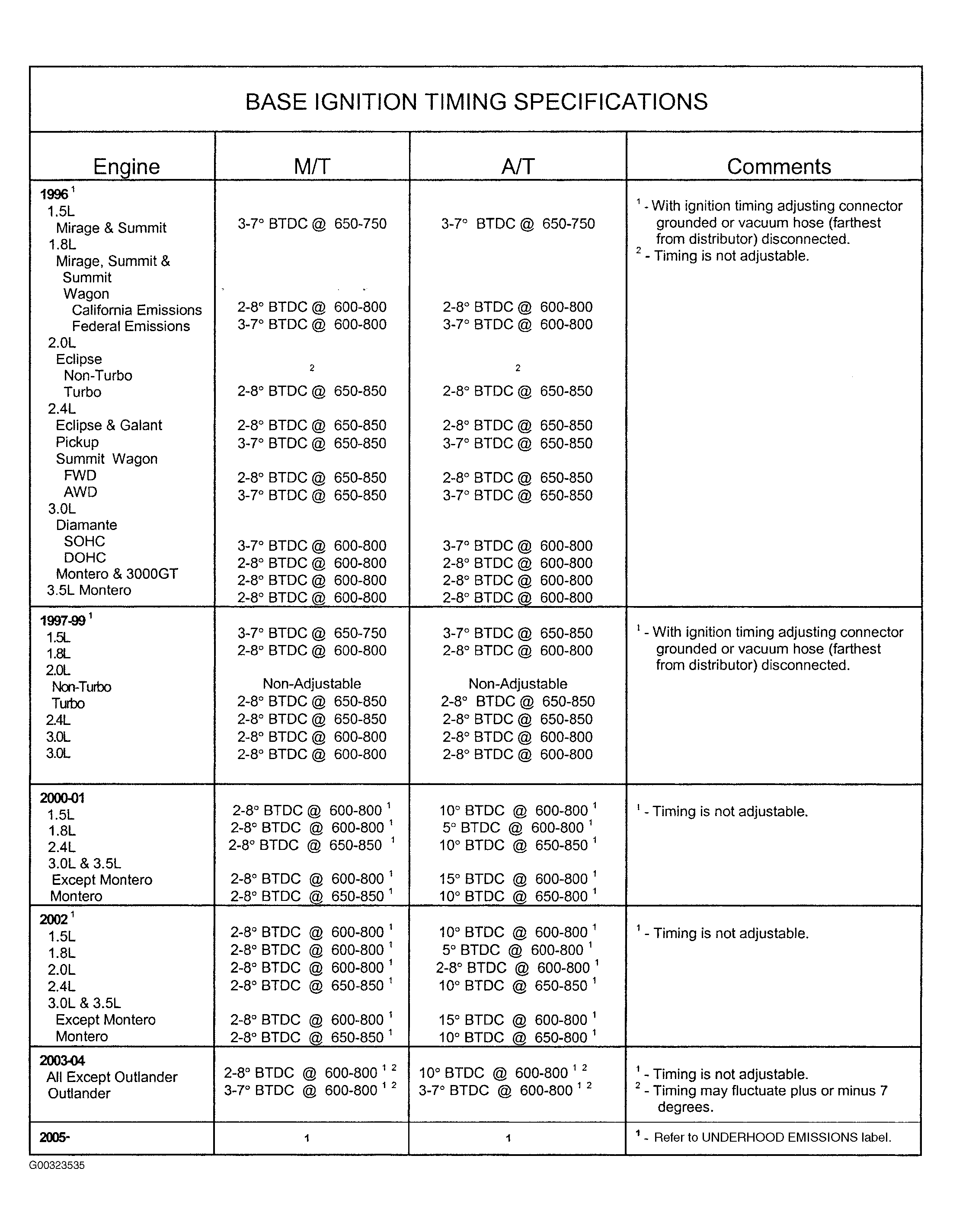

Fig 8:

G00323535
